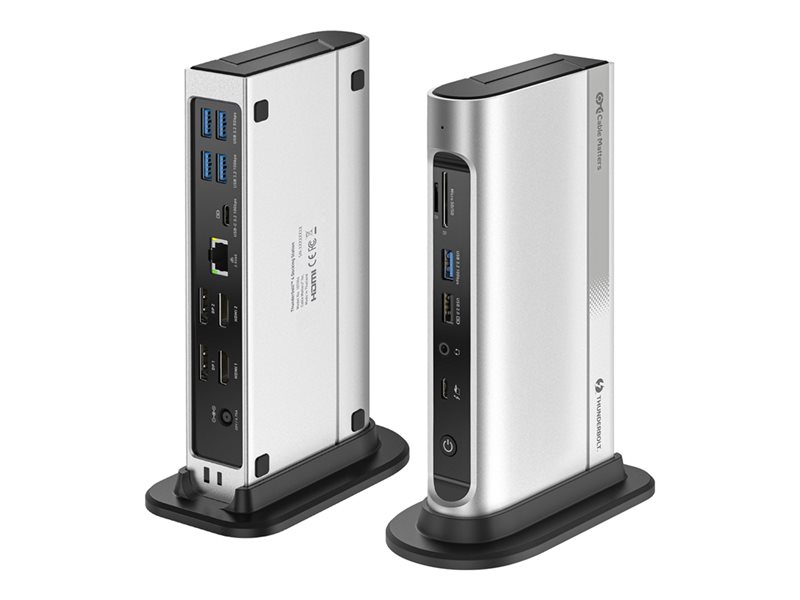

Docking station - USB-C / Thunderbolt 4 - 16-slot - 2 x HDMI, 2 x DP - 2.5GbE
| Main Specifications | |
|---|---|
| Product Description | Cable Matters 16-in-1 - docking station - USB-C / Thunderbolt 4 - 16-slot - 2 x HDMI, 2 x DP - 2.5GbE |
| Product Type | Docking station |
| Docking Interface | USB-C / Thunderbolt 4 |
| Video Interfaces | 2 x HDMI, 2 x DP |
| Dimensions (WxDxH) | 4.1 in x 7.7 in x 1.4 in |
| Weight | 22.04 oz |
| Networking | 2.5 Gigabit Ethernet |
| Power | Power adapter (20 V) |
| Manufacturer Warranty | 1-year limited warranty |
| General | |
| Product Type | Docking station |
| Width | 4.1 in |
| Depth | 7.7 in |
| Height | 1.4 in |
| Weight | 22.04 oz |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SD/microSD Memory Card |
| Interfaces | 3 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 2 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x USB-C / Thunderbolt 4 with Power Delivery (100 W) - 24 pin USB-C ¦ 1 x network - 2.5G Gigabit Ethernet - RJ-45 ¦ 1 x headset / headphones / microphone - 3.5mm audio jack ¦ 1 x USB 2.0 with Fast Charging - USB 2.0 A ¦ 1 x USB-C 3.2 Gen 2 with Power Delivery - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 1 x Thunderbolt 4 / USB-C cable - external |
| Features | Security lock slot (cable lock sold separately), 2 LED indicators |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Data Link Protocol | 2.5 Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Voltage Provided | 20 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video | |
| Max Resolution Details | 8K - 30 Hz (Dual Display) ¦ 4K - 60 Hz (Quad Display) |
| System Requirements | |
| OS Required | Apple macOS 10.13 or later, Microsoft Windows 10 or later |
