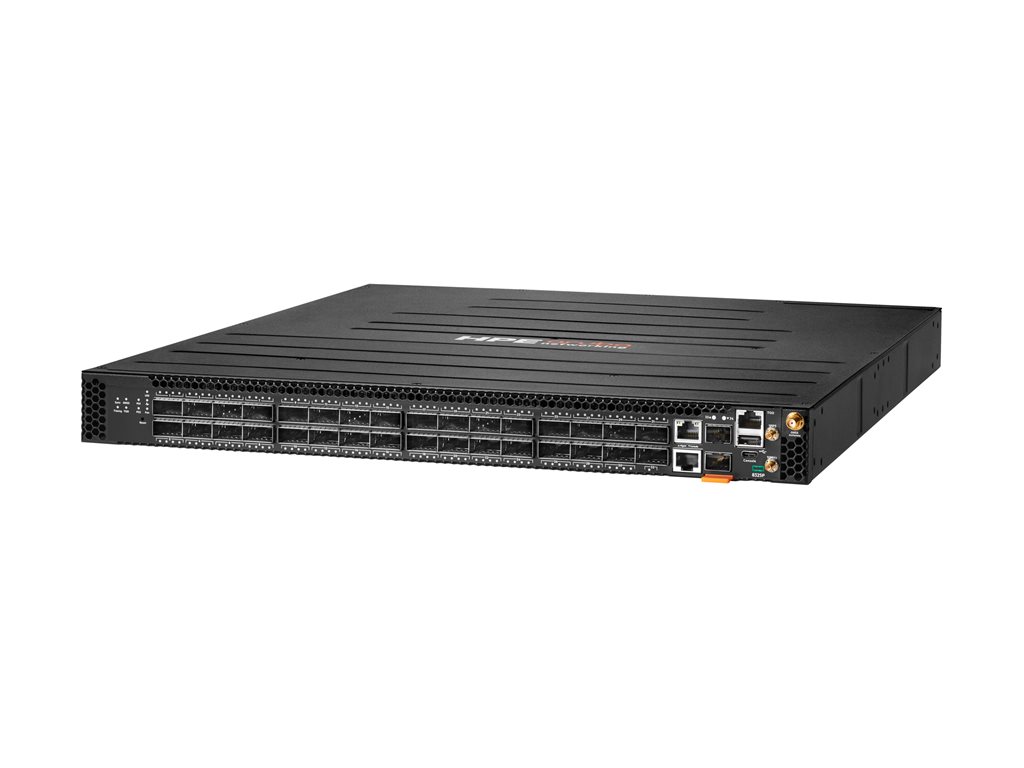

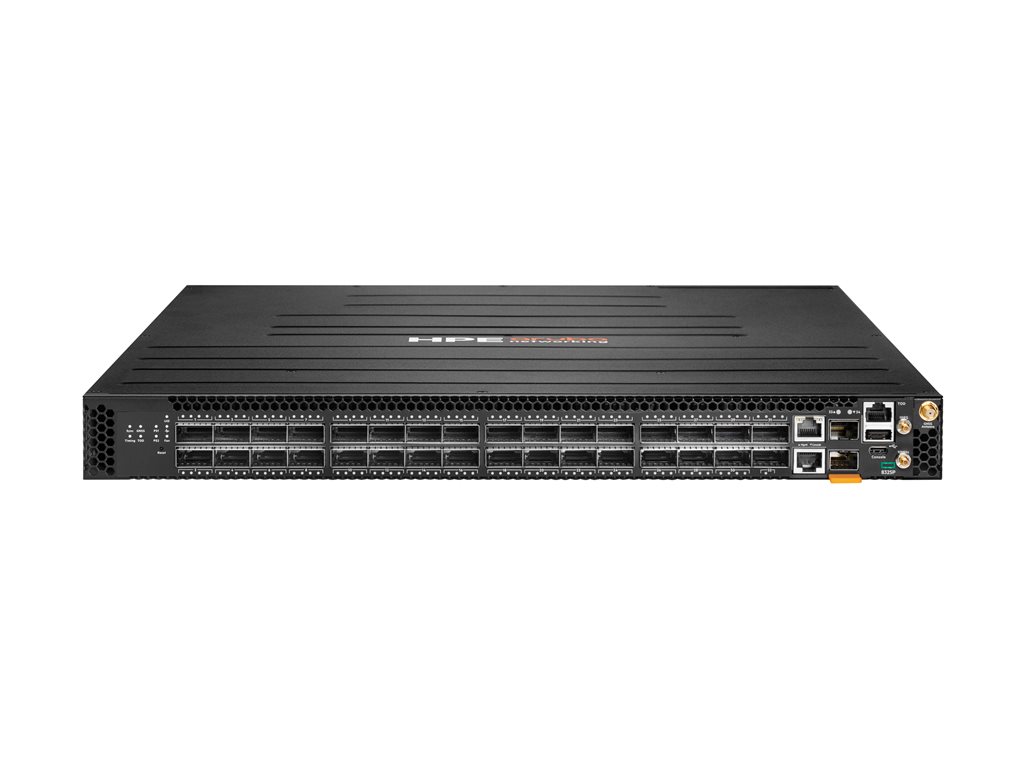

Spare Only - switch - horizontal surface mounting only - L3 - managed - 32 x 40 Gigabit / 100 Gigabit QSFP28 - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba Networking 8325P 32p QSFP28 40G/100G Switch - Spare Only - switch - horizontal surface mounting only - 32 ports - managed - rack-mountable |
| Device Type | Switch - 32 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 32 x 40 Gigabit / 100 Gigabit QSFP28 |
| Performance | Switching capacity: 6.4 Tbps ¦ Forwarding capacity: 2000 Mpps |
| Capacity | Packet buffer size: 32 MB |
| Jumbo Frame Support | 9KB |
| Routing Protocol | OSPF, BGP, BGP-4, EGP, VRRP, MLD, ECMP, PIM-SM, GRE, static IP routing, IGMP, IGMPv2, IGMPv3, OSPFv3, static IPv6 routing, policy-based routing (PBR), MSTP, RSTP, STP |
| Remote Management Protocol | SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SFTP, SSH, CLI, NTP |
| Features | OSPF, policy based routing, STP support, RSTP support, MSTP support, QoS, Jumbo Frames support, MLD snooping, sFlow, ACL support, IPv4 support, IPv6 support, LACP, UDLD, SP, DWRR, PIM, VTEP support, ToR, EoR |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3x |
| Power | AC 120/230 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.4 in x 22.2 in x 1.7 in |
| Weight | 20.5 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 32 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 32 x 40 Gigabit / 100 Gigabit QSFP28 |
| Performance | Switching capacity: 6.4 Tbps ¦ Forwarding capacity: 2000 Mpps |
| Capacity | Packet buffer size: 32 MB |
| Jumbo Frame Support | 9KB |
| Routing Protocol | OSPF, BGP, BGP-4, EGP, VRRP, MLD, ECMP, PIM-SM, GRE, static IP routing, IGMP, IGMPv2, IGMPv3, OSPFv3, static IPv6 routing, policy-based routing (PBR), MSTP, RSTP, STP |
| Remote Management Protocol | SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SFTP, SSH, CLI, NTP |
| Encryption Algorithm | FIPS 140-2 |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | OSPF, policy based routing, STP support, RSTP support, MSTP support, QoS, Jumbo Frames support, MLD snooping, sFlow, ACL support, IPv4 support, IPv6 support, LACP, UDLD, SP, DWRR, PIM, VTEP support, ToR, EoR |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3x |
| Processor | : 2.2 GHz |
| RAM | 16 GB |
| Flash Memory | 64 GB |
| Expansion / Connectivity | |
| Interfaces | 32 x 100Gbit/40Gbit LAN QSFP28 ¦ 1 x serial RJ-45 ¦ 1 x USB-C console ¦ 1 x management RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | 2-Post Rack Kit |
| Compliant Standards | EN/IEC 62328-1 Second Edition, EN/IEC 62328-1 Third Edition, UL 62368-1 Third Edition, CSA C22.2 No. 62368-1:19 Third Edition, EN 55032:2015, CISPR 32 Class A, FCC CFR 47 Part 15 Class A, VCCI-CISPR 32 Class A, CNS 15936 Class A, KS C 9832 Class A, AS/NZS CISPR 32 Class A, EN 55035, CISPR 35, KS C 9835, ETSI EN 301 489-1, ETSI EN 301 489-19, TEC/EMI/TEL-001/FEB-09, TEC-SD-DD-EMC-221-05-OCT-16, SR-3580 NEBS Level 3, GR-1089-CORE, EMC, GR-63-CORE, ETSI EN 300 386 Class A, ETSI EN 300 019-2-1 Class 1.2, ETSI EN 300 019-2-2 Class 2.3, ETSI EN 300 019-2-3 Class 3.1, ETSI EN 300 019-2-3 Class 3.1E, ETSI 300 132, ETSI ETS 300 753, EN 60825-1:2014, IEC 60825-1:2014, Laser Class 1 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 0 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 22.2 in |
| Height | 1.7 in |
| Weight | 20.5 lbs |
