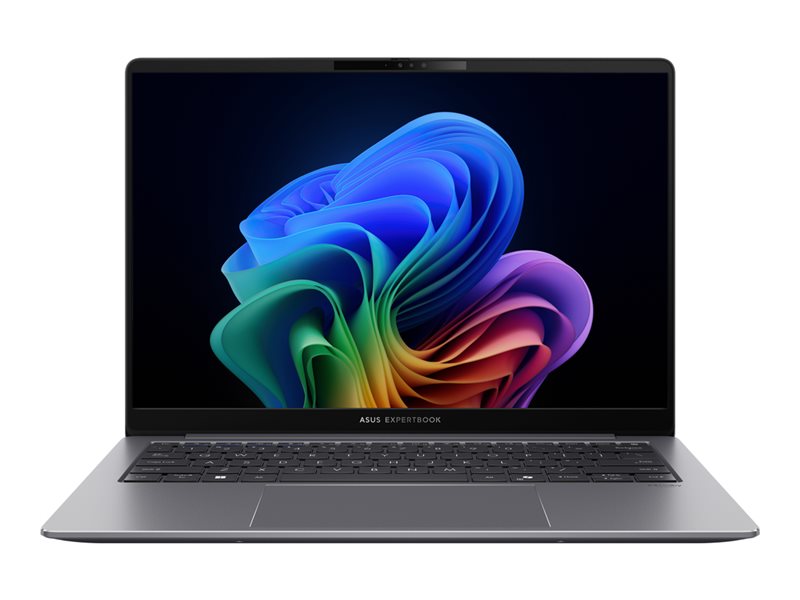

Intel Core Ultra 5 - 226V / up to 4.5 GHz - Win 11 Home - Arc Graphics 130V - 16 GB RAM - 512 GB SSD NVMe - 14" 2560 x 1600 (WQXGA) - Wi-Fi 6E, Bluetooth - misty gray - with 1 year Domestic ADP with product registration
| Main Specifications | |
|---|---|
| Product Description | ASUS ExpertBook P5 P5405CSA-DH54 - 14" - Intel Core Ultra 5 - 226V - 16 GB RAM - 512 GB SSD |
| Product Type | Notebook |
| Operating System | Win 11 Home |
| Processor | Intel Core Ultra 5 (Series 2) - 226V / 1.6 GHz, up to 4.5 GHz / 8 MB Cache |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 40 TOPS |
| Memory | 16 GB LPDDR5X SDRAM (provided memory is soldered) |
| Storage | 512 GB SSD - NVMe |
| Display | 14" 2560 x 1600 / WQXGA |
| Graphics | Intel Arc Graphics 130V - up to 53 TOPS |
| Keyboard Backlight | Yes |
| Integrated Webcam | Yes |
| Networking | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Battery | 3-cell |
| Security | Trusted Platform Module (TPM) Security Chip, fingerprint reader |
| Color | Misty gray |
| Dimensions (WxDxH) | 12.3 in x 8.8 in x 0.6 in |
| Weight | 2.84 lbs |
| Environmental Standards | TCO Certified Notebooks 9, TCO Certified, generation 10, for notebooks EPEAT Gold |
| Manufacturer Warranty | Limited warranty - 3 years ¦ Accidental damage coverage - 1 year |
| Bundled Services | 1 year Domestic ADP with product registration |
| General | |
| Product Type | Notebook |
| Operating System | Windows 11 Home |
| Memory | |
| RAM | 16 GB (provided memory is soldered) |
| Technology | LPDDR5X SDRAM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Accidental damage coverage - 1 year |
| Bundled Services | 1 year Domestic ADP with product registration |
| Miscellaneous | |
| Color | Misty gray |
| Case Material | Aluminum |
| Security | Trusted Platform Module (TPM) Security Chip, fingerprint reader |
| Features | MIL-STD-810H tested, ASUS ExpertCool design |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington nano security slot |
| Included Accessories | USB-C power adapter |
| Storage | |
| Main Storage | 512 GB SSD M.2 2280 PCIe 4.0 - NVM Express (NVMe) |
| Battery | |
| Technology | 3-cell lithium ion |
| Capacity | 63 Wh |
| Display | |
| Type | 14" |
| Resolution | 2560 x 1600 (WQXGA) |
| Widescreen | Yes |
| Image Aspect Ratio | 16:10 |
| Image Brightness | 400 cd/m² |
| Color Gamut | 100% sRGB |
| Features | Anti-glare, WideView, 90% screen-to-body ratio |
| Communications | |
| Wireless | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Features | Dual stream (2x2) |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 12.3 in x 8.8 in x 0.6 in |
| Weight | 2.84 lbs |
| Processor / Chipset | |
| CPU | Intel Core Ultra 5 (Series 2) 226V / 1.6 GHz |
| Max Turbo Speed | 4.5 GHz |
| Number of Cores | 8-core |
| Cache | 8 MB |
| Features | Intel Smart Cache |
| Audio & Video | |
| Graphics Processor | Intel Arc Graphics 130V - up to 53 TOPS |
| Camera | Yes - 1080p |
| Camera Features | Privacy shutter, IR camera, Windows Hello |
| Sound | Speaker, array microphone |
| Compliant Standards | Dolby Atmos |
| Audio Features | Output: Smart Amplification technology; Input: AI noise cancelling |
| Input | |
| Type | Keyboard, touchpad |
| Keyboard Backlight | Yes |
| Features | Spill-resistant, chiclet keyboard, 1.5mm travel distance |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 65 watt, 20 V, 3.25 A |
| Connections & Expansion | |
| Slots | 1 x M.2 (PCI Express 4.0 x4) (1 available) |
| Interfaces Details | 2 x USB 3.2 Gen 2 ¦ 2 x USB4 (supports Thunderbolt 4, DisplayPort Alt Mode) (Power Delivery) ¦ HDMI ¦ Headphone/microphone combo jack |
| Sustainability Information | |
| TCO Certified | - TCO Certified Notebooks 9, TCO Certified, generation 10, for notebooks |
| EPEAT Compliant | EPEAT Gold |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 40 TOPS |
| Total Processor Performance Up To (TOPS) | 97 TOPS |
| AI Datatype Support on NPU | INT8 |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Windows Studio Effects Support | Yes |
