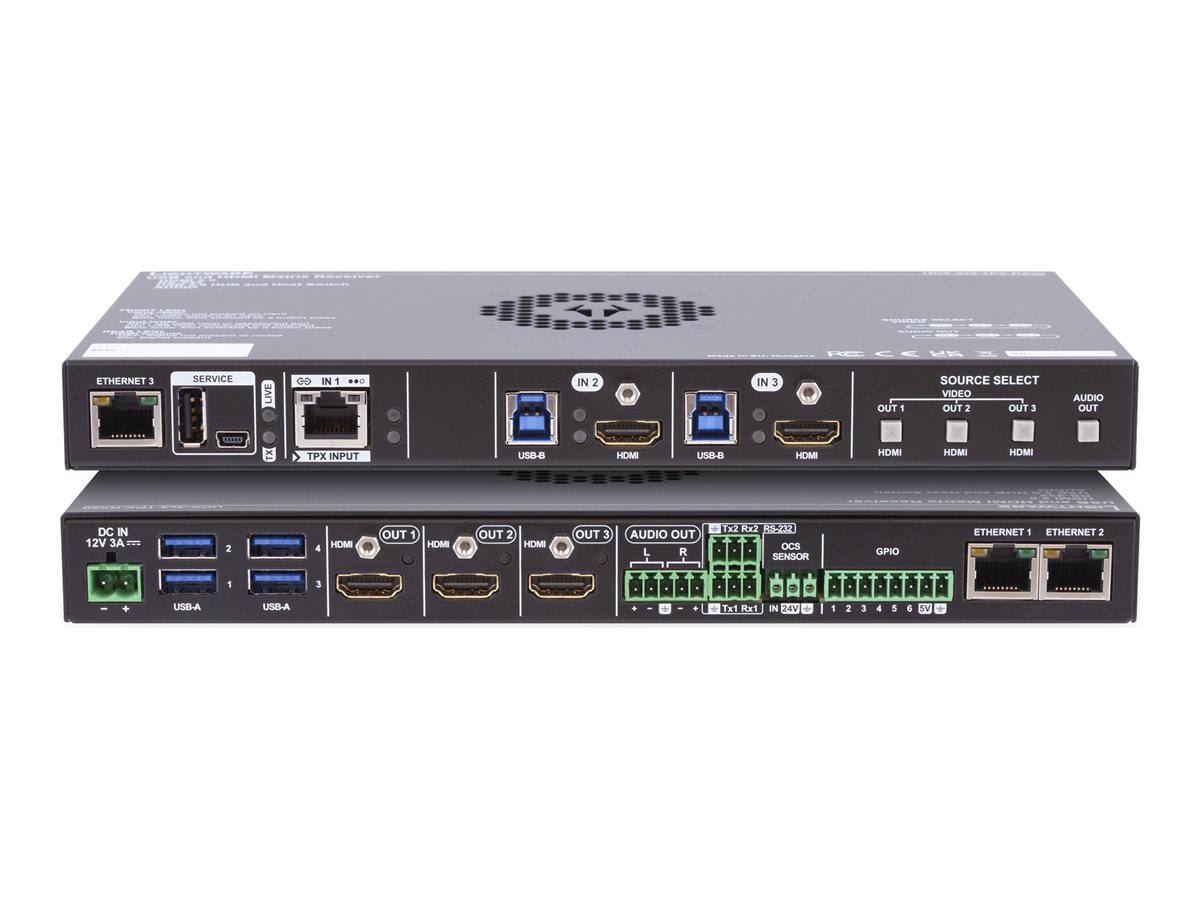

Video/audio/USB switch - SDVoE-based point-to-point HDMI smart matrix switcher receiver with LARA control - 3 x 3 - managed - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Lightware UCX-3x3-TPX-RX20 - video/audio/USB switch - SDVoE-based point-to-point HDMI smart matrix switcher receiver with LARA control - 3 x 3 - managed - rack-mountable |
| Device Type | Video/audio/USB switch - 3 x 3 - managed |
| Enclosure Type | Rack-mountable |
| Subtype | HDMI |
| Remote Management Protocol | SNMP 3, Syslog, TCP/IP, UDP/IP |
| Features | Passive cooling, steel housing, Dolby TrueHD support, DTS-HD Master Audio support, PCM 7.1 support, 5K resolution support |
| Compliant Standards | DVI 1.0, HDCP 2.3 |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 9.7 in x 5.5 in x 1 in |
| Weight | 33.01 oz |
| Localization | Europe, United Kingdom, Japan, United States, Australia, New Zealand |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/USB switch - 3 x 3 - managed |
| Enclosure Type | Rack-mountable |
| Subtype | HDMI |
| Remote Management Protocol | SNMP 3, Syslog, TCP/IP, UDP/IP |
| Encryption Algorithm | TLS |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Features | Passive cooling, steel housing, Dolby TrueHD support, DTS-HD Master Audio support, PCM 7.1 support, 5K resolution support |
| Compliant Standards | DVI 1.0, HDCP 2.3 |
| Expansion / Connectivity | |
| Interfaces | 3 x HDMI output screwable ¦ 1 x 10GBase-T RJ-45 ¦ 2 x HDMI input screwable ¦ 1 x audio output 5 pin Phoenix ¦ 1 x serial (RS-232) 3 pin Phoenix ¦ 1 x LAN RJ-45 ¦ 1 x mini-USB Type B service ¦ 1 x USB Type A reserved for future use ¦ 2 x USB 3.1 Type B ¦ 4 x USB 3.1 Type A ¦ 1 x sensor 3 pin Phoenix ¦ 1 x GPIO 8 pin Phoenix |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | UKCA, EN 62368-1:2014, EN 55032:2015, EN 55035:2017, EN 63000:2018 |
| Localization | Europe, United Kingdom, Japan, United States, Australia, New Zealand |
| Power | |
| Power Device | External power adapter |
| Power Provided | 80 watt - DC 12 V - 2 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 9 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 9.7 in |
| Depth | 5.5 in |
| Height | 1 in |
| Weight | 33.01 oz |
