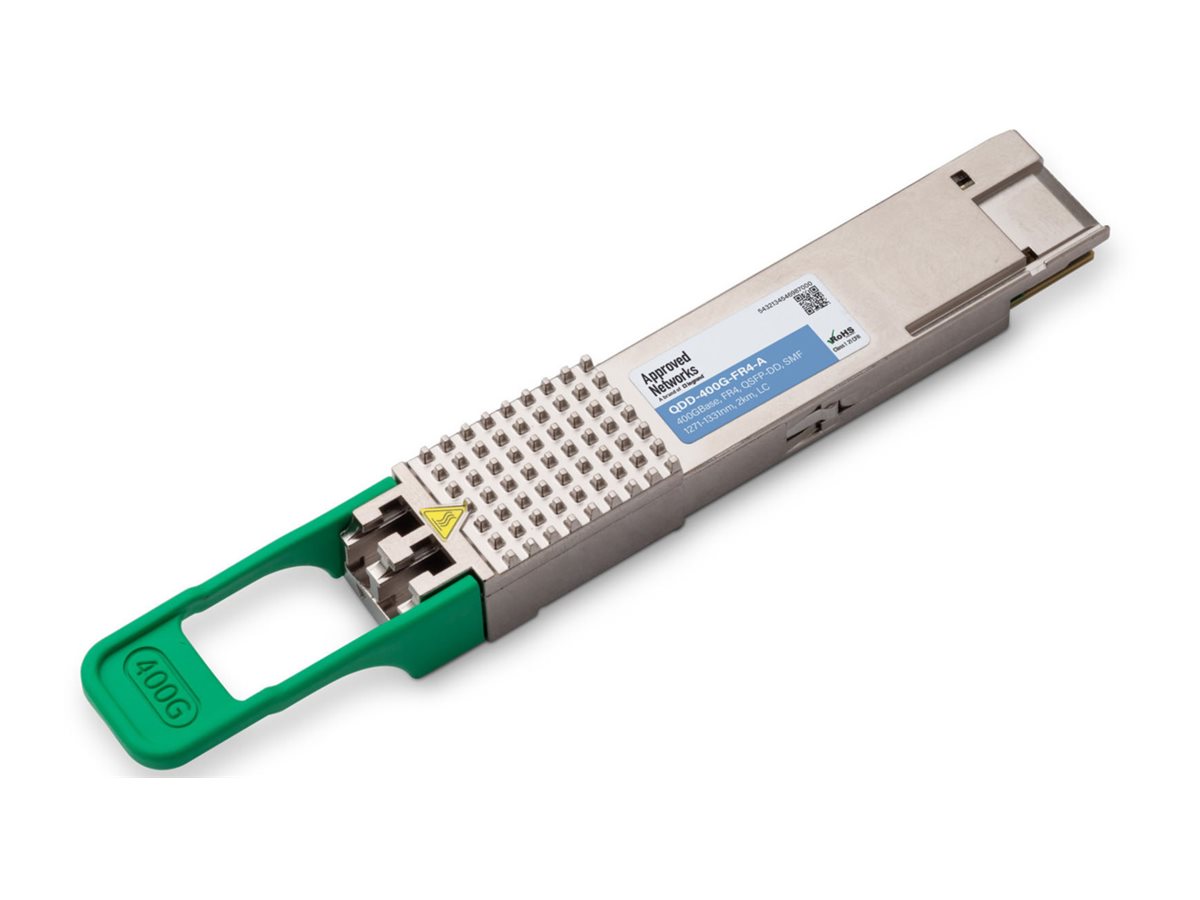

QSFP-DD transceiver module (equivalent to: Arista QDD-400G-FR4) - 400GbE - 400GBase-FR4 - LC single-mode - up to 1.2 miles - 1271-1331 nm
| Main Specifications | |
|---|---|
| Product Description | Approved Networks - QSFP-DD transceiver module - 400GbE |
| Device Type | QSFP-DD transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 400GBase-FR4 |
| Data Transfer Rate | 425 Gbps |
| Optical Wave Length | 1271-1331 nm |
| Data Link Protocol | 400GbE |
| Max Transfer Distance | 1.2 miles |
| OEM Manufacturer Equivalent Part Number | Arista QDD-400G-FR4 |
| Dimensions (WxDxH) | 0.7 in x 5 in x 0.5 in |
| Weight | 0.4 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | QSFP-DD transceiver module |
| Form Factor | Plug-in module |
| Color | Silver |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 400GBase-FR4 - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | ROHS Directive 2011/65/EU |
| OEM Manufacturer Equivalent Part Number | Arista QDD-400G-FR4 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 400GBase-FR4 |
| Data Link Protocol | 400GbE |
| Data Transfer Rate | 425 Gbps |
| Optical Wave Length | 1271-1331 nm |
| Max Transfer Distance | 1.2 miles |
| Features | Digital Diagnostics Monitoring (DDM), Digital Optical Monitoring (DOM) support, transmit min -2.9 dBm / max 4 dBm, -6.6 dBm sensitivity |
| Compliant Standards | IEEE 802.3ba |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 5 in |
| Height | 0.5 in |
| Weight | 0.4 oz |
