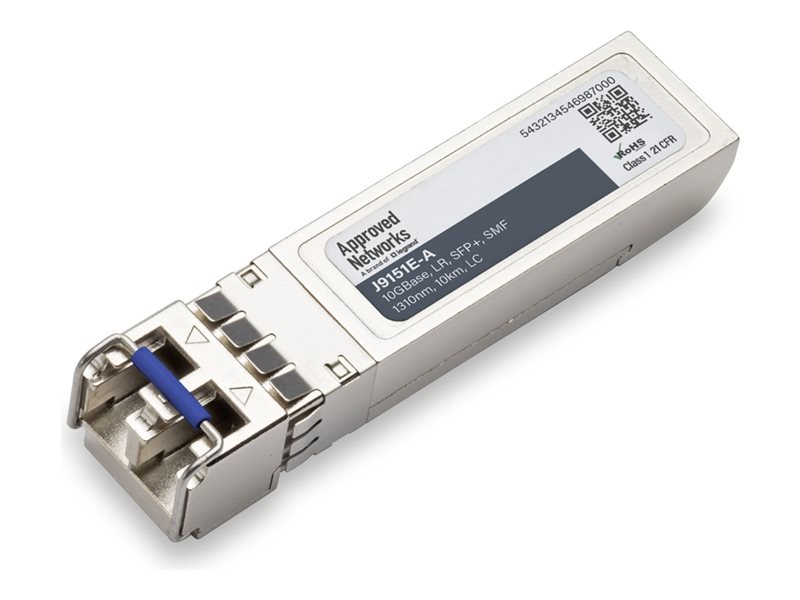

SFP+ transceiver module (equivalent to: HP J9151E) - 10GbE - 10GBase-LR - LC Duplex multi-mode - up to 6.2 miles - 1310 (RX) / 1310 (TX) nm
| Main Specifications | |
|---|---|
| Product Description | Approved Networks - SFP+ transceiver module - 10GbE |
| Device Type | SFP+ transceiver module - LC Duplex multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-LR |
| Data Transfer Rate | 25.78 Gbps |
| Optical Wave Length | 1310 (RX) / 1310 (TX) nm |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 6.2 miles |
| OEM Manufacturer Equivalent Part Number | HP J9151E |
| Dimensions (WxDxH) | 0.6 in x 2.2 in x 0.5 in |
| Weight | 0.4 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Color | Silver |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-LR - LC Duplex multi-mode |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3ae, SFF-8431, RoHS |
| OEM Manufacturer Equivalent Part Number | HP J9151E |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-LR |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 25.78 Gbps |
| Optical Wave Length | 1310 (RX) / 1310 (TX) nm |
| Max Transfer Distance | 6.2 miles |
| Features | C-Temp, Digital Diagnostics Monitoring (DDM), Digital Optical Monitoring (DOM) support |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 0.6 in |
| Depth | 2.2 in |
| Height | 0.5 in |
| Weight | 0.4 oz |
