SD-WAN gateway - 1GbE - 1U - cloud-managed - desktop
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba Networking EdgeConnect 10104 NAL SD-WAN Gateway - SD-WAN gateway - cloud-managed |
| Device Type | SD-WAN gateway |
| Form Factor | Desktop - 1U |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Recommend boost: 200 Mbps ¦ WAN throughput: 2 - 500 Mbps |
| Capacity | Simultaneous connections: 256000 ¦ VLANs supported: 64 |
| Included Accessories | Table top rubber feet |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 7.8 in x 6 in x 1.5 in |
| Weight | 2.51 lbs |
| General | |
| Device Type | SD-WAN gateway |
| Height (Rack Units) | 1U |
| Width | 7.8 in |
| Depth | 6 in |
| Height | 1.5 in |
| Weight | 2.51 lbs |
| Expansion / Connectivity | |

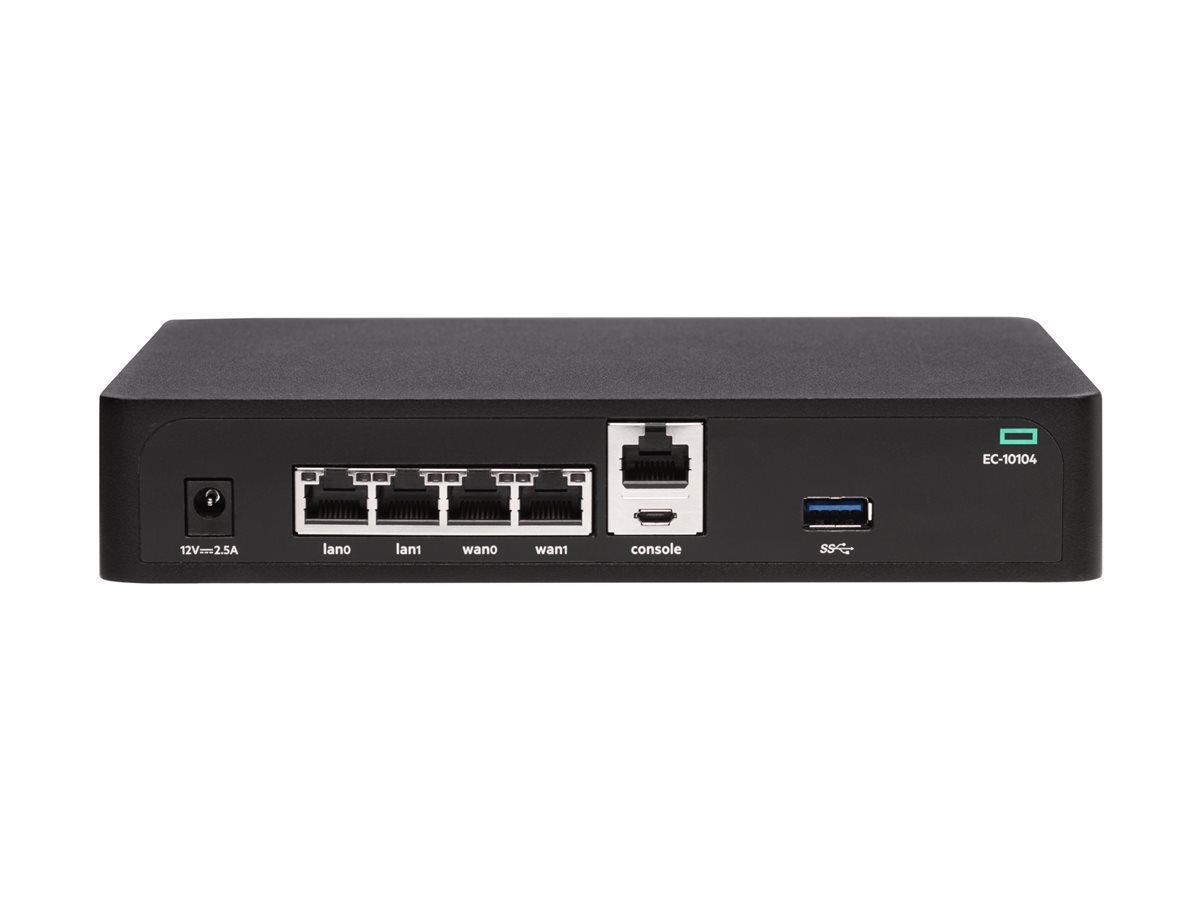

| Interfaces | 2 x 10/100/1000Base-T - RJ-45 (WAN) ¦ 2 x 10/100/1000Base-T - RJ-45 ¦ 1 x console - RJ-45/micro-USB ¦ 1 x USB 3.0 - Type A |
| Miscellaneous | |
| Included Accessories | Table top rubber feet |
| MTBF | 63 years |
| Compliant Standards | NAL, FCC CFR 47 Part 15 Class B, ICES-003 issue 7 Class B, EN 55032 Class B, EN55035, EN 61000-3-2, EN 61000-3-3, IEC 61000-3-2, IEC 61000-3-3, VCCI Class B, CISPR 32 Class B, CISPR 35, EN 300 386 V2.1.1, UL 60950-1, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, UL 62368-1 Third Edition, CSA C22.2 No. 62368-1:19 Third Edition |
| Networking | |
| Form Factor | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Routing Protocol | BGP, OSPF |
| Remote Management Protocol | SNMP 2c, SNMP 3, SSH, HTTPS, CLI |
| Cloud-Managed | Yes |
| Performance | Recommend boost: 200 Mbps ¦ WAN throughput: 2 - 500 Mbps |
| Capacity | Simultaneous connections: 256000 ¦ VLANs supported: 64 |
| Features | IPFIX, NetFlow, 4G/5G/LTE support, ECC memory |
| Encryption Algorithm | 128-bit AES, 256-bit AES |
| Authentication Method | RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 48 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
