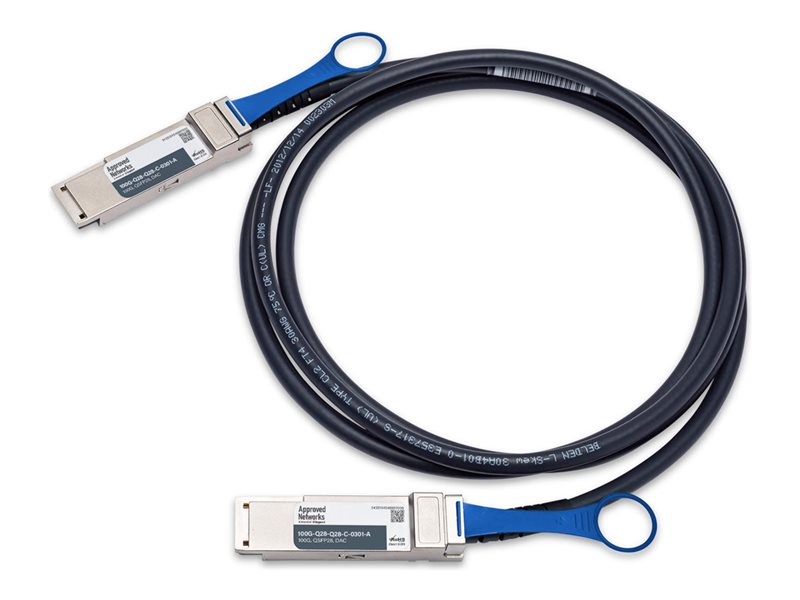

100GBase-CR4 direct attach cable - QSFP28 to QSFP28 - 10 ft - twinaxial - SFF-8636/SFF-8679/IEEE P802.3by - passive, solid
| Main Specifications | |
|---|---|
| Product Description | Approved Networks 100GBase-CR4 direct attach cable - 10 ft |
| Type | 100GBase-CR4 direct attach cable - SFF-8636/SFF-8679/IEEE P802.3by |
| Technology | Twinaxial |
| Features | Passive cable, solid, silver-plated copper conductor, up to 100 Gbps, Bit Error Rate (BER) 1E-15, built-In EEPROM |
| Length | 10 ft |
| Connector | QSFP28 |
| Connector (Second End) | QSFP28 |
| OEM Manufacturer Equivalent Part Number | Brocade 100G-Q28-Q28-C-0301-A |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Network Cable Type | 100GBase-CR4 direct attach cable - SFF-8636/SFF-8679/IEEE P802.3by |
| Technology | Twinaxial |
| Jacket Material | PVC |
| American Wire Gauge (AWG) | 30 |
| Features | Passive cable, solid, silver-plated copper conductor, up to 100 Gbps, Bit Error Rate (BER) 1E-15, built-In EEPROM |
| Length | 10 ft |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| OEM Manufacturer Equivalent Part Number | Brocade 100G-Q28-Q28-C-0301-A |
| Compliant Standards | RoHS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Connectivity | |
| Connector | QSFP28 |
| Connector (Second End) | QSFP28 |
