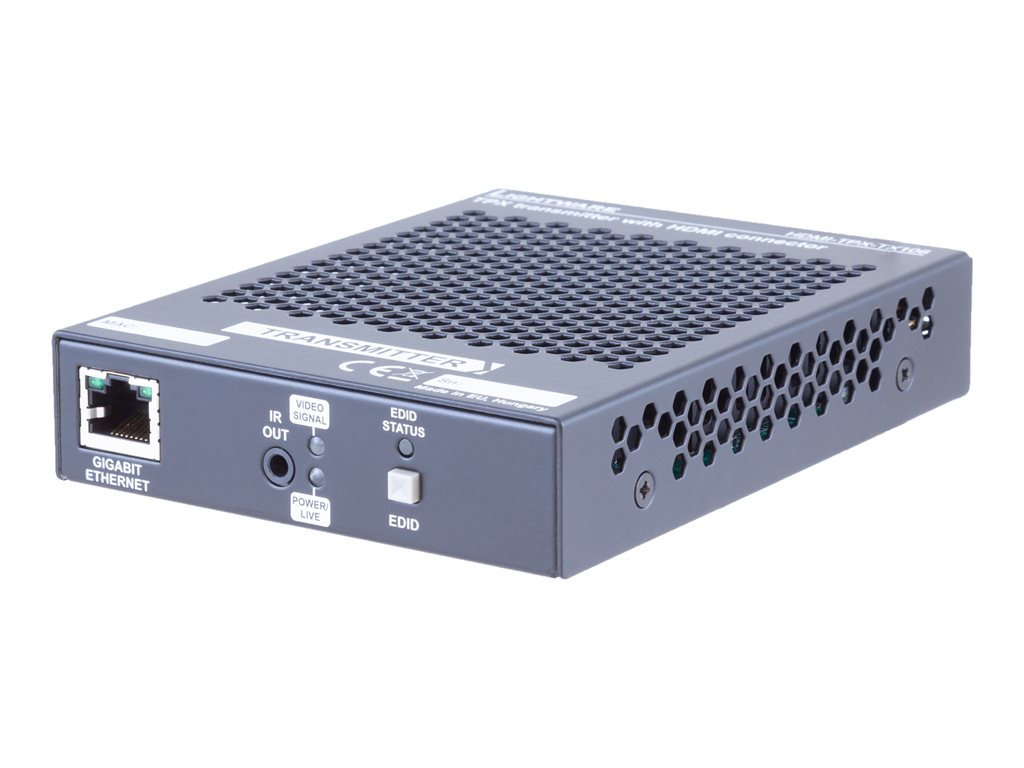

Video/audio/infrared/serial/network extender - transmitter - RS-232, 1GbE, HDMI, infrared - over CATx - 1000Base-T - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | Lightware HDMI-TPX-TX106 - video/audio/infrared/serial/network extender - RS-232, 10Mb LAN, 100Mb LAN, 1GbE, HDMI, infrared |
| Device Type | Video/audio/infrared/serial/network extender (transmitter) |
| Form Factor | External |
| Cabling Type | 1000Base-T |
| Data Link Protocol | RS-232, 10Mb LAN, 100Mb LAN, 1GbE, HDMI, infrared |
| Transmission Medium | CATx |
| Max Transfer Distance | 328 ft |
| Weight | 16.79 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/infrared/serial/network extender (transmitter) |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x RS-232 - 3 pin Phoenix ¦ 1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x IrDA - mini jack female ¦ 1 x AVX output (SDVoE) - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | UKCA, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 62368-1:2024, EN 63000:2018, RoHS, Directive 2011/65/EU, EMC 2014/30/EU, LVD 2014/35/EU, WEEE 2012/19/EU |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T |
| Data Link Protocol | RS-232, 10Mb LAN, 100Mb LAN, 1GbE, HDMI, infrared |
| Max Transfer Distance | 328 ft |
| Status Indicators | Signal, power, live |
| Features | 4K60Hz support, RGB 4:4:4, bi-directional power over cable (PoC), bi-directional RS-232, 600 MHz pixel clock, passive cooling, 18 Gbps video bandwidth |
| Compliant Standards | HDCP 2.3 |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Weight | 16.79 oz |
