For Zoom Rooms - video conferencing kit
| Main Specifications | |
|---|---|

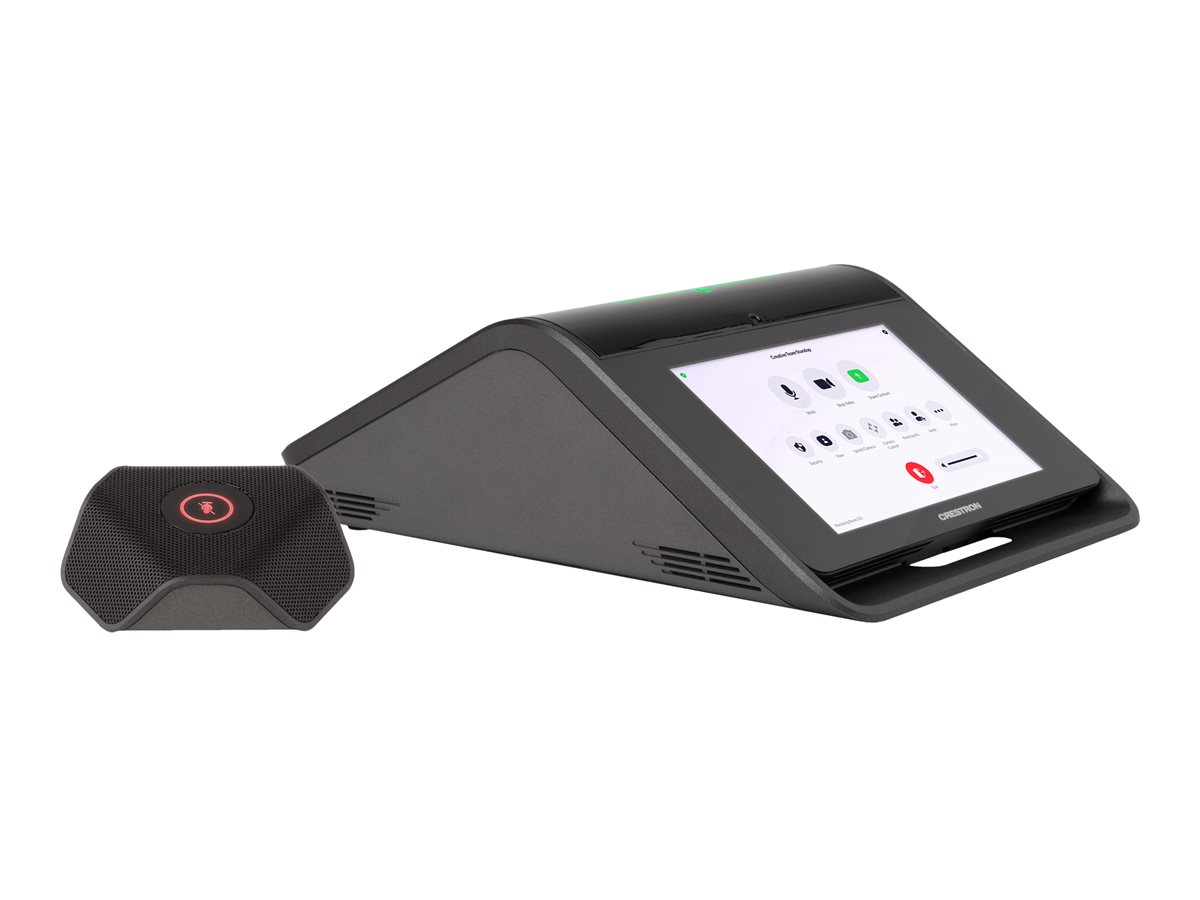

| Product Description | Crestron Flex - for Zoom Rooms - video conferencing kit |
| Device Type | Video conferencing kit |
| Kit Content | Touchscreen console, mini-PC, HDMI to USB 3.0 Converter, mic pod |
| VoIP Protocols | SRTP |
| Display | 7" TFT / 1280 x 800 |

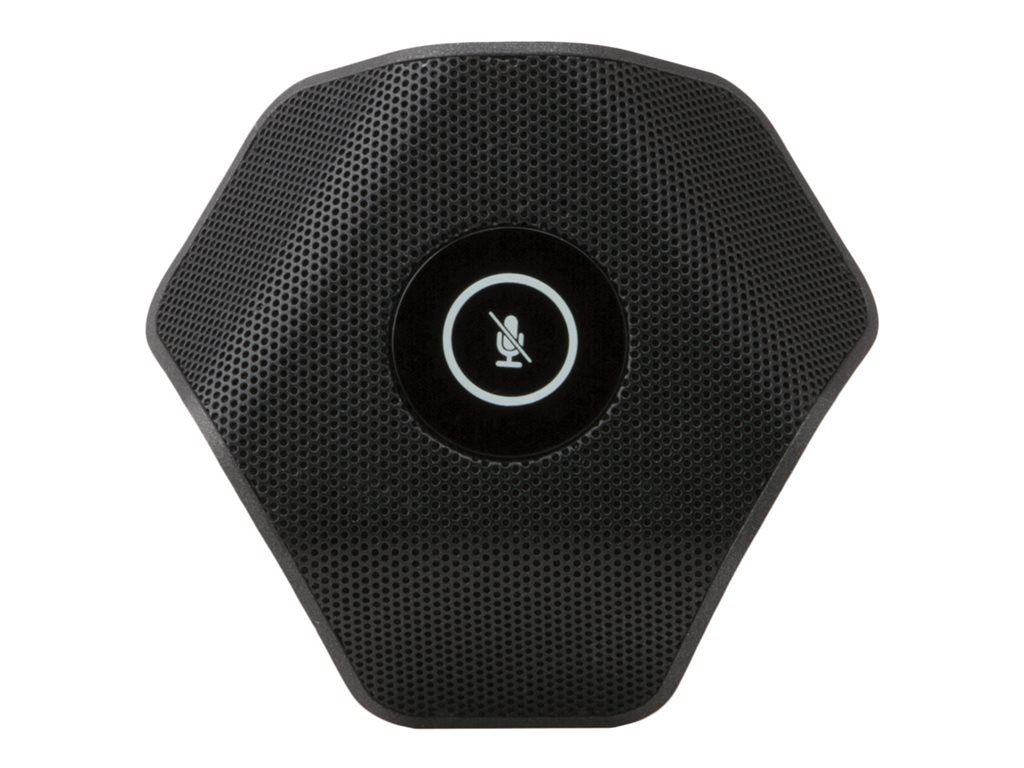

| Audio Input | Quad array microphone |
| Audio Output | Speaker(s) |
| Input Device | 7" touchscreen (wired) |
| Networking | Network adapter - Ethernet, Fast Ethernet, LDAP |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | Touchscreen console, mini-PC, HDMI to USB 3.0 Converter, mic pod |
| VoIP Protocols | SRTP |
| Security | IEEE 802.1X, TLS, SRTP |
| Network Protocols | CIP, SSL, TLS, SSH, SFTP, SRTP, HTTPS |
| Network Features | Active directory external authentication, Lightweight Directory Access Protocol (LDAP) |
| Dimensions & Weight Details | Main system - Width 8.9 in Depth 12.8 in Height 4.1 in Weight 5.5 lbs ¦ Microphone - Width 3.8 in Depth 3.8 in Height 1 in ¦ Assembly bracket - Width 14.5 in Height 15 in |
| Built-in Devices | Speaker, 4 microphone array, occupancy sensor |
| Expansion / Connectivity | |
| Interfaces | 2 x network - Ethernet 10Base-T/100Base-TX ¦ 1 x USB 2.0 - Micro-USB Type B |
| Miscellaneous | |
| Cables Included | 1 x network cable - 12 ft ¦ 1 x DisplayPort-HDMI cable - 6 ft ¦ 1 x network cable - 7 ft ¦ 1 x HDMI cable - 6 ft ¦ 1 x HDMI cable - 20 ft ¦ 1 x USB-A to USB-B cable - 6 ft ¦ USB-A cable - 15 ft |
| Mounting Kit | Included |
| Included Accessories | UC bracket assembly, mounting hardware |
| Compliant Standards | IEEE 1329 Type 1 |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, LDAP |
| Network / Transport Protocol | DHCP, TCP/IP, UDP/IP |
| Features | Auto-switching, auto-negotiation, full duplex mode, half duplex mode, digest authentication, password authentication |
| Compliant Standards | IEEE 802.1x, IEEE 802.3at |
| Software / System Requirements | |
| Software Included | Crestron Zoom Rooms |
| Audio Output | |
| Type | Speaker(s) |
| Audio Amplifier | Integrated |
| Output Power / Channel | 11 watt |
| Frequency Response | 90 - 22000 Hz |
| Audio Input | |
| Type | Quad array microphone - integrated |
| Input Device | |
| Type | 7" touchscreen |
| Connectivity Technology | Wired |
| Features | 1280 x 800 resolution, 2 capacitive buttons, Limes Audio TrueVoice acoustic echo cancellation, automatic microphone mixing, Automatic Gain Control (AGC), dynamic noise reduction |
| Display | |
| Technology | TFT active matrix |
| Diagonal Size | 7" |
| Native Resolution | 1280 x 800 |
| Monitor Features | Touch screen |
