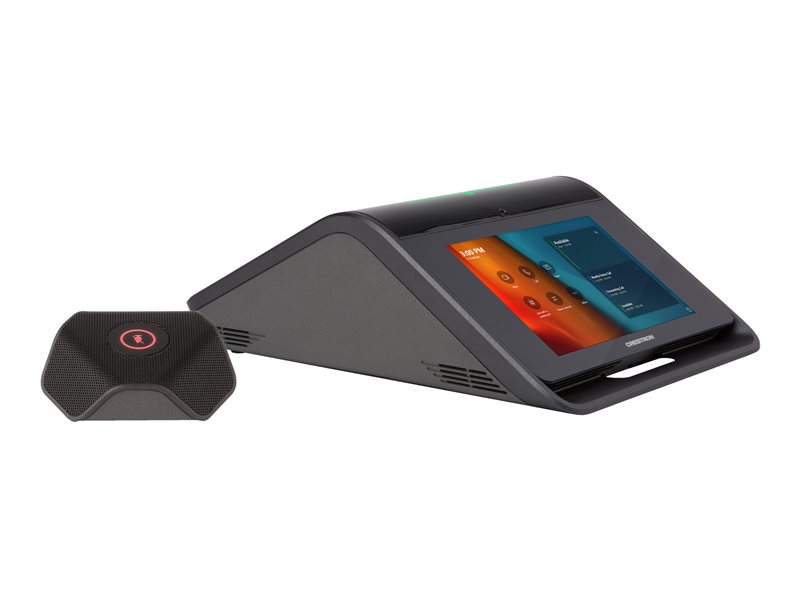

For Large Microsoft Teams Rooms - video conferencing kit - power adapter included
| Main Specifications | |
|---|---|
| Product Description | Crestron Flex - for Large Microsoft Teams Rooms - video conferencing kit - power adapter included |
| Device Type | Video conferencing kit |
| Kit Content | Touchscreen console, mini-PC, mic pod, USB Ethernet adapter |
| Display | 7" TFT / 1280 x 800 |
| Audio Input | 360° quad array microphone |
| Audio Output | Speaker(s) |
| Input Device | 7" touchscreen |
| Networking | Network adapter - Ethernet, Fast Ethernet |
| Power | AC 100-240 V (50/60 Hz) |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | Touchscreen console, mini-PC, mic pod, USB Ethernet adapter |
| Network Protocols | SRTP, SSH, SSL, SFTP, TLS, CIP, DHCP |
| Dimensions & Weight Details | Touch screen - Width 8.9 in Depth 12.8 in Height 4.1 in Weight 5.5 lbs ¦ Microphone - Width 3.8 in Depth 3.4 in Height 1 in ¦ Assembly bracket - Width 14.5 in Height 15 in |
| Built-in Devices | Occupancy sensor |
| Expansion / Connectivity | |
| Interfaces | USB 2.0 - 5 pin Micro-USB Type B ¦ 2 x microphone ¦ Network - Ethernet 100Base-TX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x network cable - 12 ft ¦ 1 x HDMI / USB adapter ¦ 1 x DisplayPort-HDMI cable - 6 ft ¦ 1 x network cable - 7 ft ¦ 1 x HDMI cable - 6 ft ¦ 1 x HDMI cable - 20 ft ¦ 1 x USB-A to USB-B cable - 6 ft ¦ 1 x USB-A cable - 15 ft ¦ 1 x network cable - 20 ft ¦ Power cable |
| Mounting Kit | Included |
| Included Accessories | Mounting hardware, cable management hardware |
| Compliant Standards | IEEE 1329 Type 1 |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Compliant Standards | IEEE 802.1x, IEEE 802.3at |
| Power | |
| Power Device | Power adapter / PoE |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Audio Output | |
| Type | Speaker(s) |
| Output Power / Channel | 11 Watt |
| Frequency Response | 90 - 22000 Hz |
| Audio Input | |
| Type | 360° quad array microphone - integrated |
| Input Device | |
| Type | 7" touchscreen |
| Features | Automatic Gain Control (AGC), Limes Audio TrueVoice acoustic echo cancellation, automatic microphone mixing, dynamic noise reduction |
| Display | |
| Technology | TFT active matrix |
| Diagonal Size | 7" |
| Native Resolution | 1280 x 800 |
| Monitor Features | Touch screen |
