No Radio - Video conferencing kit - Certified for Microsoft Teams Rooms - first light - TAA Compliant
| Main Specifications | |
|---|---|

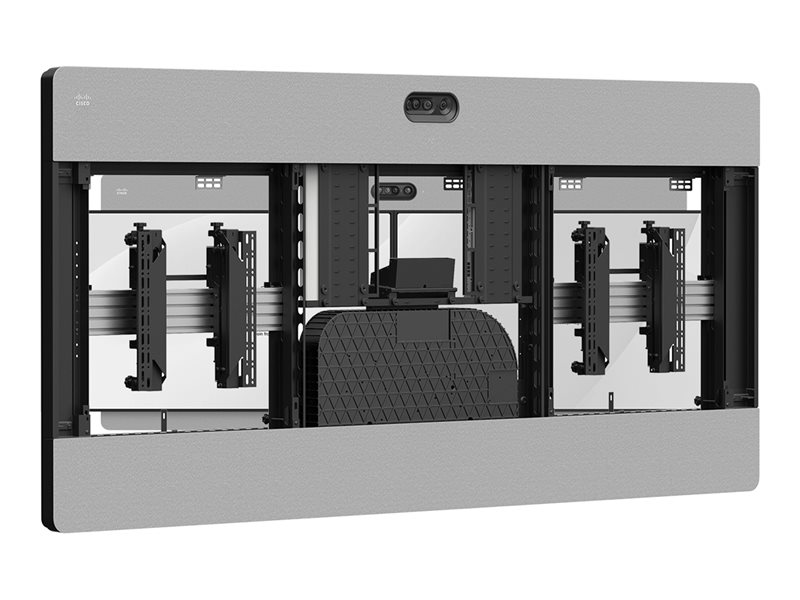

| Product Description | Cisco Webex Room Kit EQX - No Radio - video conferencing kit - TAA Compliant - power adapter included |
| Device Type | Video conferencing kit |
| Kit Content | Cisco Webex Codec EQ, Cisco Webex Quad Camera, Cisco Webex Room Navigator, Cisco Natural Audio Module IV (amplifier), 6 loudspeakers, bass unit |
| VoIP Protocols | H.323, H.235, SIP |
| Codec | H.264, H.265, H.263, H.239, G.711, G.722, G.722.1, G.729, AAC-LD, Opus |
| Dimensions (WxDxH) | 110.2 in x 5.4 in x 48.4 in |
| Weight | 264.55 lbs |
| Video Input | Digital video camera - HDMI |
| Video Output | Codec board - 3840 x 2160 |
| Audio Input | 8-microphone array |
| Audio Output | Speaker(s) |
| Networking | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | AC 100-240 V (50/60 Hz) |
| TAA Compliant | Yes |
| Software Certification | Certified for Microsoft Teams Rooms |
| System Requirements | Cisco RoomOS 11.9.2 or later |
| Manufacturer Warranty | 90-day warranty |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | Cisco Webex Codec EQ, Cisco Webex Quad Camera, Cisco Webex Room Navigator, Cisco Natural Audio Module IV (amplifier), 6 loudspeakers, bass unit |
| VoIP Protocols | H.323, H.235, SIP |
| Voice Codecs | G.711, G.722, G.722.1, G.729, AAC-LD, Opus |
| Video Codecs | H.264, H.265, H.263, H.239 |
| IP Address Assignment | DHCP |
| Security | H.323, H.235, AES, TLS, SRTP, 128-bit AES, 256-bit AES, WPA3, WPA3-Enterprise |
| Network Protocols | SIP, DNS, NTP, DHCP, HTTP, HTTPS, TLS, IPv4, IPv6, SSH, SRTP |
| Width | 110.2 in |
| Depth | 5.4 in |
| Height | 48.4 in |
| Weight | 264.55 lbs |
| Enclosure Color | First light |
| Expansion / Connectivity | |
| Interfaces | 1 x USB-C - 24 pin USB-C ¦ 3 x display / video - HDMI input - 19 pin HDMI Type A ¦ 3 x display / video - HDMI output - 19 pin HDMI Type A ¦ 3 x audio - input - mini-phone stereo 3.5 mm ¦ 1 x audio - output - mini-phone stereo 3.5 mm ¦ 4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x USB - 5 pin Micro-USB Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 4 x network - Ethernet 10Base-T/100Base-TX/1000Base-T (PoE++) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 90 days ¦ Limited warranty - advanced replacement - 10 days |
| Miscellaneous | |
| Cables Included | 1 x network cable - 39 ft ¦ 1 x network cable - 16.4 ft ¦ 1 x HDMI cable - 5 ft ¦ 2 x network cable - 5 ft ¦ 1 x speaker cable |
| Mounting Kit | Included |
| Included Accessories | 2 cooling fans, wall mount, center module, VESA bracket, front frame module, side wall module |
| Software Certification | Certified for Microsoft Teams Rooms |
| Compliant Standards | HDCP 1.4, EDID compatible, CEC 2.0, MIC, WEEE, Directive 2014/30/EU, Directive 2014/35/EU, FCC, FCC CFR47 Part 15 B Class A, FCC CFR47 Part 15 C, FCC CFR47 Part 15 E, NRTL, RoHS |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | Bonjour, DNS, NTP, DHCP, HTTP, HTTPs, IPv4, IPv6 |
| Features | LPCM support, full duplex mode, Wireless Screen Sharing, BYOD System, VoIP support, WebRTC, Quality of Service (QoS), flow control, auto gatekeeper discovery, URI Dialing, Cisco Discovery Protocol (CDP), 802.1x authentication, Class of Service (CoS), DiffServ support, password protection, Certificate Authority Proxy Function (CAPF) |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 68.8 Watt |
| Software / System Requirements | |
| OS Required | Cisco RoomOS 11.9.2 or later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% RH |
| Audio Output | |
| Type | Speaker(s) |
| Frequency Response | 45 - 20000 Hz |
| Audio Input | |
| Type | 8-microphone array - integrated |
| Video Input | |
| Type | Digital video camera (color) - external |
| Interface Type | HDMI |
| Digital Video Capture Resolution | 5056 x 3888, 1920 x 1080 |
| Video Modes | 5K, 1080p |
| Optical Zoom | 1.9 |
| Digital Zoom | 4 |
| Features | AI-powered, 83° horizontal field of view (wide), 50° horizontal field of view (tele), speaker tracking, spatial audio, 4 x 20 megapixels image sensor, noise-cancellation microphone, Miracast connectivity, Ultrasound technology, 1/1.7 CMOS image sensor type, F 2.0 lens aperture, automatic group framing, Auto Focus, brightness control, white balance, focus distance 1 m to infinity, Acoustic Echo Cancellation (AEC), group view mode, speaker view mode, frames mode |
| Video Output | |
| Type | Codec board - external |
| Max External Resolution | 3840 x 2160 |
| Supported Display Graphics | HDTV (1920x1080), UHD (3840 x 2160) |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 65 in |
| Shipping Depth | 39.4 in |
| Shipping Height | 49.2 in |
