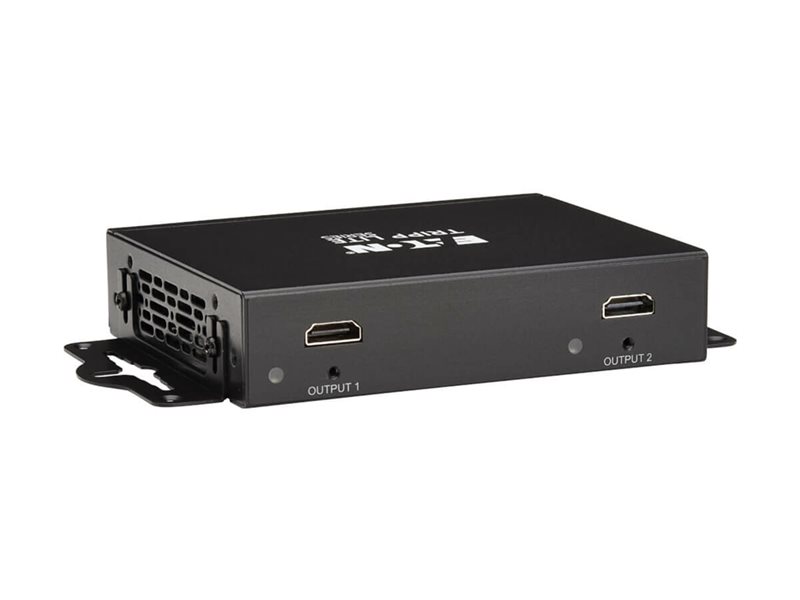

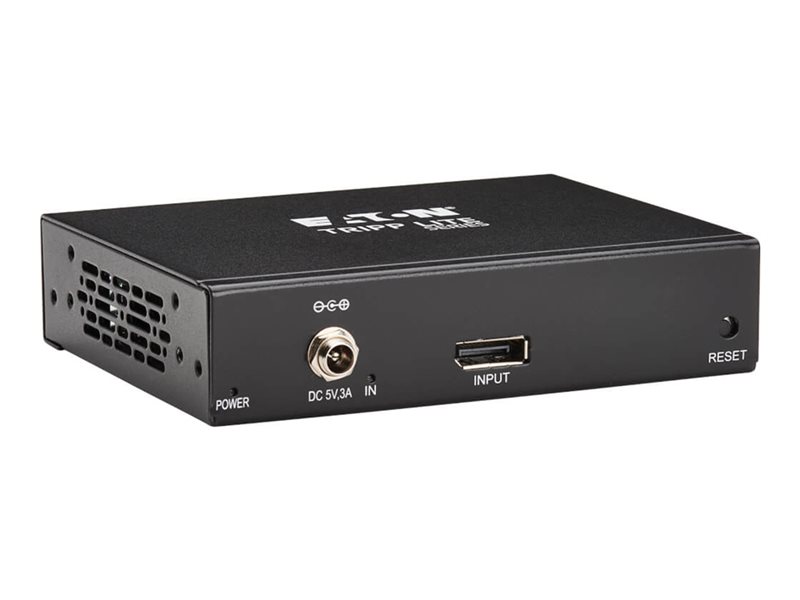

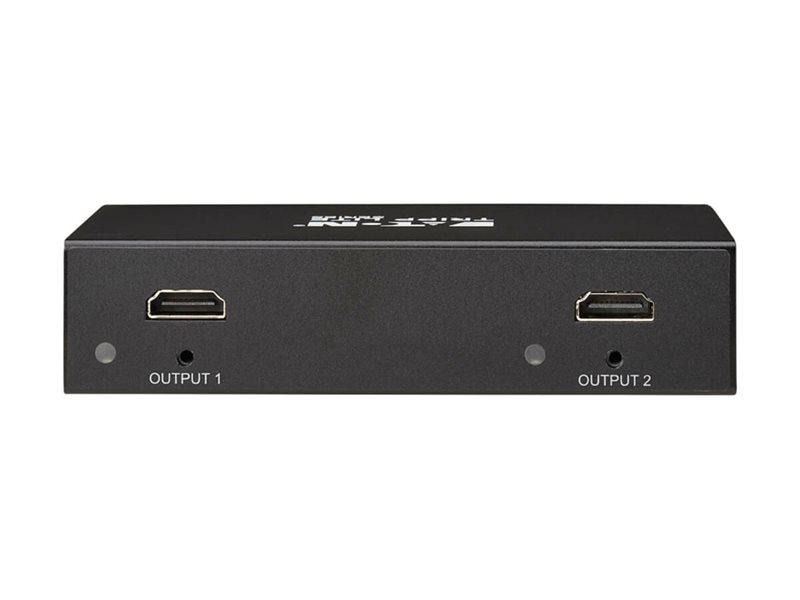

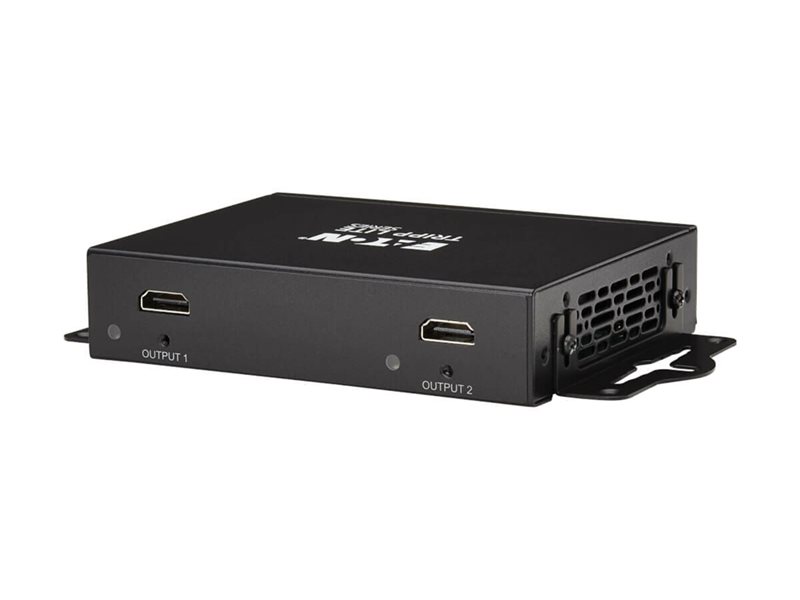

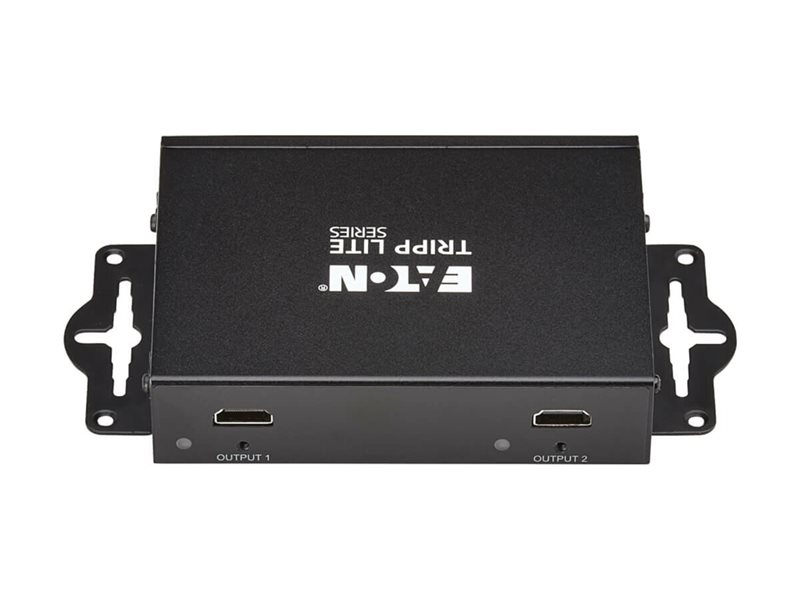

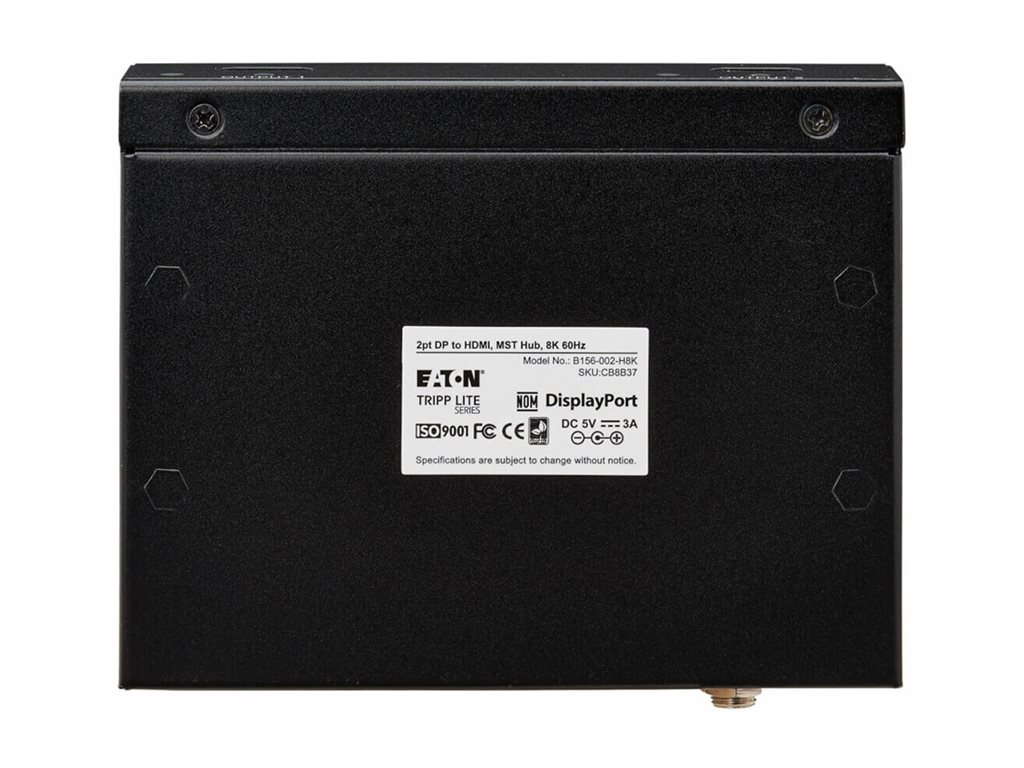

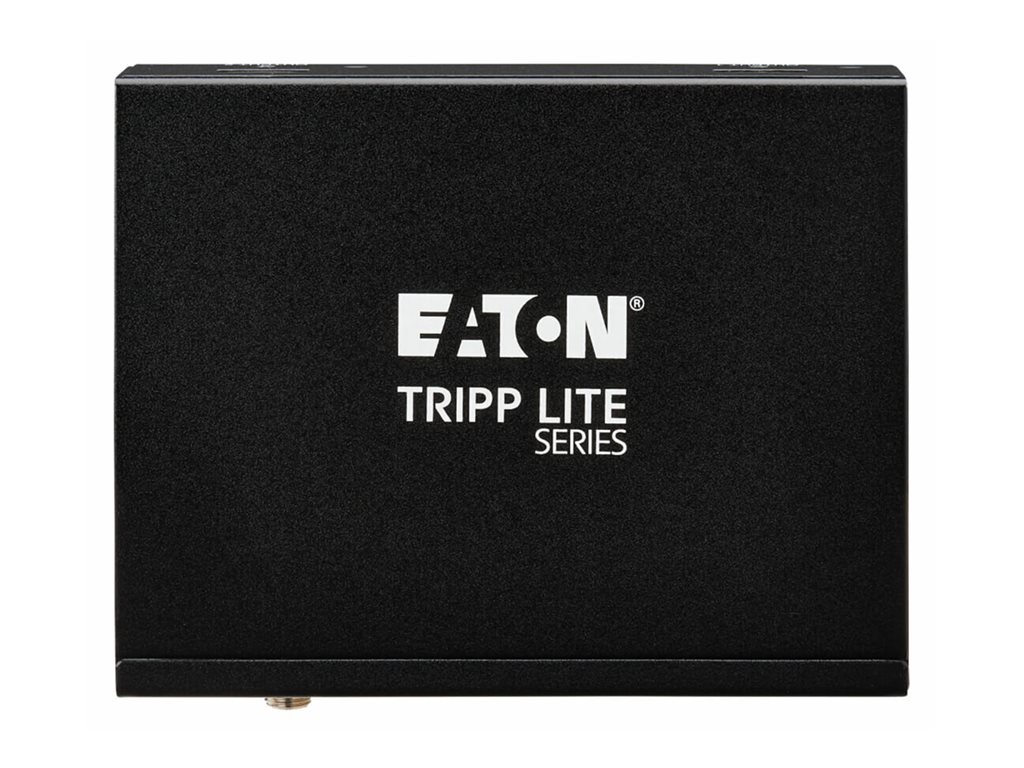

Video/audio splitter - 2 x HDMI - desktop - TAA Compliant - for P/N: P568-030-8K6, P568FMM-10M-8K6, P568FMM-20M-8K6, P568FMM-30M-8K6, P568FMM-40M-8K6
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite series DisplayPort to HDMI 2-Port Multi-Monitor Splitter 8K/4K 60Hz DP 1.4 TAA - video/audio splitter - 2 ports - TAA Compliant |
| Device Type | Video/audio splitter - 2 ports |
| Subtype | HDMI / DisplayPort |
| Ports | 2 x HDMI |
| Features | DisplayPort MST support, 4:4:4 chroma subsampling support, 16-bit Deep Color support, LPCM 2.0 support, video wall support, extended display mode, video mirror mode, HDR support, rugged, metal housing, 3D support, AC3 support, DTS support, reset button, PoC |
| Compliant Standards | HDCP 2.3, HDCP 1.4 |
| Power | AC 100-240 V (50/60 Hz) 0.5 A |
| Dimensions (WxDxH) | 5 in x 3.9 in x 1.2 in |
| Weight | 23.98 oz |
| Color | Black |
| Localization | North America, Europe, United Kingdom, Australia |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: P568-015-8K6, P568-020-8K6, P568-025-8K6, P568-030-8K6, P568FMM-10M-8K6, P568FMM-20M-8K6, P568FMM-30M-8K6, P568FMM-40M-8K6 |
| General | |
| Device Type | Video/audio splitter - 2 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI / DisplayPort |
| Ports | 2 x HDMI |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Features | DisplayPort MST support, 4:4:4 chroma subsampling support, 16-bit Deep Color support, LPCM 2.0 support, video wall support, extended display mode, video mirror mode, HDR support, rugged, metal housing, 3D support, AC3 support, DTS support, reset button, PoC |
| Compliant Standards | HDCP 2.3, HDCP 1.4 |
| Status Indicators | Signal, power |
| Expansion / Connectivity | |
| Interfaces | 2 x HDMI output ¦ 1 x DisplayPort input |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Color | Black |
| Included Accessories | 4 power plug adapters, mounting kit |
| Cables Included | 1 x power cable - 5 ft |
| Compliant Standards | DisplayPort 1.4, Plug and Play, GSA, FCC, UL, cUL, RoHS, UKCA, WEEE |
| TAA Compliant | Yes |
| Localization | North America, Europe, United Kingdom, Australia |
| Power | |
| Power Device | External power adapter |
| Power Provided | 5 V - 2 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Electric Current Required | 0.5 A |
| Power Consumption Operational | 26.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 85% RH (non-condensing) |
| Min Storage Temperature | 5 °F |
| Max Storage Temperature | 122 °F |
| Dimensions & Weight | |
| Width | 5 in |
| Depth | 3.9 in |
| Height | 1.2 in |
| Weight | 23.98 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.5 in |
| Shipping Depth | 10.2 in |
| Shipping Height | 2.2 in |
| Shipping Weight | 25.75 oz |
| Compatibility Information | |
| Designed For | P/N: P568-015-8K6, P568-020-8K6, P568-025-8K6, P568-030-8K6, P568FMM-10M-8K6, P568FMM-20M-8K6, P568FMM-30M-8K6, P568FMM-40M-8K6 |
