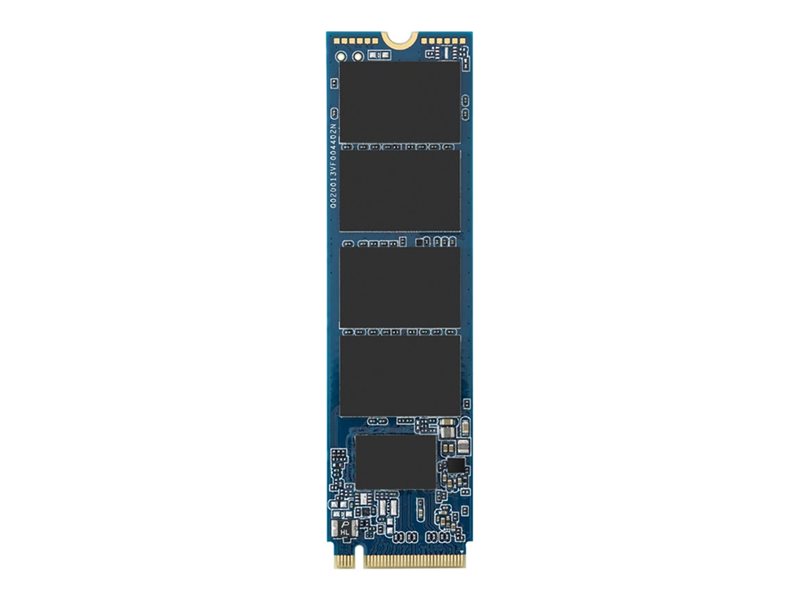

SSD - 512 GB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe)
| Main Specifications | |
|---|---|
| Product Description | Advantech SQF-C8M 720-D - SSD - 512 GB - PCIe 3.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 512 GB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.0 x4 (NVMe) |
| Features | TRIM support, ECC Recovery LDPC, GUI management tool, NVMe 1.3 |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 512 GB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.0 x4 (NVMe) |
| Features | TRIM support, ECC Recovery LDPC, GUI management tool, NVMe 1.3 |
| Miscellaneous | |
| Compliant Standards | RoHS, FCC |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 20 g @ 80-2000 Hz |
| Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) |
| Compatible Bay | M.2 2280 |
