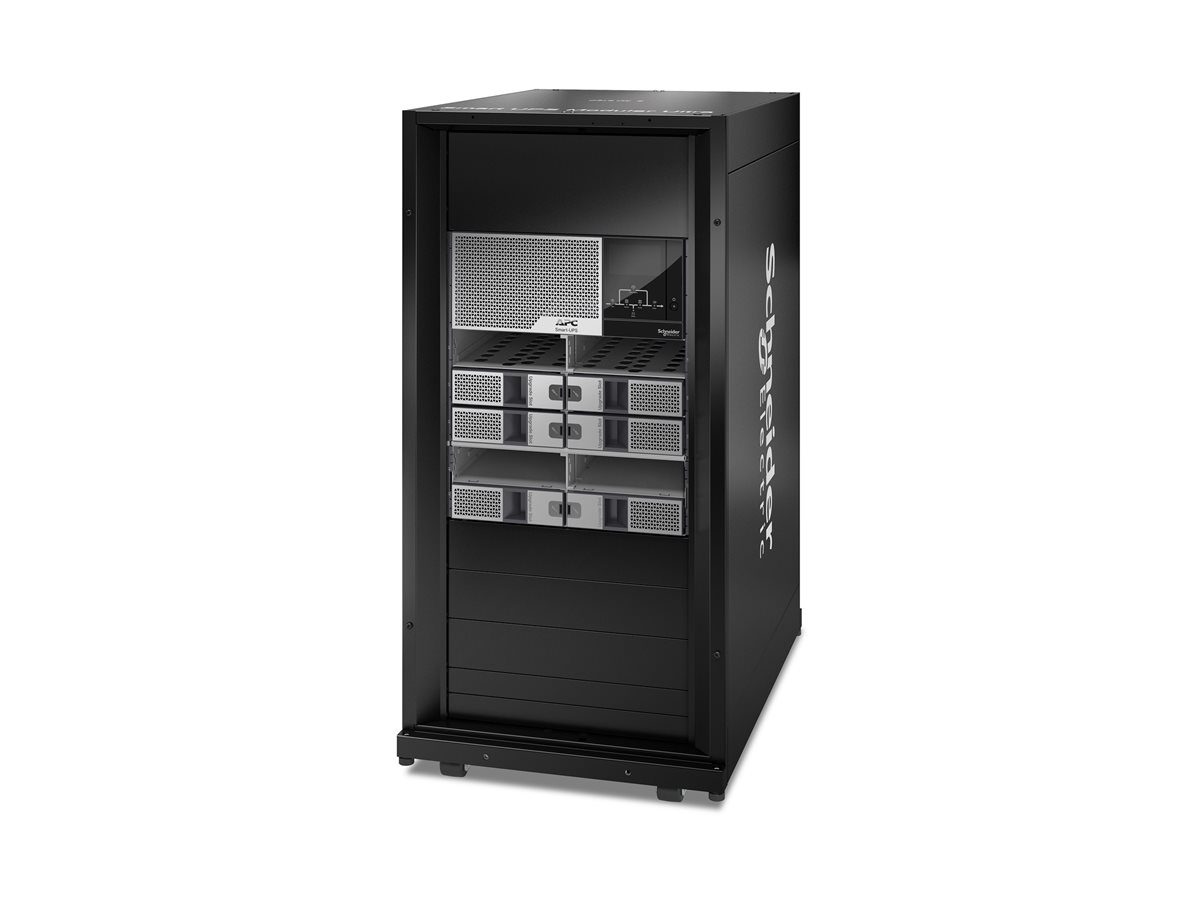

Power array cabinet - 20kW, N+1 redundant, tower, 120V - AC 208 V - 1-phase - 24U - black and silver
| Main Specifications | |
|---|---|
| Product Description | APC Smart-UPS Modular Ultra - power array cabinet - 20kW, N+1 redundant, tower, 120V |
| Device Type | Power array cabinet - external |
| Rack Size | 24U |
| Weight | 387.57 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 208 V |
| Output Voltage | AC 240 V |
| Power Redundancy | Optional |
| Input Connectors | 1 x hardwire 4-wire (2PH+N+G) |
| Color | Black and silver |
| Packaging Recycled Content | Made of recycled cardboard |
| Dimensions (WxDxH) | 23.6 in x 35.4 in x 47.2 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Power array cabinet - external |
| Height (Rack Units) | 24U |
| Color | Black and silver |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 5 years |
| Miscellaneous | |
| Features | Scalable to 20kW, internal bypass |
| Power Device | |
| UPS Technology | On-line |
| Power Redundancy | Optional |
| Power Redundancy Scheme | N+1 |
| Input Voltage | AC 208 V |
| Input Wiring | 1-phase |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x hardwire 4-wire (2PH+N+G) |
| Output Voltage | AC 240 V |
| Dimensions & Weight | |
| Width | 23.6 in |
| Depth | 35.4 in |
| Height | 47.2 in |
| Weight | 387.57 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 29.4 in |
| Shipping Depth | 39.2 in |
| Shipping Height | 52 in |
| Shipping Weight | 395.33 lbs |
| Sustainability Information | |
| Packaging Recycled Content | Made of recycled cardboard |
