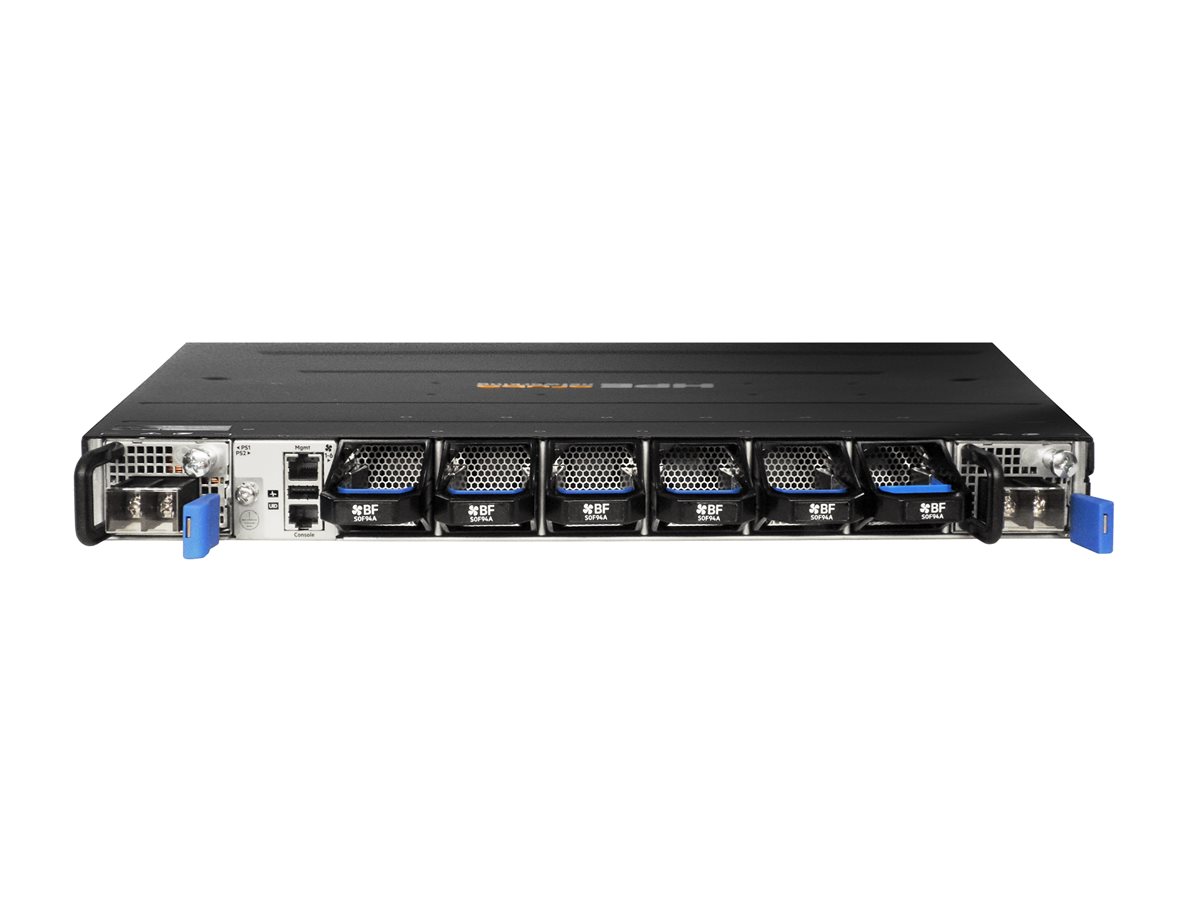

Switch - L3 - managed - 32 x 100 Gigabit QSFP28 + 8 x 400 Gigabit QSFP-DD - back to front airflow - rack-mountable - DC
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba Networking 9300S 32p QSFP28 100G 8p QSFP-DD 400G - switch - 32 ports - managed - rack-mountable |
| Device Type | Switch - 32 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 32 x 100 Gigabit QSFP28 + 8 x 400 Gigabit QSFP-DD |
| Performance | Bidirectional switching capacity: 25.6 Tbps ¦ Forwarding capacity: 5 Bpps ¦ Routing/switching capacity: 8 Tbps |
| Jumbo Frame Support | 9000 bytes |
| Routing Protocol | OSPF, BGP-4, RIP-2, IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
| Remote Management Protocol | SNMP 2, SNMP, SNMP 3, MIB |
| Features | Layer 2 switching, port mirroring, sFlow, QoS, ECMP, BFD, DCB, GRE, ERPS, RoCE, BPDU, RoCE v2, NTP, policy based routing, RPVST+, UDLD, layer 3 routing, Address Resolution Protocol, Aruba VSX, Dynamic VXLAN with BGP-EVPN, BGP-4 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by, IEEE 802.3cd |
| Power | DC |
| Dimensions (WxDxH) | 17.3 in x 23.2 in x 1.7 in |
| Weight | 26.12 lbs |
| System Requirements | AOS-CX |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 32 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 32 x 100 Gigabit QSFP28 + 8 x 400 Gigabit QSFP-DD |
| Performance | Bidirectional switching capacity: 25.6 Tbps ¦ Forwarding capacity: 5 Bpps ¦ Routing/switching capacity: 8 Tbps |
| Jumbo Frame Support | 9000 bytes |
| Routing Protocol | OSPF, BGP-4, RIP-2, IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
| Remote Management Protocol | SNMP 2, SNMP, SNMP 3, MIB |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Layer 2 switching, port mirroring, sFlow, QoS, ECMP, BFD, DCB, GRE, ERPS, RoCE, BPDU, RoCE v2, NTP, policy based routing, RPVST+, UDLD, layer 3 routing, Address Resolution Protocol, Aruba VSX, Dynamic VXLAN with BGP-EVPN, BGP-4 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by, IEEE 802.3cd |
| Expansion / Connectivity | |
| Interfaces | 32 x 100Gbit LAN QSFP28 ¦ 8 x 400Gbit LAN QSFP-DD ¦ 1 x console RJ-45 ¦ 1 x micro-USB console |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | 2-Post Rack Kit, 6 back-to-front fan trays |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | DC |
| Software / System Requirements | |
| OS Required | AOS-CX |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 23.2 in |
| Height | 1.7 in |
| Weight | 26.12 lbs |
