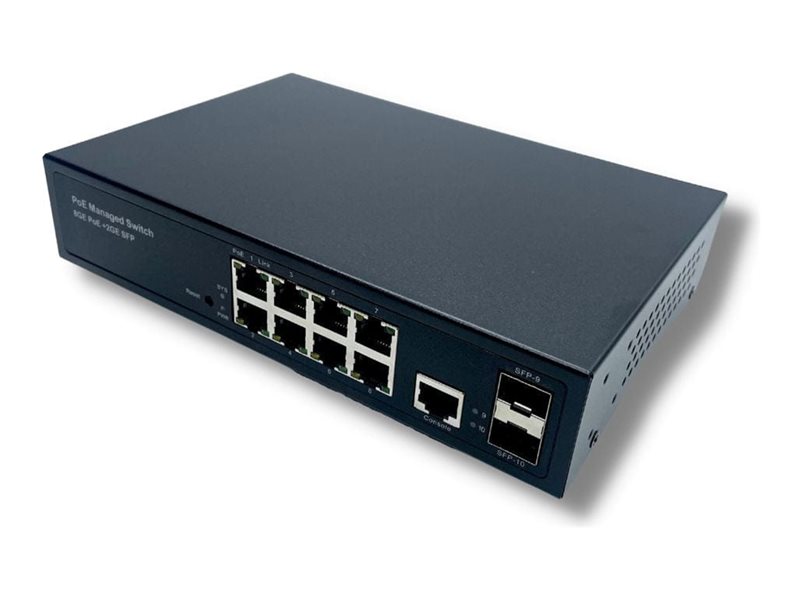

Switch - managed - 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000/SFP (uplink) - desktop - PoE+ (150 W)
| Main Specifications | |
|---|---|
| Product Description | POE Texas - switch - 8 ports - managed |
| Device Type | Switch - 8 ports - managed |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000/SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 150 W |
| Performance | Packet buffer size: 4.1 Mbit ¦ Packet forwarding rate: 14.44 Mbps ¦ Switching capacity: 56 Gbps |
| MAC Address Table Size | 8K entries |
| Routing Protocol | IGMP |
| Remote Management Protocol | DHCP, IPv6 |
| Features | VLAN support, IGMP snooping, metal housing, PFC, PoE watchdog mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3p, IEEE 802.3at, IEEE 802.3q, IEEE 802.3bt |
| Power | AC 120-220 V (50/60 Hz) |
| Dimensions (WxDxH) | 8.3 in x 5.5 in x 1.8 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Switch - 8 ports - managed |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000/SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 150 W |
| Performance | Packet buffer size: 4.1 Mbit ¦ Packet forwarding rate: 14.44 Mbps ¦ Switching capacity: 56 Gbps |
| MAC Address Table Size | 8K entries |
| Routing Protocol | IGMP |
| Remote Management Protocol | DHCP, IPv6 |
| Features | VLAN support, IGMP snooping, metal housing, PFC, PoE watchdog mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3p, IEEE 802.3at, IEEE 802.3q, IEEE 802.3bt |
| Processor | : 500 MHz |
| RAM | 128 MB |
| Flash Memory | 16 MB |
| Status Indicators | Power, PoE, link/activity |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-X SFP uplink ¦ 8 x 10/100/1000 Base-T (PoE+) RJ-45 30 W ¦ 1 x console RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Included Accessories | Power cable |
| Compliant Standards | CB, FCC, RoHS, IP30 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120-220 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 167 °F |
| Dimensions & Weight | |
| Width | 8.3 in |
| Depth | 5.5 in |
| Height | 1.8 in |
