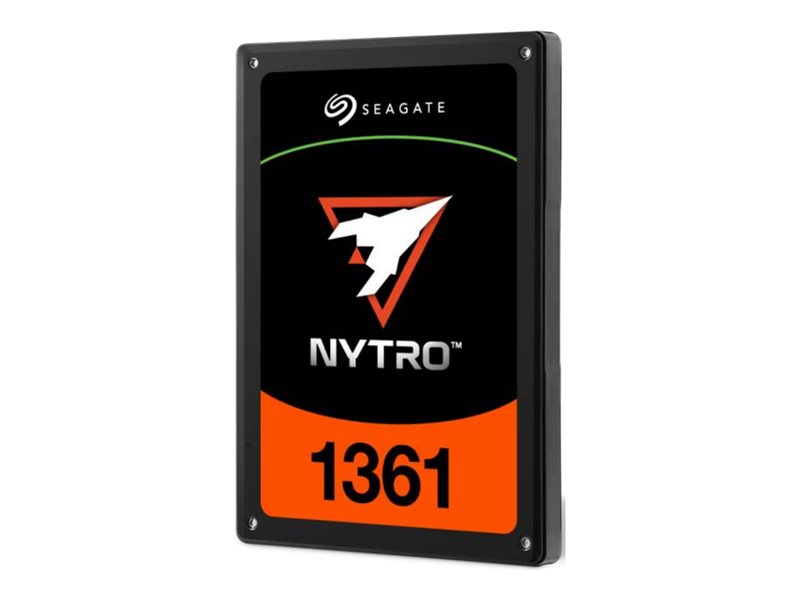

SSD - encrypted - 960 GB - internal - 2.5" - SATA 6Gb/s - Self-Encrypting Drive (SED)
| Main Specifications | |
|---|---|
| Product Description | Seagate Nytro 1361 XA480LE10016 - SSD - 960 GB - SATA 6Gb/s |
| Type | Solid state drive - internal |
| Capacity | 960 GB |
| Hardware Encryption | Yes |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Features | 24x7 continuous operation, 112-layer 3D BiCS FLASH, BiCS5 flash, power loss data protection, high Quality of Service (QoS) |
| Dimensions (WxDxH) | 2.8 in x 4 in x 0.3 in |
| Weight | 2.01 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 960 GB |
| Hardware Encryption | Yes |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Features | 24x7 continuous operation, 112-layer 3D BiCS FLASH, BiCS5 flash, power loss data protection, high Quality of Service (QoS) |
| Width | 2.8 in |
| Depth | 4 in |
| Height | 0.3 in |
| Weight | 2.01 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Power Consumption | 3.5 watt (active) ¦ 1.5 watt (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 176 °F |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Performance | |
| Drive Writes Per Day (DWPD) | 1 |
| SSD Endurance | 865 TB |
| Internal Data Rate | 530 MBps (read) / 450 MBps (write) |
| 4KB Random Read | 94000 IOPS |
| 4KB Random Write | 37000 IOPS |
| Reliability | |
| MTBF | 2,000,000 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 2.5" |
