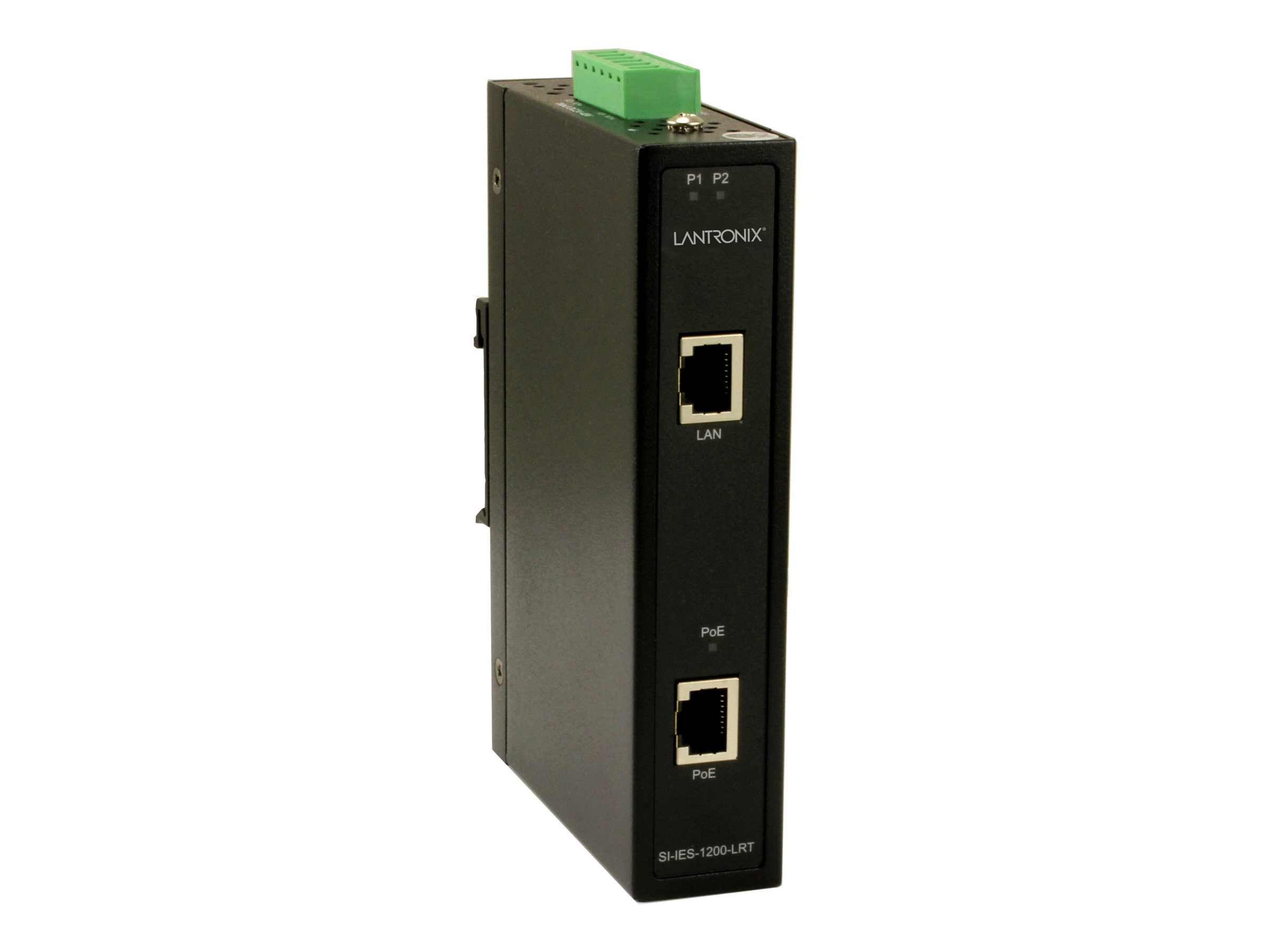

PoE injector (DIN rail mountable) - DC 24 - 48 V - 30 Watt - output connectors: 1 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix - PoE injector - 30 Watt - TAA Compliant |
| Device Type | PoE injector - DIN rail mountable |
| Power Over Ethernet (PoE) | PoE+ |
| Weight | 20.81 oz |
| Input Voltage | DC 24 - 48 V |
| Power Capacity | 30 Watt |
| Input Connectors | Terminal block |
| Output connectors | 1 x RJ-45 |
| TAA Compliant | TAA Compliant |
| Dimensions (WxDxH) | 1.2 in x 3.7 in x 5.5 in |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | PoE injector - DIN rail mountable |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Features | LED indicator |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, FCC Class A certified, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60068-2-32, IEC 60068-2-6, UL 508, IP30, EN 61000-4, NDAA |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | DC 24 - 48 V |
| Input Connectors | Terminal block |
| Power Consumption Operational | 33.36 Watt |
| Power Output Connectors Details | 1 x RJ-45 |
| Power Capacity | 30 Watt |
| Dimensions & Weight | |
| Width | 1.2 in |
| Depth | 3.7 in |
| Height | 5.5 in |
| Weight | 20.81 oz |
