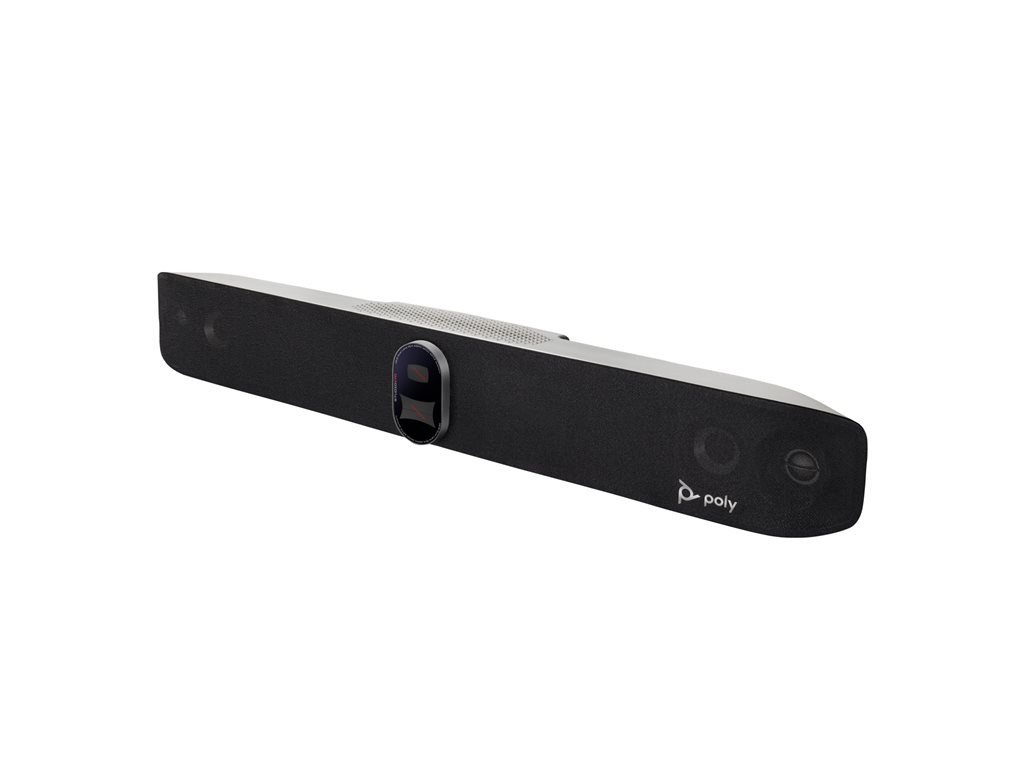

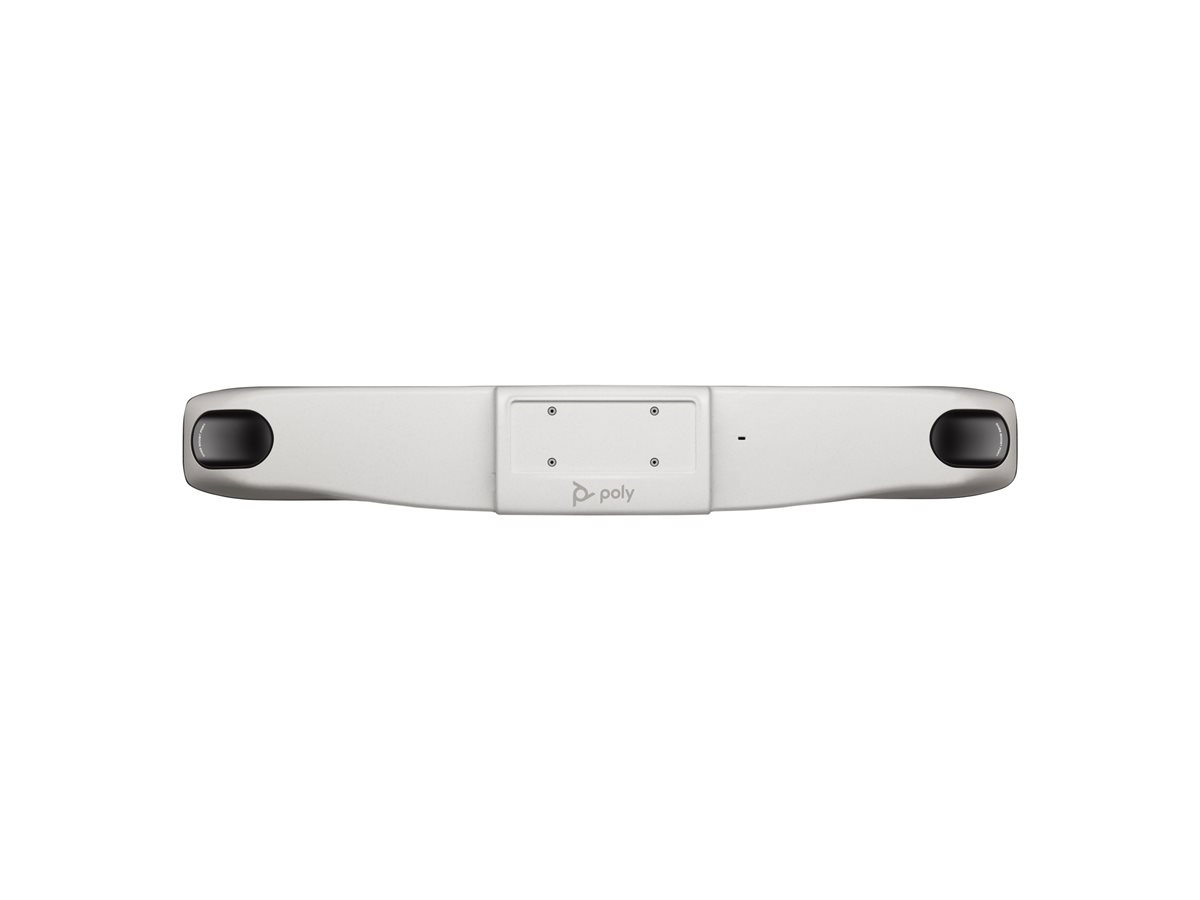

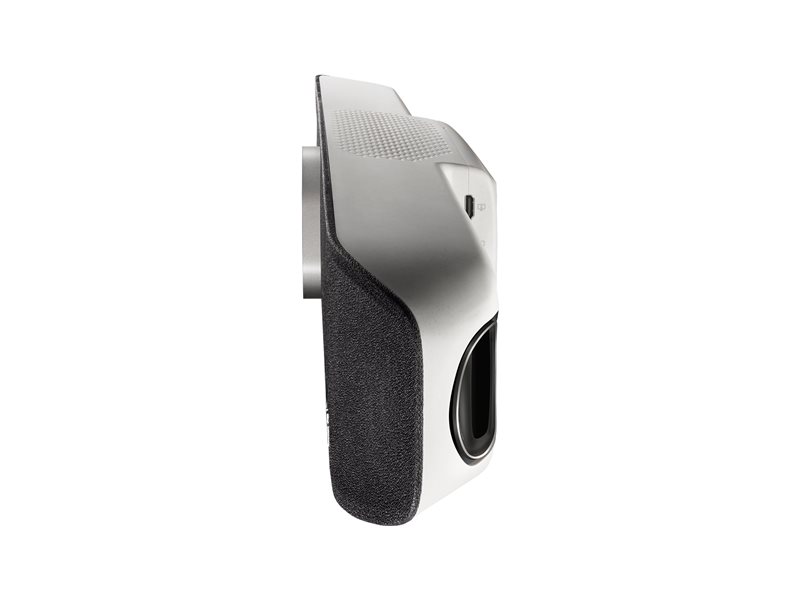

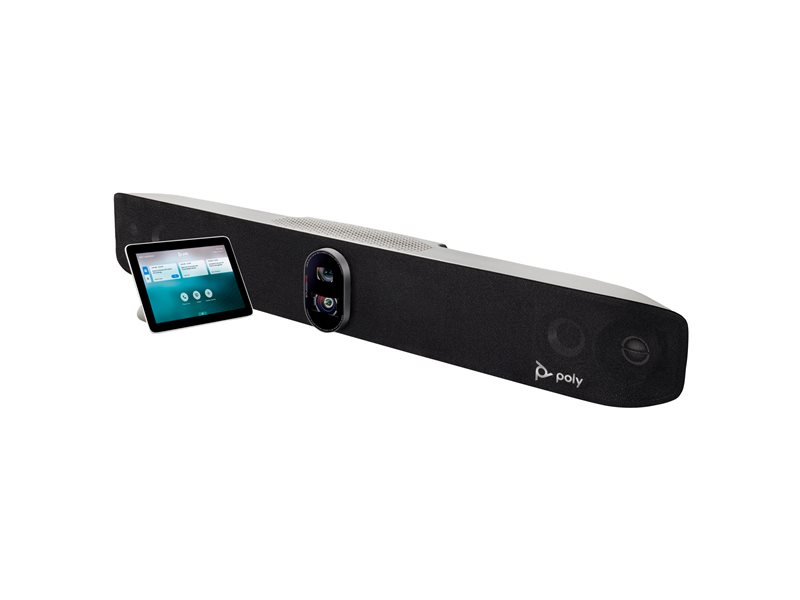

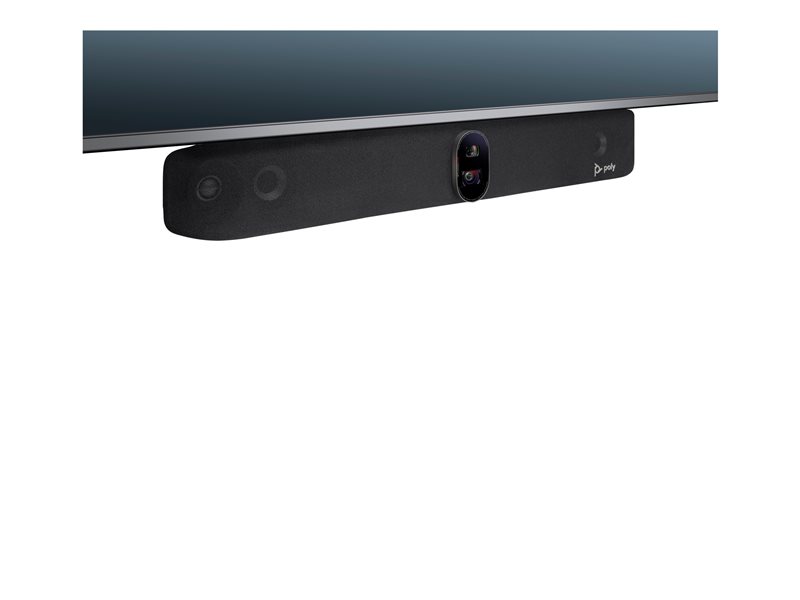

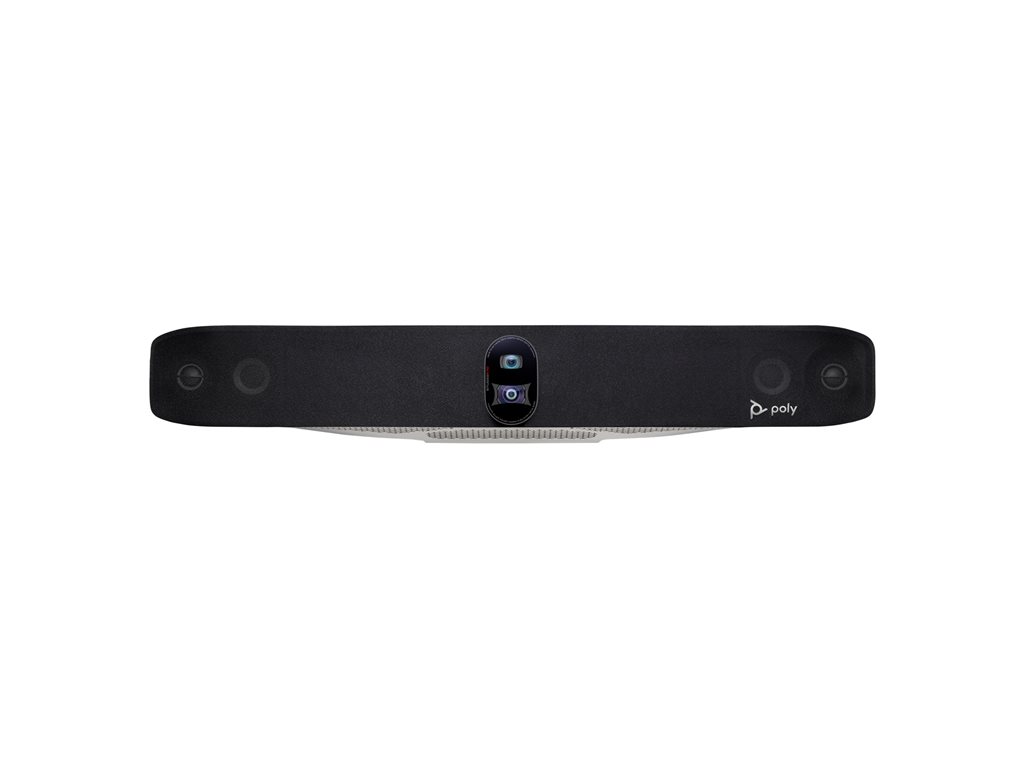

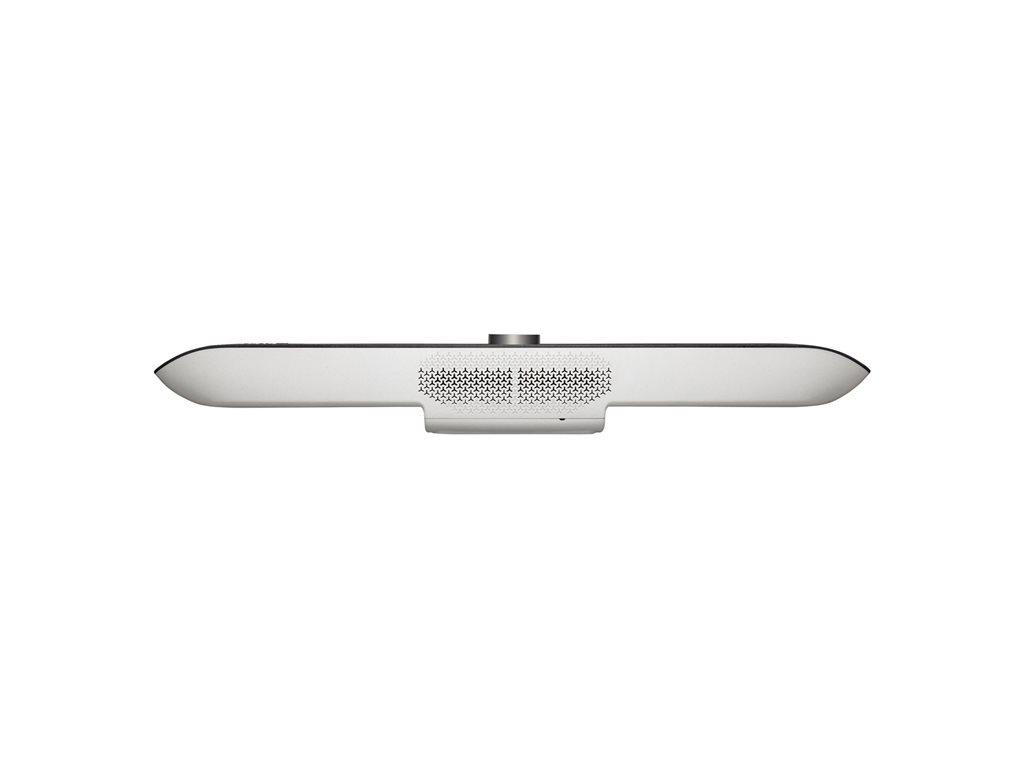

Video conferencing kit (touchscreen console, video bar) - with Poly TC8 - power adapter included
| Main Specifications | |
|---|---|
| Product Description | HP Poly Studio X70 No Radio - video conferencing kit - with Poly TC8 - power adapter included |
| Device Type | Video conferencing kit |
| Kit Content | Touchscreen console, video bar |
| VoIP Protocols | H.323, SIP |
| Codec | H.264, H.265, H.264 High Profile, H.264 AVC, G.711, G.722, G.728, G.729a, G.722.1, G.722.1c, G.719 |
| Localization | Rest of World |
| Video Input | Digital camera - HDMI |
| Video Output | 3840 x 2160 |
| Audio Input | Quad array microphone |
| Audio Output | Speaker(s) - stereo |
| Input Device | 8" touchscreen (wired) |
| Networking | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | AC 120/230 V (50/60 Hz) |
| Manufacturer Warranty | 1-year warranty |
| Bundled with | Poly TC8 |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | Touchscreen console, video bar |
| VoIP Protocols | H.323, SIP |
| Voice Codecs | G.711, G.722, G.728, G.729a, G.722.1, G.722.1c, G.719 |
| Video Codecs | H.264, H.265, H.264 High Profile, H.264 AVC |
| Security | 128-bit AES, 256-bit AES, H.235.6 |
| Network Features | Authenticated access to admin menus, web interface, and APIs, local account password policy configuration, security profiles, local account and login port lockout, secure defaults, remote logging with support for TLS, active directory external authentication |
| Dimensions & Weight Details | Touch screen - Width 8.1 in Depth 3.1 in Height 4.8 in Weight 28.6 oz ¦ Video bar - Width 33.1 in Depth 4.6 in Height 5.3 in Weight 7.1 lbs |
| Built-in Devices | Stereo speakers, dual camera, 2 MEMS microphones, 2 2nd order microphones |
| Localization | Rest of World |
| Bundled with | Poly TC8 |
| Expansion / Connectivity | |

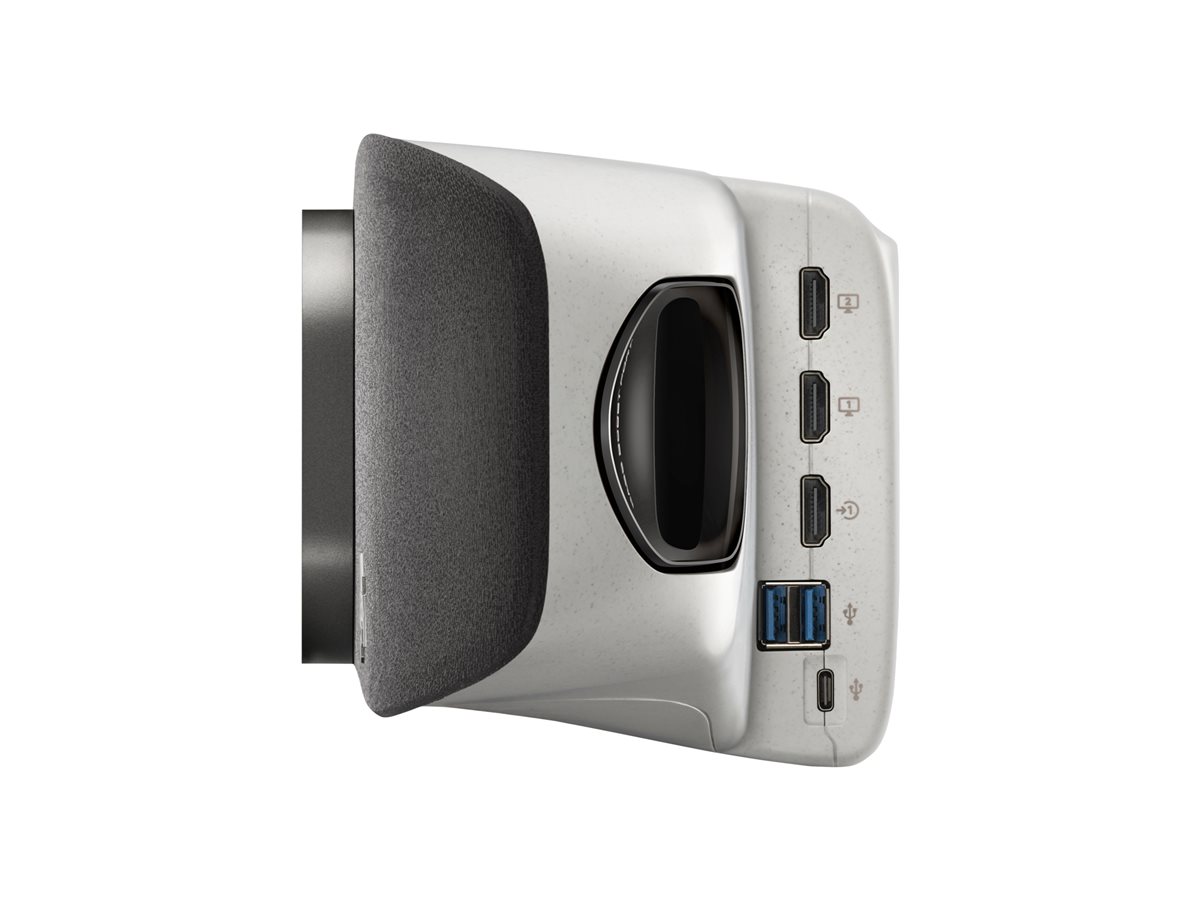

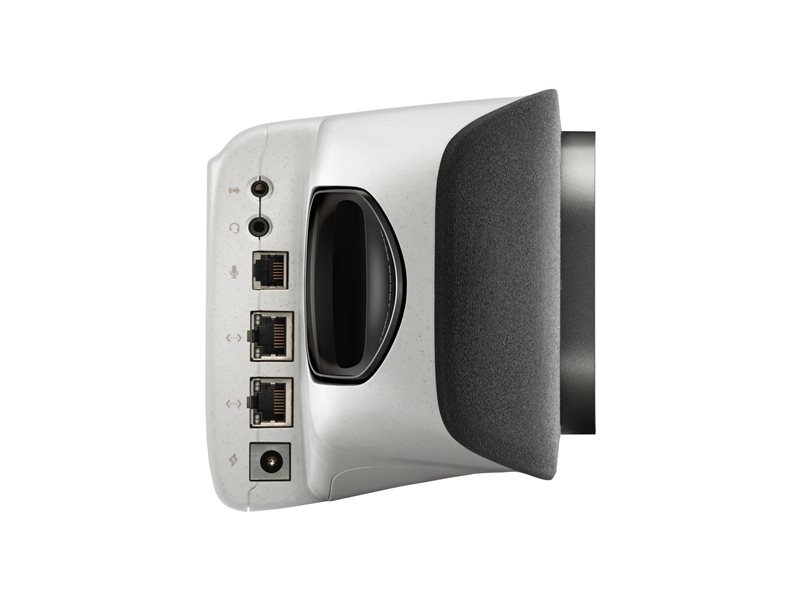

| Interfaces | 1 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 2 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 2 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x USB-C - 24 pin USB-C ¦ 1 x audio - line-in - mini-phone 3.5 mm ¦ 1 x audio - line-out - mini-phone 3.5 mm ¦ 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x microphone |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Miscellaneous | |
| Cables Included | 1 x network cable ¦ 2 x HDMI cable |
| Included Accessories | Wall mount |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPv4, IPv6 |
| Features | OCSP support, auto-uplink (auto MDI/MDI-X), IPv6 support, MIMO technology, IPv4 support, Wi-Fi Miracast ready, Apple AirPlay, Polycom Lost Packet Recovery (LPR) technology, AES encryption, Simple Certificate Enrollment Protocol (SCEP), password protection, dynamic bandwidth allocation, reconfigurable MTU size, electronic privacy shutter |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 80% (non-condensing) |
| Audio Output | |
| Type | Speaker(s) |
| Sound Output Mode | Stereo |
| Audio Input | |
| Type | Quad array microphone - integrated |
| Input Device | |
| Type | 8" touchscreen |
| Connectivity Technology | Wired |
| Features | LED backlight, 1280 x 800 resolution |
| Video Input | |
| Type | Digital camera (color) - integrated |
| Interface Type | HDMI |
| Digital Video Capture Resolution | 1280 x 720, 1600 x 1200, 1024 x 768, 1280 x 1024, 800 x 600, 1280 x 768, 1920 x 1080, 3840 x 2160, 1680 x 1050 |
| Video Modes | 1080/30p, 720/30p, 4K |
| Digital Zoom | 7.3 |
| Features | Auto tracking, auto-framing, 120° field of view (horizontal), Miracast connectivity, 70° field of view (horizontal), 78° diagonal field of view, 140° field of view (diagonal), 2x 20 megapixels sensors |
| Video Output | |
| Max External Resolution | 3840 x 2160 |
| Supported Display Graphics | XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), HDTV (1920x1080), WUXGA (1920 x 1200), HD (1280 x 720), WSXGA+ (1680 x 1050), UHD (3840 x 2160) |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
