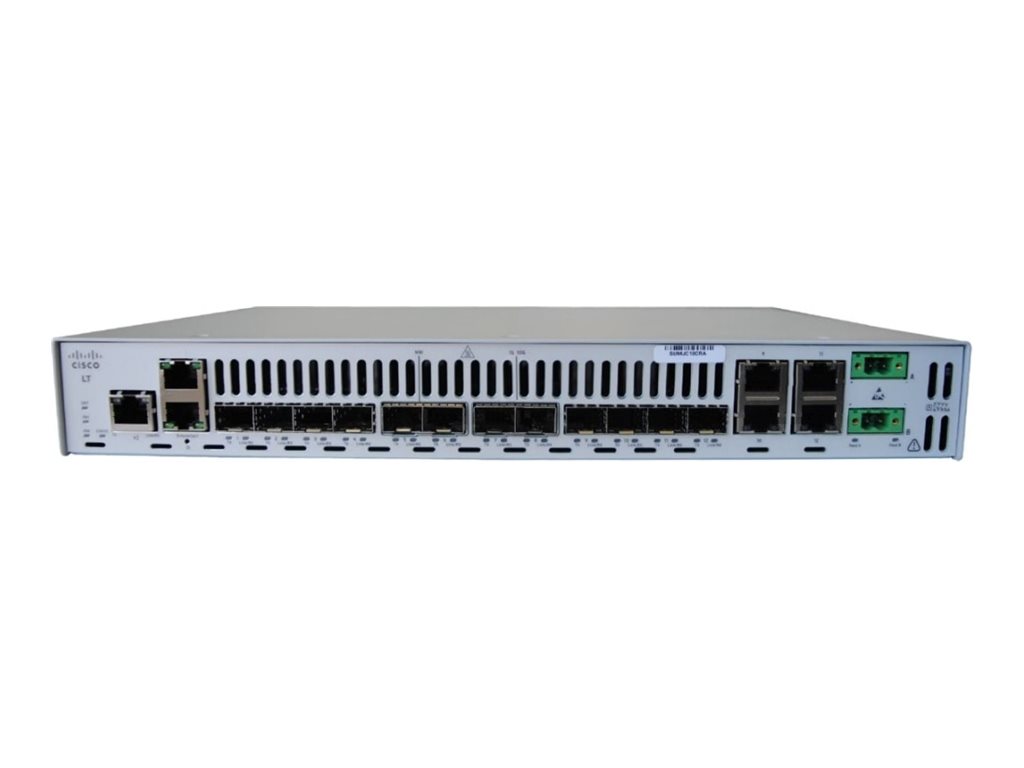

Network monitoring device - 1GbE - front to back airflow - 1U - rack-mountable - for P/N: SD-AR1K-SKYHLTSD
| Main Specifications | |
|---|---|
| Product Description | Cisco Provider Connectivity Assurance Sensor LT-S - network monitoring device |
| Device Type | Network monitoring device |
| Form Factor | Front to back airflow rack-mountable - 1U |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | DC 20 - 57 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 13 in x 8.9 in x 1.8 in |
| Weight | 5.95 lbs |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: SD-AR1K-SKYHLTSD |
| General | |
| Device Type | Network monitoring device |
| Height (Rack Units) | 1U |
| Built-in Devices | 2 x fans |
| Width | 13 in |
| Depth | 8.9 in |
| Height | 1.8 in |
| Weight | 5.95 lbs |
| Expansion / Connectivity | |
| Interfaces | 2 x 1 Gigabit Ethernet/10Gb Ethernet - SFP+ ¦ 4 x 1000Base-X - SFP (mini-GBIC) ¦ 2 x 1 Gigabit Ethernet/10Gb Ethernet - SFP/SFP+ ¦ 4 x 1000Base-T - RJ-45/SFP (mini-GBIC) ¦ 1 x console - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year - response time: 10 days |
| Miscellaneous | |
| MTBF | 39.5 years |
| Compliant Standards | CSA C22.2 No. 60950-1, IEC 60950-1, UL 60950-1, FCC CFR 47 Part 15 Class A, ICES-003, RoHS, WEEE |
| Networking | |
| Form Factor | Rack-mountable |
| Airflow Direction | Front to back airflow |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Routing Protocol | Two-Way Active Measurement Protocol (TWAMP) |
| Remote Management Protocol | IPv4, IPv6 |
| Status Indicators | Critical, link/activity, major, minor, port status, status |
| Features | Quality of Service (QoS), Zero-touch provisioning (ZTP), Support Operations, Administration, and Maintenance (OAM) mechanism |
| Compliant Standards | ITU-T Y.1564, MEF 10.3, ITU-T G.8032, ITU-T Y.1731 |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | DC 20 - 57 V |
| Power Consumption Operational | 90 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Compatibility Information | |
| Designed For | P/N: SD-AR1K-SKYHLTSD |
