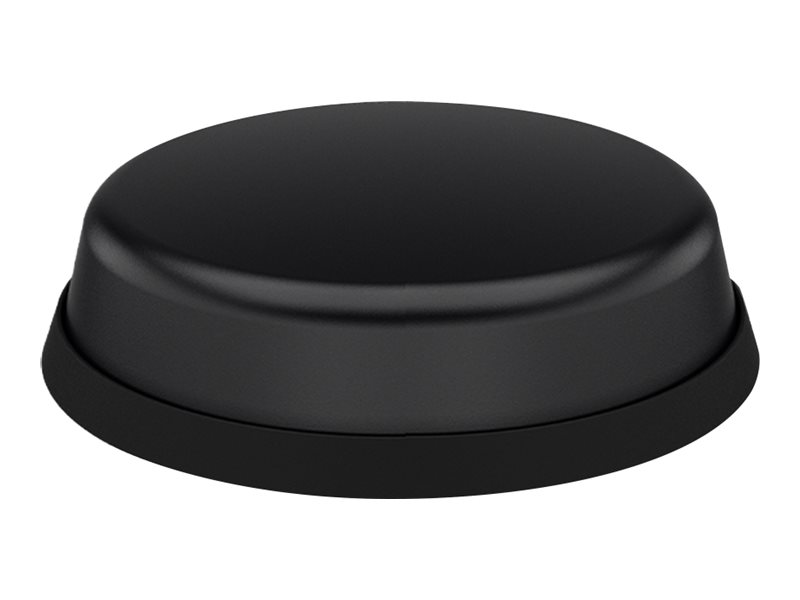

Antenna - cellular, Wi-Fi - omni-directional - panel mountable
| Main Specifications | |
|---|---|
| Product Description | Panorama Antennas L[X]M[X]-24-72-[X] - antenna |
| Device Type | Antenna |
| Intended For | Cellular, Wi-Fi |
| Antenna Placing / Mounting | Panel mountable |
| Dimensions (WxDxH) | 4.8 in x 4.8 in x 1.3 in |
| Color | Black |
| Compatibility | Wi-Fi, 4G, 5G |
| Frequency Range | 2396 - 7125 MHz |
| Directivity | Omni-directional |
| Features | IP69K, IK10, low profile, flame retardant, vandal resistant, halogen free, 4x4 MiMo, VSWR < 2:1 |
| General | |
| Product Type | Antenna |
| Intended For | Cellular, Wi-Fi |
| Antenna Placing / Mounting | Panel mountable |
| Width | 4.8 in |
| Depth | 4.8 in |
| Height | 1.3 in |
| Color | Black |
| Miscellaneous | |
| Cables Included | 4 x Wi-Fi cable - 16.4 ft |
| Antenna | |
| Compatibility | Wi-Fi, 4G, 5G |
| Frequency Range | 2396 - 7125 MHz |
| Impedance | 50 Ohm |
| Max Power | 10 Watt |
| Directivity | Omni-directional |
| Features | IP69K, IK10, low profile, flame retardant, vandal resistant, halogen free, 4x4 MiMo, VSWR < 2:1 |
| Connector Provided | |
| Type | 4 x Wi-Fi antenna - N connector (female) |
