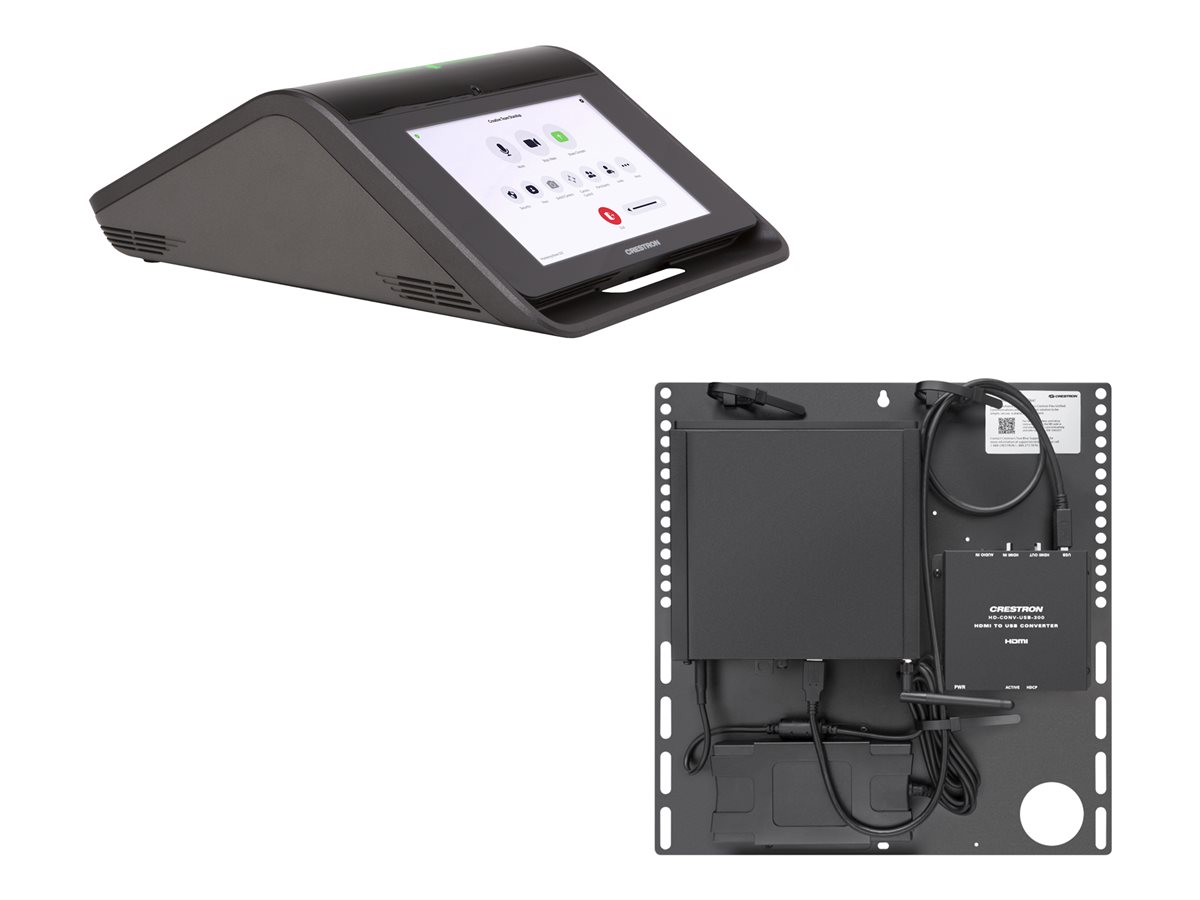

For Medium Microsoft Zoom Rooms - video conferencing kit (touchscreen console, mini-PC, HDMI to USB 3.0 Converter) - Certified for Zoom Rooms - black - power adapter included
| Main Specifications | |
|---|---|
| Product Description | Crestron Flex UC-M50-NC-Z - for Medium Microsoft Zoom Rooms - video conferencing kit - power adapter included |
| Device Type | Video conferencing kit |
| Kit Content | Touchscreen console, mini-PC, HDMI to USB 3.0 Converter |
| Display | 7" TFT / 1280 x 800 |
| Audio Input | Quad array microphone |
| Audio Output | Speaker(s) |
| Input Device | 7" touchscreen (wired) |
| Networking | Network adapter - Ethernet, Fast Ethernet |
| Power | AC 100-240 V (50/60 Hz) |
| Software Certification | Certified for Zoom Rooms |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | Touchscreen console, mini-PC, HDMI to USB 3.0 Converter |
| Dimensions & Weight Details | Console - Width 8.9 in Depth 12.8 in Height 4.1 in Weight 5.5 lbs ¦ Main system - Width 14.5 in Depth 1.9 in Height 15 in Weight 7.9 lbs |
| Built-in Devices | Occupancy sensor |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 1 x USB 2.0 - Micro-USB Type B |
| Miscellaneous | |
| Cables Included | 1 x network cable - 12 ft ¦ 1 x DisplayPort-HDMI cable - 6 ft ¦ 1 x network cable - 7 ft ¦ 1 x HDMI cable - 6 ft ¦ 1 x HDMI cable - 20 ft ¦ 1 x USB type A to micro-USB type B cable - 6 ft ¦ 1 x USB extension cable - 15 ft ¦ 1 x USB-C to USB-A cable - 6 ft |
| Mounting Kit | Included |
| Included Accessories | Mounting hardware, cable management hardware, wall mount kit |
| Software Certification | Certified for Zoom Rooms |
| Compliant Standards | IEEE 1329 Type 1 |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, DHCP, SFTP |
| Features | Auto-negotiation, LDAP support, half duplex mode, full duplex mode, SSH support, auto-switching, password protection, CIP support, digest authentication, SRTP support, HTTPS support, auto-discovery |
| Compliant Standards | IEEE 802.1x, IEEE 802.3at |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Zoom Rooms |
| Audio Output | |
| Type | Speaker(s) |
| Audio Amplifier | Integrated |
| Output Power / Channel | 11 Watt |
| Frequency Response | 90 - 22000 Hz |
| Audio Input | |
| Type | Quad array microphone - integrated |
| Input Device | |
| Type | 7" touchscreen |
| Connectivity Technology | Wired |
| Features | Automatic Gain Control (AGC), 2 capacitive buttons, Limes Audio TrueVoice acoustic echo cancellation, automatic microphone mixing, dynamic noise reduction |
| Display | |
| Technology | TFT active matrix |
| Diagonal Size | 7" |
| Native Resolution | 1280 x 800 |
| Monitor Features | Multi-touch screen |
