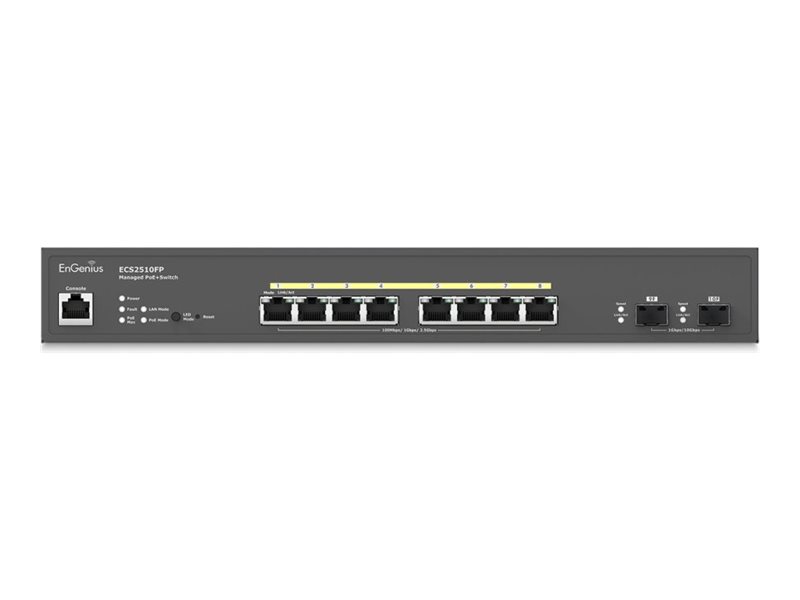

Switch - cloud managed, multi-gig, 2.5 Gb - smart - 8 x 10/100/1000/2.5G (PoE+) + 2 x 10 Gigabit SFP+ - rack-mountable, desktop - PoE+ (240 W) - NFR
| Main Specifications | |
|---|---|
| Product Description | EnGenius Cloud Switch Series ECS2510FP - switch - cloud managed, multi-gig, 2.5 Gb - 8 ports - smart - rack-mountable |
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000/2.5G (PoE+) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 80 Gbps |
| Capacity | IPv6 addresses: 20 ¦ Static ARP entries: 192 ¦ IPv4 routes (static): 63 ¦ IPv6 routes (static): 21 ¦ Multicast groups: 256 ¦ Priority QoS queues: 8 ¦ Port security entries: 256 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 10KB |
| Platform | EnGenius Cloud |
| Routing Protocol | MLD, IGMP, STP |
| Remote Management Protocol | Web GUI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, SSH, CLI, DHCP, Telnet, TFTP, Syslog |
| Features | Cloud managed, full duplex capability, MLD snooping, QoS, CoS, DSCP support, port-based priority, WRR, ACL support, loopback detection, Multicast filtering function, IGMP multicast forwarding, IGMP snooping, MLD multicast forwarding, DHCP relay, DHCP snooping, ARP support, Voice VLAN, port-based VLAN, Protocol-based VLANs support, Energy Efficient Ethernet, SSH server, Telnet server, TFTP client, CLI management, SNTP support, ZTP, 802.1x authentication, DoS attack prevention, Storm Control |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x, IEEE 802.1p, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3af, IEEE 802.3at |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 13 in x 9.1 in x 1.7 in |
| Weight | 5.73 lbs |
| Pricing Type | Not for resale |
| General | |
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Rack-mountable, desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000/2.5G (PoE+) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 240 W |
| Performance | Switching capacity: 80 Gbps |
| Capacity | IPv6 addresses: 20 ¦ Static ARP entries: 192 ¦ IPv4 routes (static): 63 ¦ IPv6 routes (static): 21 ¦ Multicast groups: 256 ¦ Priority QoS queues: 8 ¦ Port security entries: 256 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | MLD, IGMP, STP |
| Remote Management Protocol | Web GUI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, SSH, CLI, DHCP, Telnet, TFTP, Syslog |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS |
| Features | Cloud managed, full duplex capability, MLD snooping, QoS, CoS, DSCP support, port-based priority, WRR, ACL support, loopback detection, Multicast filtering function, IGMP multicast forwarding, IGMP snooping, MLD multicast forwarding, DHCP relay, DHCP snooping, ARP support, Voice VLAN, port-based VLAN, Protocol-based VLANs support, Energy Efficient Ethernet, SSH server, Telnet server, TFTP client, CLI management, SNTP support, ZTP, 802.1x authentication, DoS attack prevention, Storm Control |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x, IEEE 802.1p, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3af, IEEE 802.3at |
| RAM | 512 MB SDRAM |
| Flash Memory | 128 MB |
| Status Indicators | Power, fault, PoE max, PoE, LAN, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1G/2.5G (PoE+) RJ-45 ¦ 2 x 10Gbit LAN SFP+ ¦ 1 x console RJ-45 |
| Miscellaneous | |
| Included Accessories | Power cord |
| Cables Included | 1 x network cable |
| Rack Mounting Kit | Included |
| Pricing Type | Not for resale |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 13 in |
| Depth | 9.1 in |
| Height | 1.7 in |
| Weight | 5.73 lbs |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | EnGenius Cloud |
