Wireless router - WWAN 10GbE, 2.5GbE - 5G, 3G, 4G - remanufactured
| Main Specifications | |
|---|---|

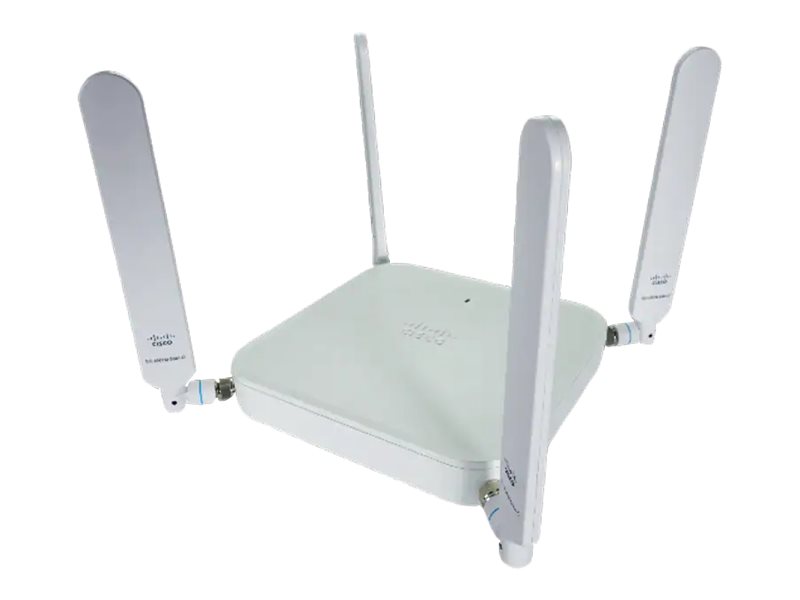

| Product Description | Cisco Catalyst CG522-E - wireless router - WWAN - 5G, 3G, 4G - desktop |
| Device Type | Wireless router - wireless cellular modem |
| Enclosure Type | Desktop |
| Cellular Protocol | WCDMA, 4G LTE, 5G FR1 |
| Generation | 5G, 3G, 4G |
| Cellular Band | LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B34, LTE B39, LTE B38, LTE B40, LTE B41, LTE B42, LTE B46, LTE B48, LTE B66, LTE B71, WCDMA B1, WCDMA B19, WCDMA B9, 5G n1, 5G n2, 5G n28, 5G n3, 5G n41, 5G n5, 5G n66, 5G n71, 5G n77, 5G n78, 5G n79 |
| Data Link Protocol | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Remote Management Protocol | CLI |
| Features | SD-WAN support, 4x4 MIMO technology, MPLS support, manageable, QoS, WWAN support, ZTP, SUDI |
| Dimensions (WxDxH) | 9.9 in x 9.9 in x 8.3 in |
| Pricing Type | Remanufactured |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless router |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Remote Management Protocol | CLI |
| Features | SD-WAN support, 4x4 MIMO technology, MPLS support, manageable, QoS, WWAN support, ZTP, SUDI |
| Compliant Standards | EN 61000-3-2, IEC 61000-3-2, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, FDA, EN 301 489-1, FCC CFR47 Part 15 B Class A, EN 300 386, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, EN 62368-1, IEC 62368-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032 Class A, EN 55032, CISPR 32 Class A, EN 301 489-19, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, EN 55035, IEC/EN 61000-3-3, IEC/EN 60825, ETSI EN 301 489-52 |
| RAM | 1 GB |
| Flash Memory | 4 GB |
| Status Indicators | Boot state, signal strength, SIM status |
| Expansion / Connectivity | |
| Interfaces | 1 x 2.5G/10 Gigabit Ethernet - RJ-45 ¦ Console: 1 x RJ-45 ¦ AUX: 1 x RJ-45 ¦ Antenna: SMA |
| Expansion Slots | 2 (total) / 2 (free) x Micro-SIM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| MTBF | 1,048,340 hours |
| Pricing Type | Remanufactured |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 21 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Communications | |
| Type | Wireless cellular modem |
| Cellular Protocol | WCDMA, 4G LTE, 5G FR1 |
| Generation | 5G, 3G, 4G |
| Cellular Band | LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B34, LTE B39, LTE B38, LTE B40, LTE B41, LTE B42, LTE B46, LTE B48, LTE B66, LTE B71, WCDMA B1, WCDMA B19, WCDMA B9, 5G n1, 5G n2, 5G n28, 5G n3, 5G n41, 5G n5, 5G n66, 5G n71, 5G n77, 5G n78, 5G n79 |
| Max Transfer Rate | 2.2 Gbps |
| Dimensions & Weight | |
| Width | 9.9 in |
| Depth | 9.9 in |
| Height | 8.3 in |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 4 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | LTE Cat 6, LTE Cat 4, LTE Cat 18, LTE Cat 7, 5G |
