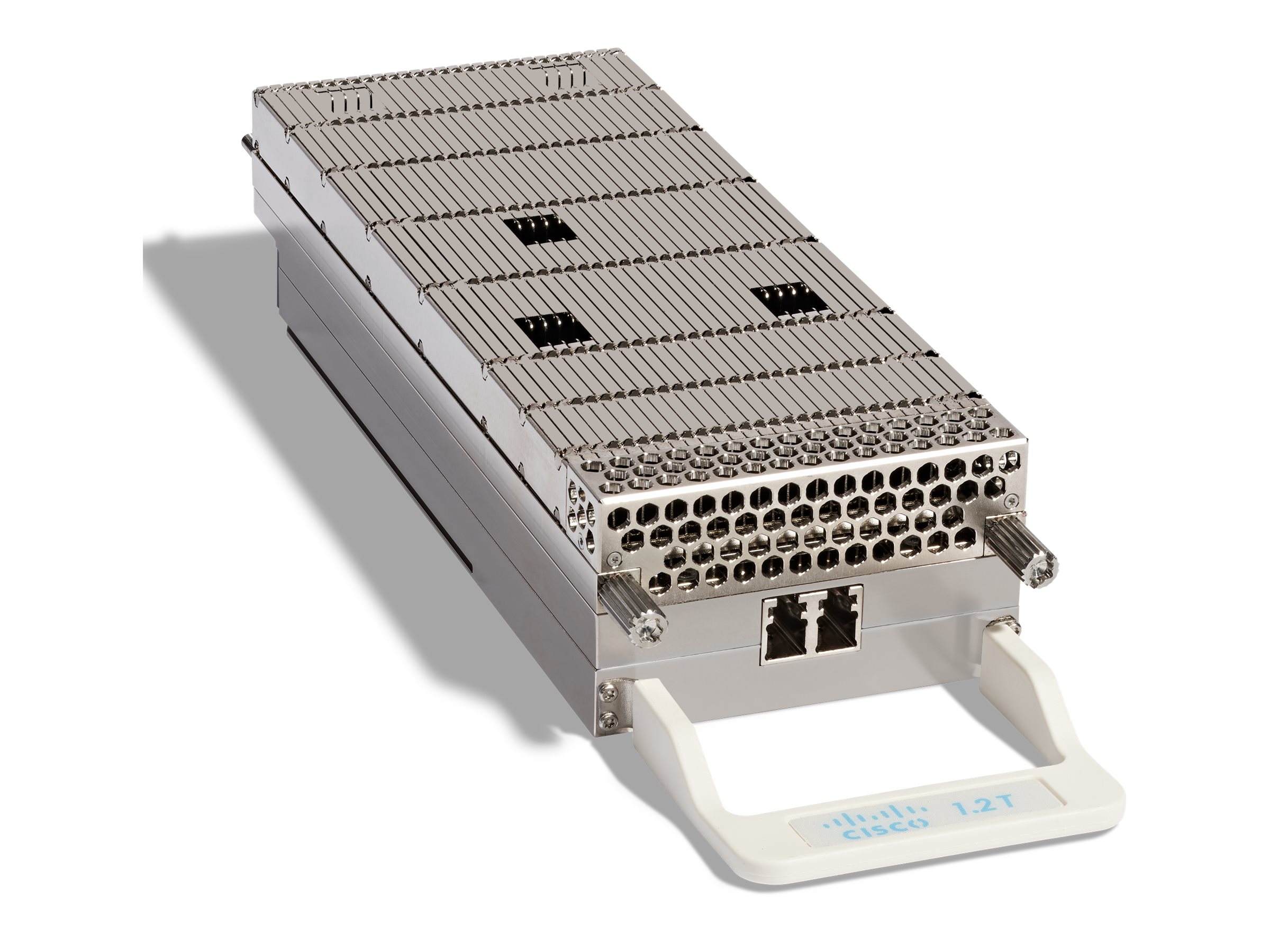

CIM8 transceiver module - 400GbE, 1200 Gigabit Ethernet - LC single-mode - up to 62.2 miles - 1528.77-1566.72 nm
| Main Specifications | |
|---|---|
| Product Description | Cisco - CIM8 transceiver module - 400GbE, 1200 Gigabit Ethernet |
| Device Type | CIM8 transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Data Transfer Rate | 1200 Gbps |
| Optical Wave Length | 1528.77-1566.72 nm |
| Data Link Protocol | 400GbE, 1200 Gigabit Ethernet |
| Max Transfer Distance | 62.2 miles |
| Dimensions (WxDxH) | 2.1 in x 0.5 in x 0.7 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | CIM8 transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x 400Gb Ethernet / 1200Gb Ethernet - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - return to factory - 5 years |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | 400GbE, 1200 Gigabit Ethernet |
| Data Transfer Rate | 1200 Gbps |
| Optical Wave Length | 1528.77-1566.72 nm |
| Line Coding Format | QPSK, 16 QAM, 32 QAM, 64 QAM |
| Max Transfer Distance | 62.2 miles |
| Features | 9µm core size, enhanced c-band |
| Compliant Standards | ITU-T G.652, ITU-T G.653, ITU-T G.655 |
| Power | |
| Power Consumption Operational | 85 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 167 °F |
| Dimensions & Weight | |
| Width | 2.1 in |
| Depth | 0.5 in |
| Height | 0.7 in |
