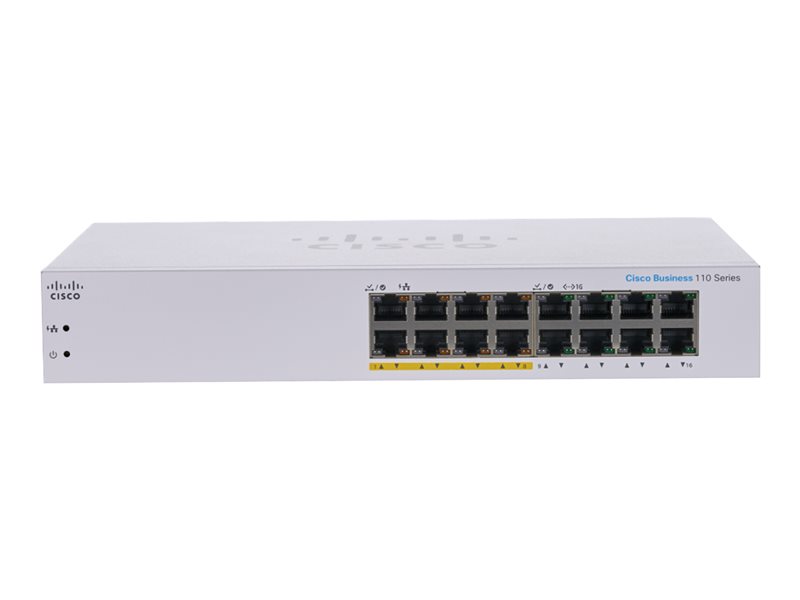

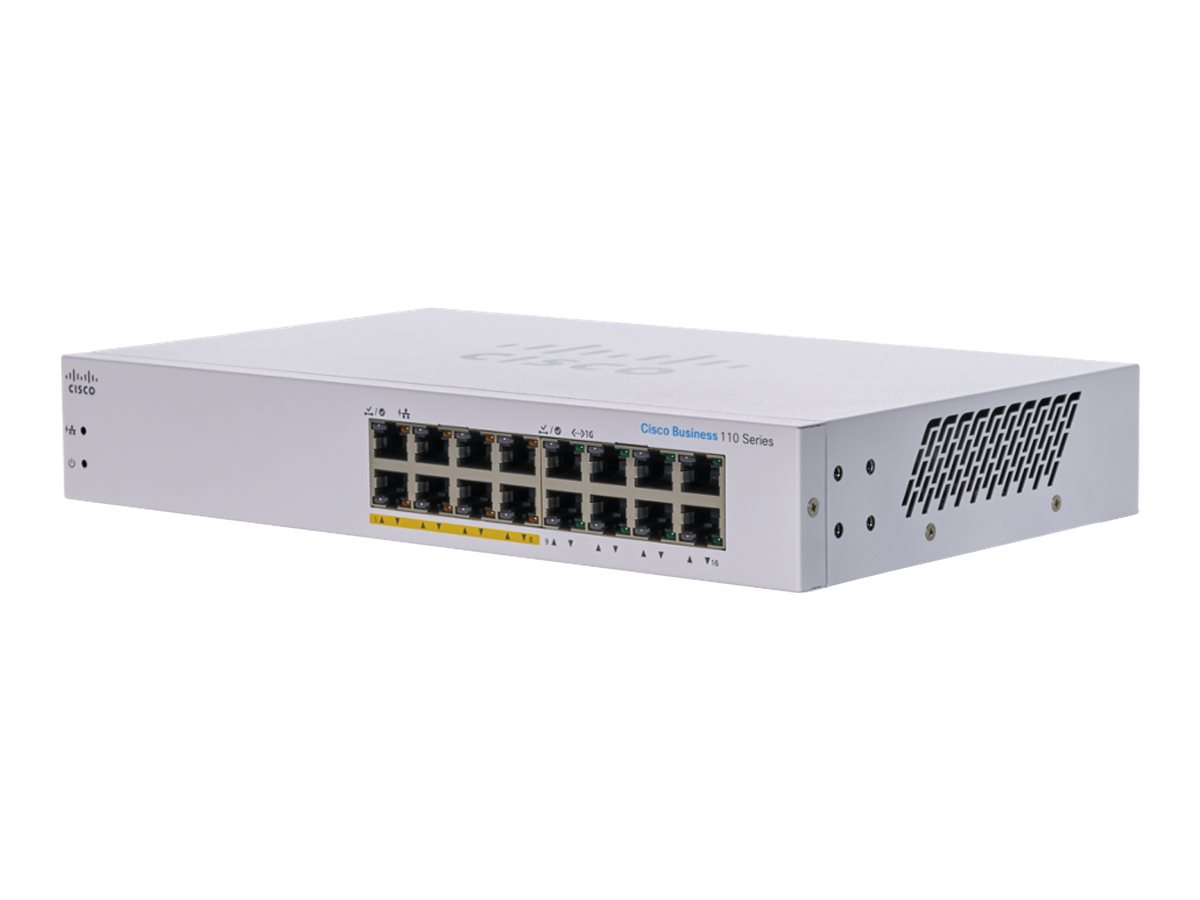

Switch - unmanaged - 8 x 10/100/1000 (PoE) + 8 x 10/100/1000 - rack-mountable, desktop, wall-mountable - PoE (64 W)
| Main Specifications | |
|---|---|
| Product Description | Cisco Business 110 Series 110-16PP - switch - 16 ports - unmanaged - rack-mountable |
| Device Type | Switch - 16 ports - unmanaged |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) + 8 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 64 W |
| Performance | Forwarding performance (64-byte packet size): 23.8 Mpps ¦ Switching capacity: 32 Gbps |
| Capacity | Buffer capacity (MB): 2 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | QoS, Energy Efficient Ethernet, HOL blocking, WRR, loopback detection, Cable Diagnostics Function, auto-uplink (auto MDI/MDI-X), flow control, fanless, security slot (Kensington security lock compatible) |
| Compliant Standards | IEEE 802.3az, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 11 in x 6.7 in x 1.7 in |
| Weight | 2.87 lbs |
| Localization | United Kingdom |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 16 ports - unmanaged |
| Enclosure Type | Rack-mountable, desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) + 8 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 64 W |
| Performance | Forwarding performance (64-byte packet size): 23.8 Mpps ¦ Switching capacity: 32 Gbps |
| Capacity | Buffer capacity (MB): 2 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | QoS, Energy Efficient Ethernet, HOL blocking, WRR, loopback detection, Cable Diagnostics Function, auto-uplink (auto MDI/MDI-X), flow control, fanless, security slot (Kensington security lock compatible) |
| Compliant Standards | IEEE 802.3az, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af |
| Processor | X ARM: 400 MHz |
| RAM | 128 MB |
| Flash Memory | 16 MB |
| Status Indicators | Power, link/activity, PoE |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 PoE ¦ 8 x 10/100/1000 Base-T RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
| Miscellaneous | |
| Included Accessories | Mounting kit |
| MTBF | 1,971,811 hours |
| Compliant Standards | UL 60950, CSA 22.2, FCC CFR47 Part 15 A, FCC Class B certified |
| Localization | United Kingdom |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 80.38 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 11 in |
| Depth | 6.7 in |
| Height | 1.7 in |
| Weight | 2.87 lbs |
