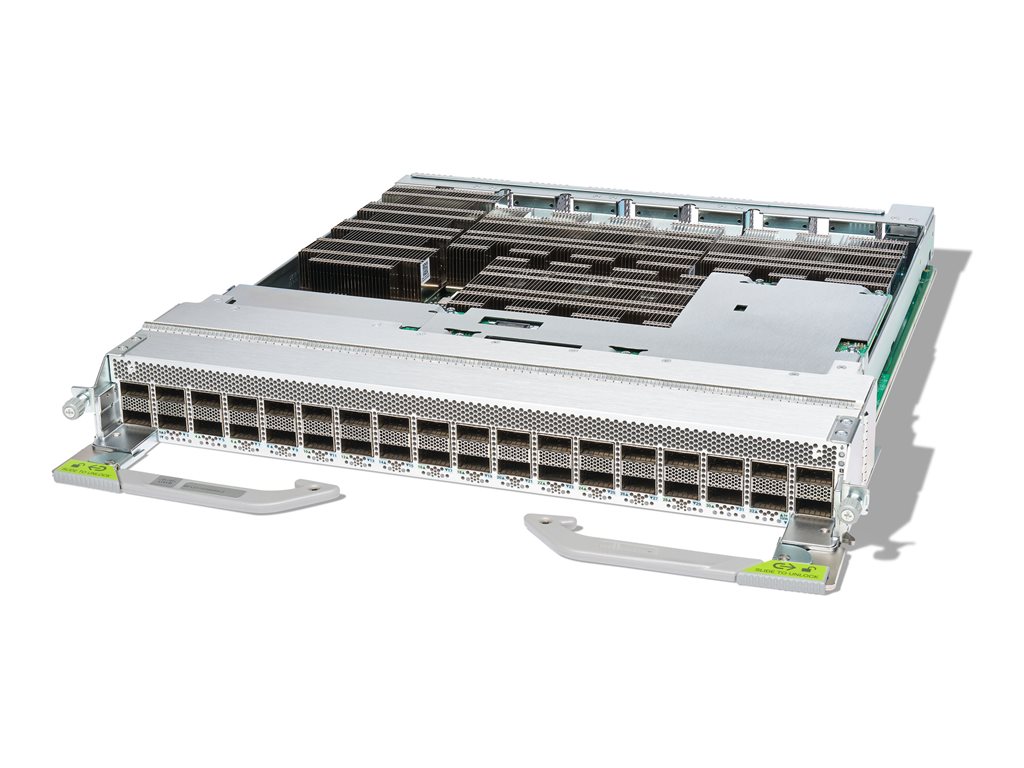

Switch - 12 x 200 Gigabit QSFP28-DD + 24 x 400 Gigabit QSFP56-DD - plug-in module
| Main Specifications | |
|---|---|
| Product Description | Cisco 8000 Series P100-based line card - switch - 36 ports - plug-in module |
| Device Type | Switch - 36 ports |
| Enclosure Type | Plug-in module |
| Subtype | 400 Gigabit Ethernet |
| Ports | 12 x 200 Gigabit QSFP28-DD + 24 x 400 Gigabit QSFP56-DD |
| Performance | Bandwidth: 12 Tbps |
| Features | PTP, Class C timing support |
| Dimensions (WxDxH) | 18.1 in x 17.8 in x 2.1 in |
| Weight | 28 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Switch - 36 ports |
| Enclosure Type | Plug-in module |
| Subtype | 400 Gigabit Ethernet |
| Ports | 12 x 200 Gigabit QSFP28-DD + 24 x 400 Gigabit QSFP56-DD |
| Performance | Bandwidth: 12 Tbps |
| Features | PTP, Class C timing support |
| RAM | 64 GB |
| Built-in Devices | 256 GB SSD |
| Expansion / Connectivity | |
| Interfaces | 12 x 200Gbase-X QSFP28-DD ¦ 24 x 400Gbase-X QSFP56-DD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year - response time: 10 days |
| Miscellaneous | |
| Compliant Standards | WEEE, AS/NZS 62368-1 Third Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, EN 62368-1 Third Edition, IEC 62368-1 Third Edition, UL 62368-1 Third Edition, UL 60950-1 Second Edition, FCC CFR47 Part 15 Class A, AS/NZS CISPR 32 Class A, EN55032 Class A, CISPR 32 Class A, ICES-003 Class A, VCCI-CISPR 32 Class A, KS C 9832 Class A, CNS 15936 Class A, IEC/EN 61000-3-3, EN IEC 61000-3-11, EN IEC 61000-3-2, EN IEC 61000-3-12, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-11, EN 300 386, EN 55032, EN 55035, CISPR 35, EN 61000-6-1, EN 61000-6-2, RoHS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% |
| Dimensions & Weight | |
| Width | 18.1 in |
| Depth | 17.8 in |
| Height | 2.1 in |
| Weight | 28 lbs |
