Wireless access point - 4x4, indoor - 1GbE, 2.5GbE - Wi-Fi 6 - Bluetooth - 2.4 GHz, 5 GHz - cloud-managed - wall / ceiling mountable
| Main Specifications | |
|---|---|

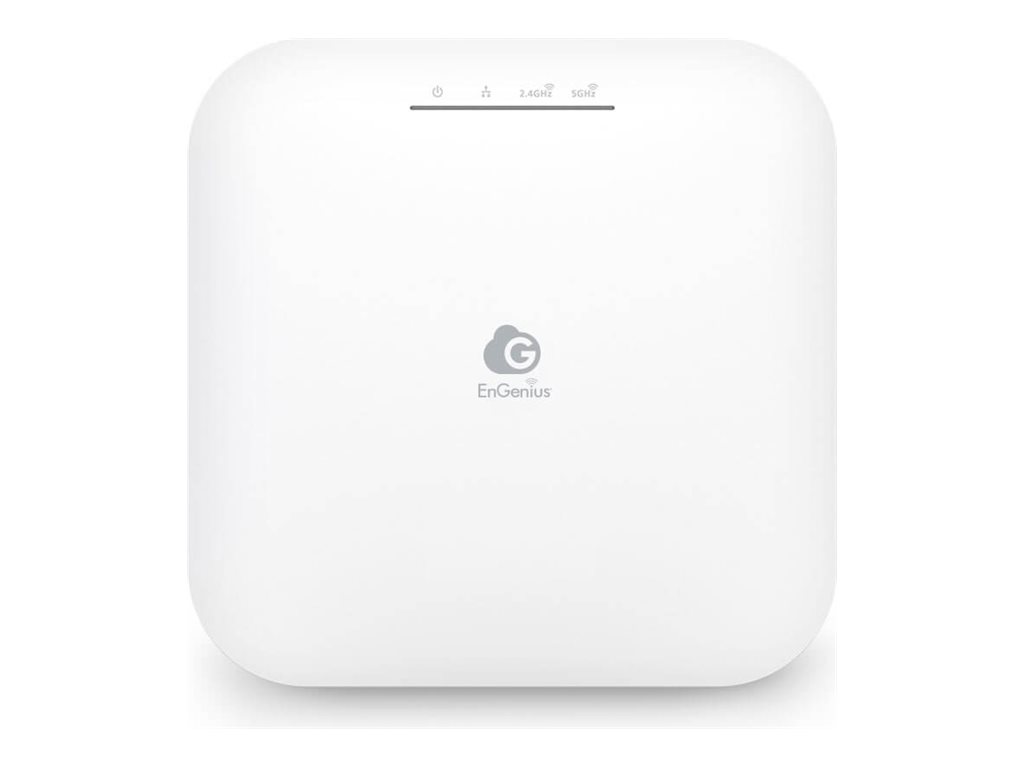

| Product Description | EnGenius ECW230S - wireless access point - 4x4, indoor - Wi-Fi 6, Bluetooth - cloud-managed |
| Device Type | Wireless access point |
| Form Factor | Wall / ceiling mountable - indoor |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth LE |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 1148 Mbps ¦ Maximum data rate (5 GHz): 2400 Mbps ¦ Transmission power: 23 dBm |
| Capacity | Maximum concurrent users (per radio): 512 ¦ SSIDs total: 8 |
| Included Accessories | Ceiling mount base (15/16" T-rail), ceiling mount base (9/16" T-rail), mounting screws |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Dimensions (WxDxH) | 8.1 in x 8.1 in x 1.3 in |
| Weight | 21.41 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Built-in Devices | BLE sensor |
| Width | 8.1 in |
| Depth | 8.1 in |
| Height | 1.3 in |
| Weight | 21.41 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x 2.5 GBase-T (PoE+) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Ceiling mount base (15/16" T-rail), ceiling mount base (9/16" T-rail), mounting screws |
| Compliant Standards | FCC, IC |
| Networking | |
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless, wired |
| Data Transfer Rate | 2.4 Gbps |
| Line Coding Format | 256 QAM, BPSK, QPSK, 16 QAM, 64 QAM, 1024 QAM, CCK |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth LE |
| Spread Spectrum Method | OFDMA, OFDM, DSSS |
| Network / Transport Protocol | IPv4, IPv6 |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, HTTPS, HTTP |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 1148 Mbps ¦ Maximum data rate (5 GHz): 2400 Mbps ¦ Transmission power: 23 dBm |
| Capacity | Maximum concurrent users (per radio): 512 ¦ SSIDs total: 8 |
| Status Indicators | Power, LAN, 2.4 GHz, 5 GHz, scan, Bluetooth Low Energy (BLE) |
| Features | Wireless Mesh support, 4x4:4 streams, SU-MIMO technology, MU-MIMO technology, zero-wait DFS, client load balancing, auto channel selection, VLAN Tagging, Cross-band VLAN Pass Through, VLAN management, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Wi-Fi Multimedia (WMM) support, hide SSID in beacons, client isolation, client access control, packet aggregation A-MPDU, packet aggregation A-SPDU, Very High Throughput (VHT) support, Transmit Beam-forming (TxBF) ready, Dynamic Frequency Selection (DFS), High-Throughput (HT) support, SSID to VLAN tagging, Management Information Base (MIB), Management Information Base (MIB) II, Private MIB, hidden SSID, MAC address filtering, security slot (Kensington security lock compatible), Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), rogue AP detection, Spectrum Analysis, reset button |
| Encryption Algorithm | WPA2-PSK, WPA2-Enterprise, WPA3-PSK, WPA3-Enterprise, AES |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1D, IEEE 802.11e, IEEE 802.11k, IEEE 802.11r, IEEE 802.3af |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Power Consumption Operational | 19.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 90% |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 8 |
| Directivity | Omni-directional |
