Graphics card - GeForce RTX 4080 - 16 GB GDDR6X - PCIe 4.0 x16 - 3 x DisplayPort, HDMI
| Main Specifications | |
|---|---|

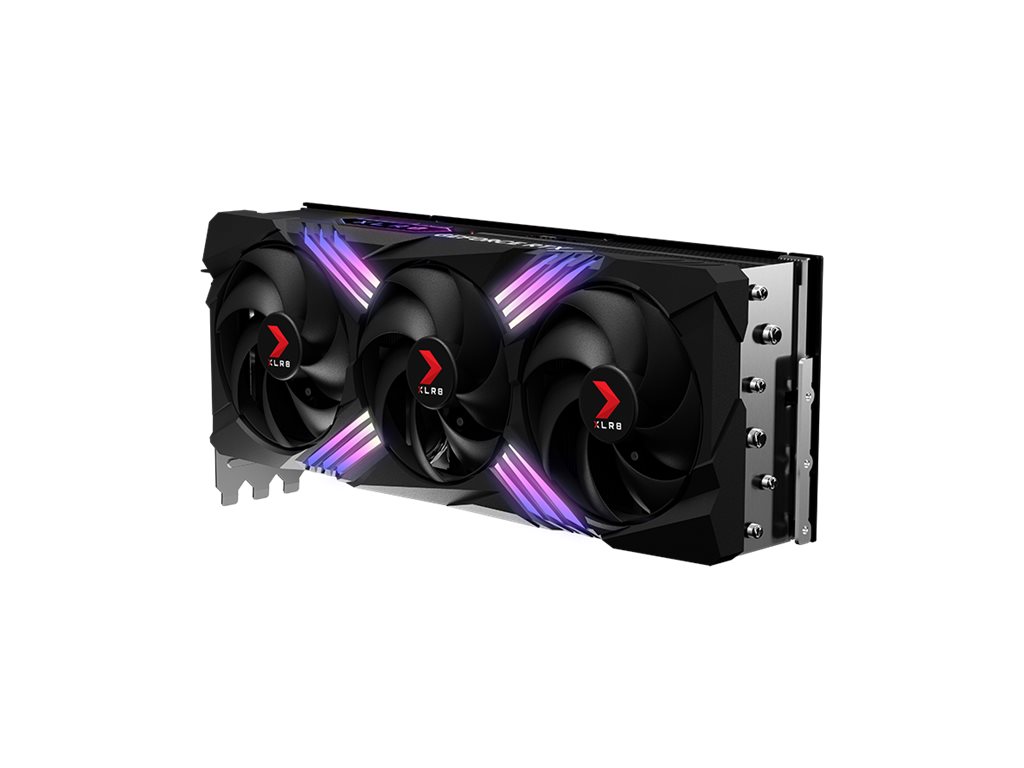

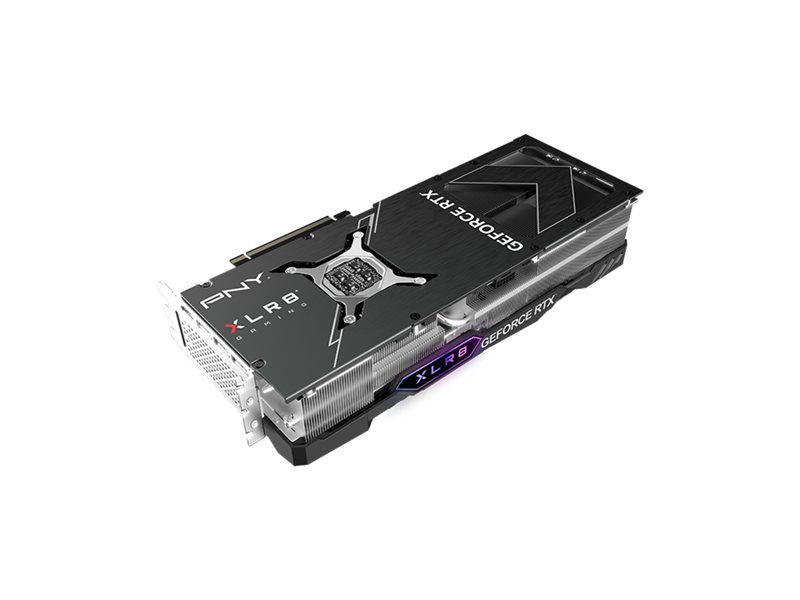

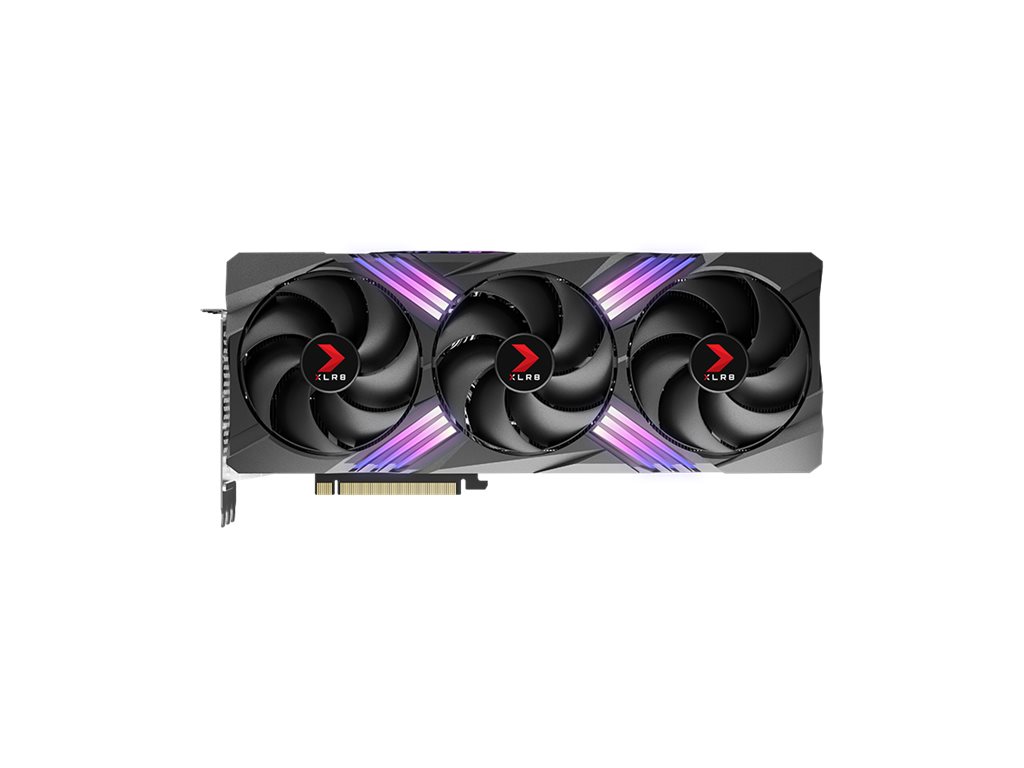

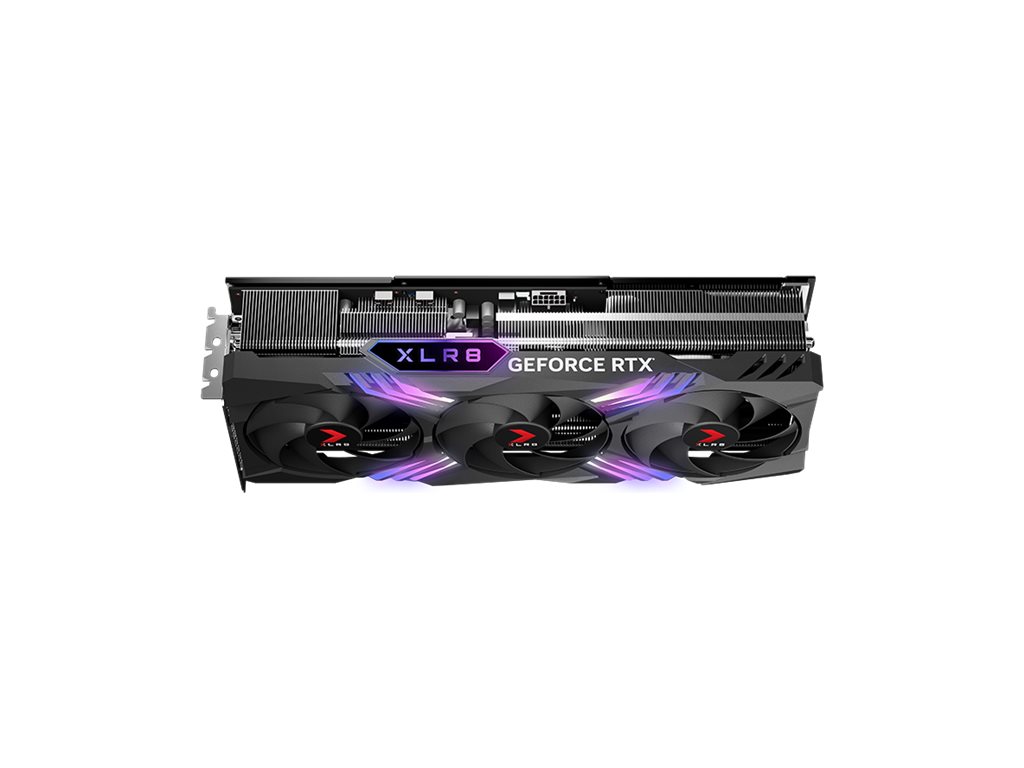

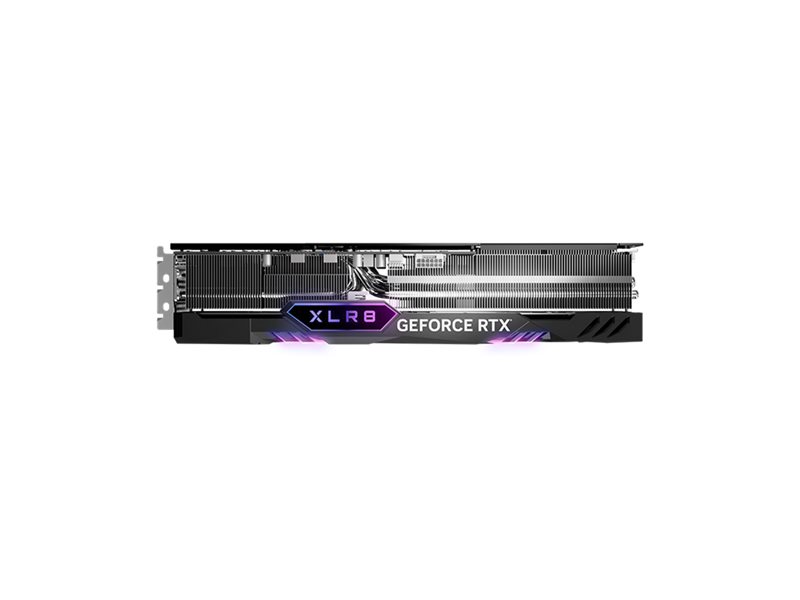

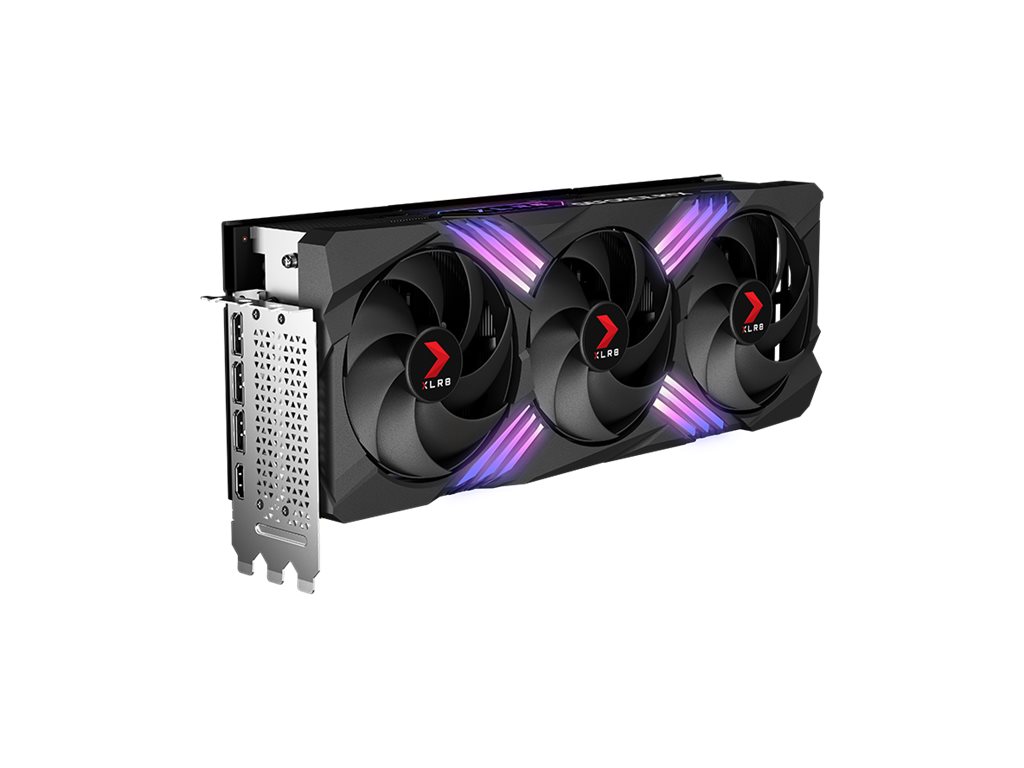

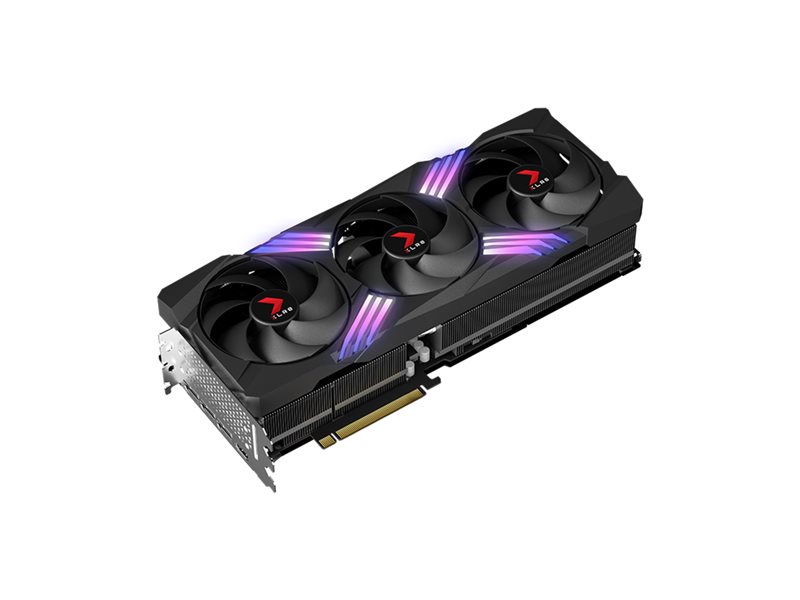

| Product Description | PNY XLR8 GeForce RTX 4080 OC Gaming Verto TF - graphics card - GeForce RTX 4080 - 16 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 4080 |
| Memory | 16 GB GDDR6X |
| Memory Speed | 22.4 Gbps |
| Core Clock | 2205 MHz |
| Boost Clock | 2550 MHz |
| CUDA Cores | 9728 |
| Effective Memory Clock | 2505 MHz |
| Memory Interface | 256-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |

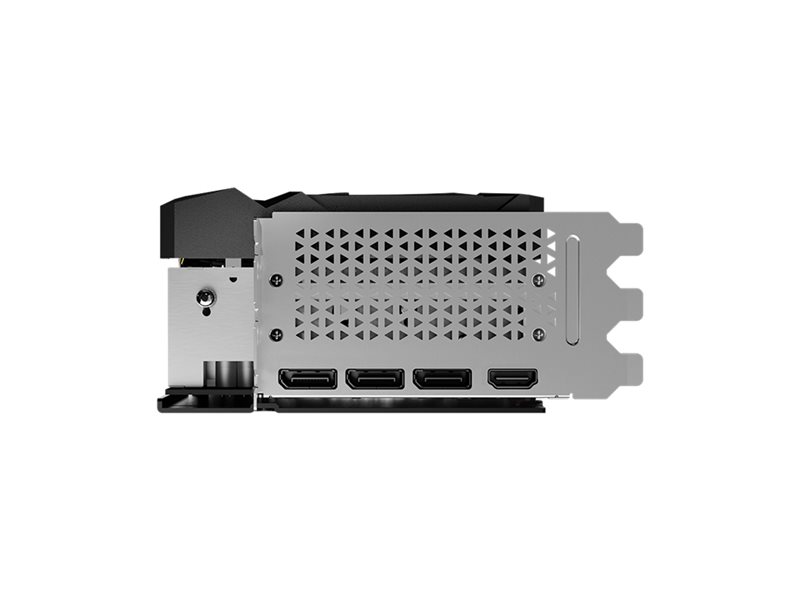

| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6, Vulkan |
| Dimensions (WxDxH) | 2.8 in x 13.1 in x 5.4 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 4080 |
| Core Clock | 2205 MHz |
| Boost Clock | 2550 MHz |
| CUDA Cores | 9728 |
| Max Resolution | 7680 x 4320 at 120 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6, Vulkan |
| Features | 3rd gen Ray Tracing Cores, 4th gen Tensor Cores, NVIDIA Ada Lovelace GPU technology, Nvidia Broadcast, NVIDIA DLSS 3, NVIDIA GPU Boost, NVIDIA G-Sync ready, Nvidia Studio, HDCP |
| Memory | |
| Size | 16 GB |
| Technology | GDDR6X SDRAM |
| Memory Speed | 22.4 Gbps |
| Effective Clock Speed | 2505 MHz |
| Bus Width | 256-bit |
| Bandwidth | 716.8 GBps |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Power Consumption Operational | 320 watt |
| Included Accessories | 16-pin to 3x 8-pin cable adapter |
| Software Included | Velocity X, NVIDIA GeForce Experience |
| Compliant Standards | DisplayPort 1.4a, HDCP 2.3 |
| Width | 2.8 in |
| Depth | 13.1 in |
| Height | 5.4 in |
| System Requirements | |
| Required Power Supply | 750 W |
| Additional Requirements | 16 pin PCI Express power connector |
