Power supply (internal) - 3.3V, 5V, 12V output, +12V rail, fan, ATI CrossFire supported, NVIDIA SLI supported - ATX12V 2.3 - 80 PLUS Gold - AC 100-240 V - 600 Watt - active PFC - black
| Main Specifications | |
|---|---|

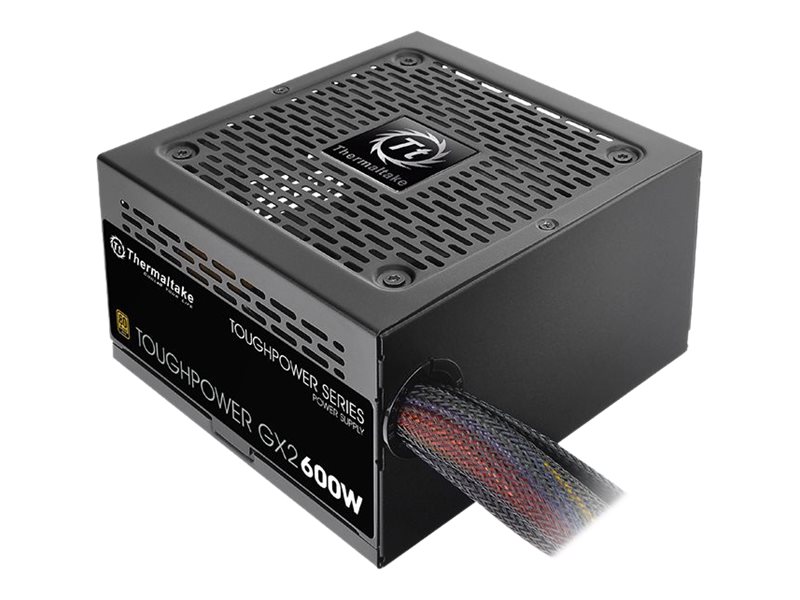

| Product Description | Thermaltake ToughPower GX2 SP-600AH2NCG - power supply - 3.3V, 5V, 12V output, +12V rail, fan, ATI CrossFire supported, NVIDIA SLI supported - 600 Watt |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3 |
| 80 PLUS Certification | 80 PLUS Gold |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 600 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 49 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Output connectors | 1 x power 24 pin ATX ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 pin internal power ¦ 6 x 15 pin Serial ATA power ¦ 1 x 4 pin mini-power connector |
| Cooling System | 120 mm fan |
| Color | Black |
| Dimensions (WxDxH) | 5.9 in x 5.5 in x 3.4 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3 |
| PSU Form Factor | ATX |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Non-modular, single 12V rail |
| Compliant Standards | TUV SUD, CB, EAC, RCM |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 pin internal power ¦ 6 x 15 pin Serial ATA power ¦ 1 x 4 pin mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 600 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 49 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| 80 PLUS Certification | 80 PLUS Gold |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 5.5 in |
| Height | 3.4 in |
