Switch - L3 - managed - 12 x 10 Gigabit Ethernet + 4 x combo 10 Gigabit SFP+ - rack-mountable
| Main Specifications | |
|---|---|

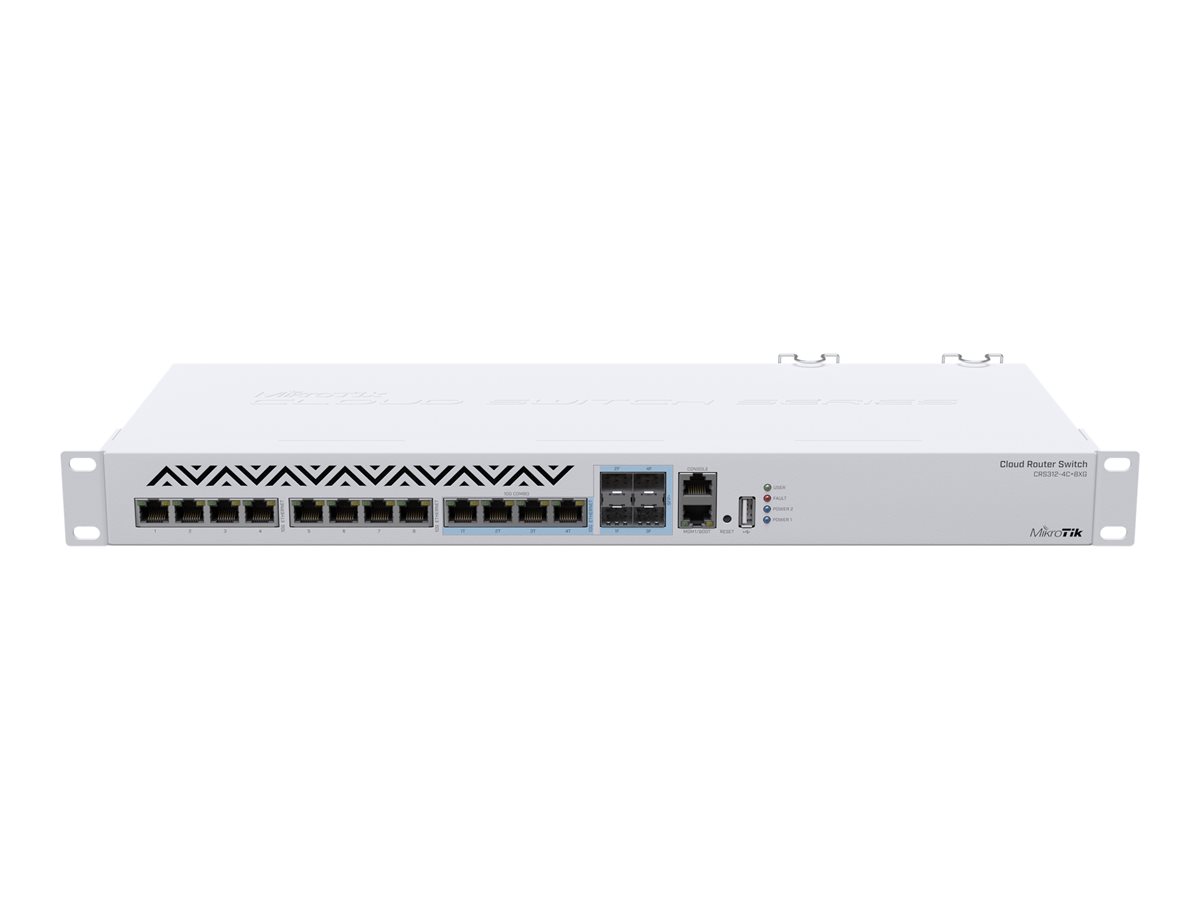

| Product Description | MikroTik Cloud Router Switch CRS312-4C+8XG-RM - switch - 12 ports - managed - rack-mountable |
| Device Type | Switch - 12 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 10 Gigabit Ethernet + 4 x combo 10 Gigabit SFP+ |
| Performance | Non-blocking switching capacity: 120 Gbps ¦ Switching capacity: 240 Gbps ¦ Forwarding rate: 178 Mpps |
| Features | Reset button |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.4 in x 7.2 in x 1.7 in |
| General | |
| Device Type | Switch - 12 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 10 Gigabit Ethernet + 4 x combo 10 Gigabit SFP+ |
| Performance | Non-blocking switching capacity: 120 Gbps ¦ Switching capacity: 240 Gbps ¦ Forwarding rate: 178 Mpps |
| Features | Reset button |
| Processor | 1 QCA9531: 650 MHz |
| RAM | 64 MB |
| Flash Memory | 16 MB |
| Status Indicators | Link/activity, fault, user, power 1, power 2 |
| Expansion / Connectivity | |
| Interfaces | 1 x serial (console) RJ-45 ¦ 1 x management (LAN) RJ-45 ¦ 4 x 10Gbit LAN SFP+ ¦ 12 x 10Gbit LAN RJ-45 ¦ 1 x USB Type A |
| Miscellaneous | |
| Included Accessories | Mounting screws, 2 x power cords, 2 rack mounting ears |
| Rack Mounting Kit | Included |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Consumption Operational | 60 Watt |
| Software / System Requirements | |
| Software Included | MikroTik SwitchOS/RouterOS (licence level 5) |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 7.2 in |
| Height | 1.7 in |
