Wireless bridge - 1GbE - Wi-Fi 5
| Main Specifications | |
|---|---|

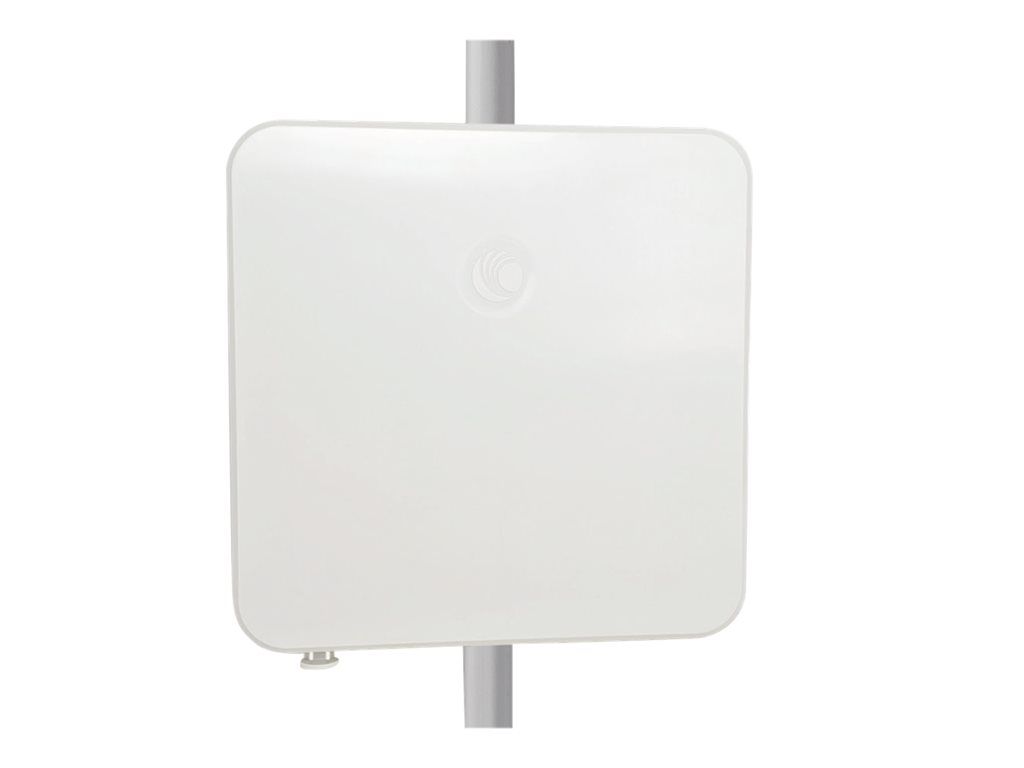

| Product Description | Cambium Networks ePMP Force 300-19R SM - wireless bridge - Wi-Fi 5 |
| Device Type | Wireless bridge |
| Form Factor | External - outdoor |
| Localization | United States |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Frequency Band | 5 GHz |
| Power Over Ethernet (PoE) Supported | Passive PoE |
| Dimensions (WxDxH) | 10.9 in x 1.8 in x 10.9 in |
| Weight | 3.2 lbs |
| General | |
| Device Type | Wireless bridge |
| Ruggedized Design | Outdoor |
| Width | 10.9 in |
| Depth | 1.8 in |
| Height | 10.9 in |
| Weight | 3.2 lbs |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 |
| Miscellaneous | |
| Compliant Standards | IP67, EN 301 893 V2.1.1, EN 302 502 V2.1.1 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 600 Mbps |
| Line Coding Format | 256 QAM, BPSK, OFDM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, IPv4, IPv6 |
| Routing Protocol | IGMP |
| Remote Management Protocol | SNMP 2c, HTTPS, SSH |
| Frequency Band | 5 GHz |
| Features | VLAN support, manageable, surge protection, wall mountable, Spanning Tree Protocol (STP) support, Quality of Service (QoS), pole mountable, 2x2 MIMO technology, IPv4 and IPv6 dual stack |
| Encryption Algorithm | 128-bit AES-CCMP |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.11ac Wave 2 |
| Power | |
| Power Over Ethernet (PoE) Supported | Passive PoE |
| Power Consumption Operational | 12 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Antenna | |
| Antenna | External integrated |
| Gain Level | 19 dBi |
