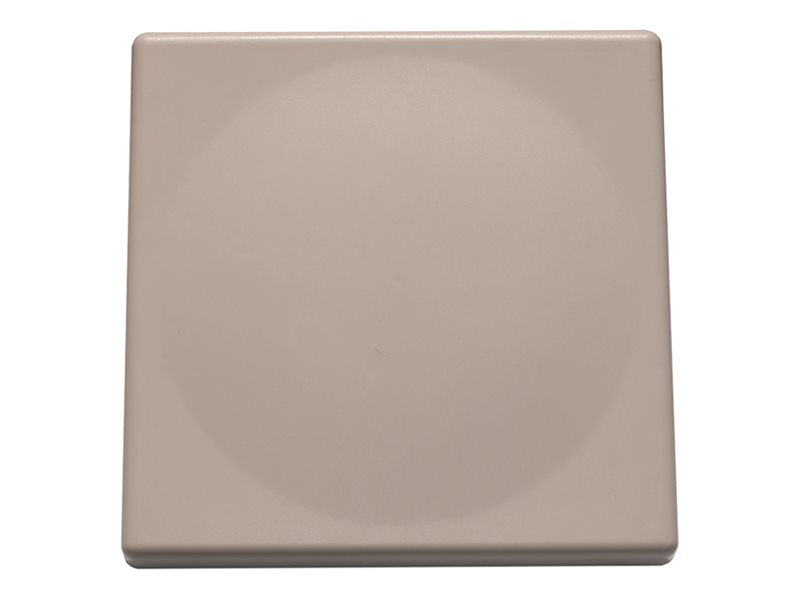

Antenna - 60°, 4x4, male RP-SMA - panel - Wi-Fi - 6 dBi - pole mount, articulating mount
| Main Specifications | |
|---|---|
| Product Description | Cambium Networks antenna - 60°, 4x4, male RP-SMA |
| Product Type | Antenna - 60°, 4x4, male RP-SMA |
| Package Content | Pole mount, antenna cable, power cable (0.91 m) |
| Dimensions (WxDxH) | 10.3 in x 1.4 in x 10.3 in |
| Weight | 2.31 lbs |
| Form Factor | Panel |
| Intended For | Wi-Fi |
| Antenna Placing / Mounting | Pole mount, articulating mount |
| Compatibility | Wi-Fi |
| Frequency Range | 2.4 - 2.5 GHz, 5.15 - 5.85 GHz |
| Gain | 6 dBi |
| General | |
| Product Type | Antenna - 60°, 4x4, male RP-SMA |
| Package Content | Pole mount, antenna cable, power cable (0.91 m) |
| Width | 10.3 in |
| Depth | 1.4 in |
| Height | 10.3 in |
| Weight | 2.31 lbs |
| Miscellaneous | |
| Features | Articulated, quad feed leads, 2 x horizontal polarization, 2 x vertical polarization, 20W max. input power |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Cabling & Wiring | |
| Connector Provided | 4 x RP-SMA male |
| Antenna | |
| Form Factor | Panel |
| Intended For | Wi-Fi |
| Antenna Placing / Mounting | Pole mount, articulating mount |
| Compatibility | Wi-Fi |
| Frequency Range | 2.4 - 2.5 GHz, 5.15 - 5.85 GHz |
| Gain | 6 dBi |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 - 2.5:1 |
| Horizontal Beamwidth | 65° (at 2.4 - 2.5 GHz), 50° (at 5.15 - 5.85 GHz) |
| Vertical Beamwidth | 65° (at 2.4 - 2.5 GHz), 75° (at 5.15 - 5.85 GHz) |
| Impedance | 50 Ohm |
