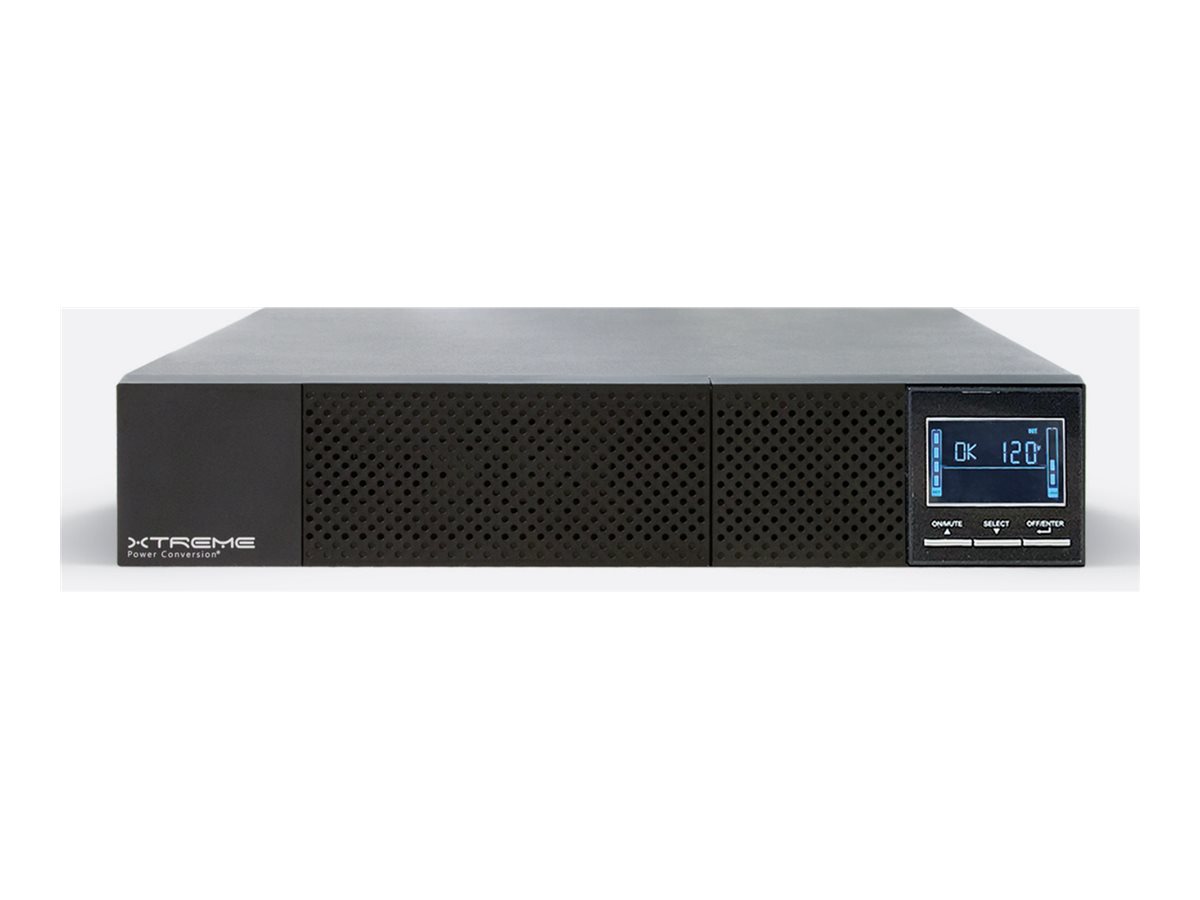

UPS (rack-mountable / external) - AC 120 V - 2000 Watt - 2000 VA - 9 Ah - USB, RS-232 - output connectors: 8 - 2U - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | XPC P91 Series P91-2000 - UPS - 2000 Watt - 2000 VA - TAA Compliant |
| Device Type | UPS - rack-mountable / external |
| Rack Size | 2U |
| Weight | 42.99 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 100/110/115/120/127 V |
| Power Capacity | 2000 Watt / 2000 VA |
| Input Connectors | 1 x power NEMA 5-20P |
| Output connectors | 8 x power NEMA 5-15/20R |
| Battery | Lead acid expandable - 9 Ah |
| Batteries Qty | 4 |
| Run Time (Up To) | 3 min at full load |
| Networking | USB, RS-232 |
| Included Accessories | Tower stand |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 17.2 in x 19 in x 3.5 in |
| General | |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) |
| Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
| Miscellaneous | |
| Included Accessories | Tower stand |
| Cables Included | Power cable 6 ft |
| Rack Mounting Kit | Included |
| Features | Built-in cooling fan, wall mountable, hot-swappable batteries, double conversion, LCD display |
| Compliant Standards | UL, cUL, RoHS, FCC Class A certified |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | USB, RS-232 |
| Software / System Requirements | |
| Software Included | ViewPower |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Sound Emission | 55 dBA |
| Battery | |
| Type | Expandable |
| Quantity | 4 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 3 min at full load ¦ 10 min at half load |
| Features | Maintenance free, sealed |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 55 - 150 V |
| Frequency Provided | 50/60 Hz ± 0.1% |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-20P |
| Power Output Connectors Details | 8 x power NEMA 5-15/20R |
| Output Voltage | AC 100/110/115/120/127 V 50/60 Hz |
| Power Capacity | 2000 Watt / 2000 VA |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Circuit Protection | Circuit breaker |
| Efficiency | 98% |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 19 in |
| Height | 3.5 in |
| Weight | 42.99 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22.2 in |
| Shipping Depth | 27.6 in |
| Shipping Height | 9.4 in |
