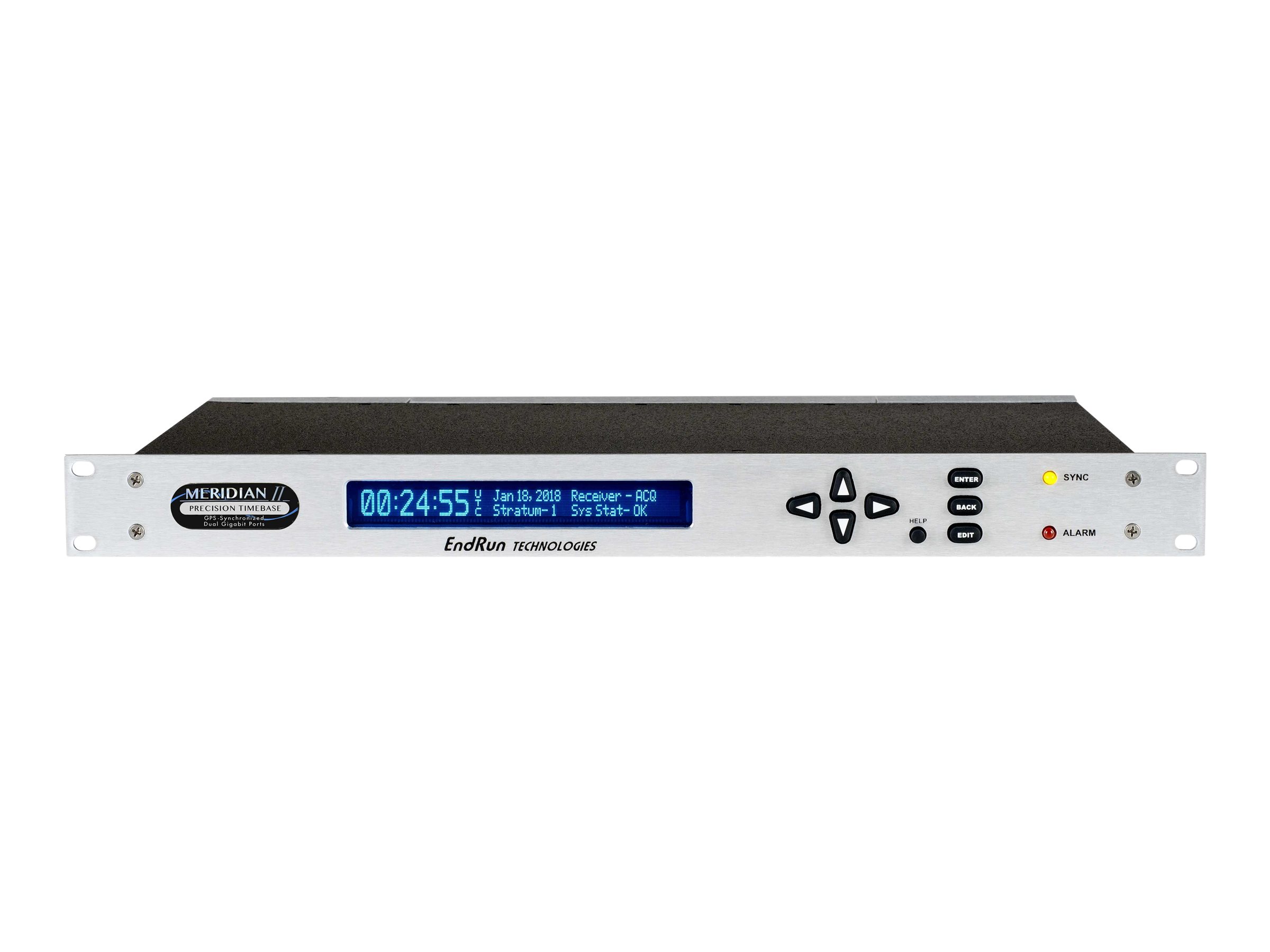

Network time server - 1GbE - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | EndRun Meridian II Precision TimeBase - network time server |
| Device Type | Network time server |
| Form Factor | Rack-mountable - 1U |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Included Accessories | GPS antenna, clamps, mounting pipe |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.2 in x 11.8 in x 1.8 in |
| Weight | 8 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Network time server |
| Height (Rack Units) | 1U |
| Built-in Devices | Status LCD, GPS, keypad |
| Width | 17.2 in |
| Depth | 11.8 in |
| Height | 1.8 in |
| Weight | 8 lbs |
| Expansion / Connectivity | |
| Expansion Slots | 5 (total) / 3 (free) x expansion slot |
| Interfaces | 2 x 1000Base-T - RJ-45 ¦ 1 x antenna - TNC ¦ 1 x RS-232 - DB-9 ¦ 3 x clock input/output timing port - BNC |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | GPS antenna, clamps, mounting pipe |
| Cables Included | 1 x antenna cable - 50 ft |
| MTBF | 30 years |
| Compliant Standards | FCC, RoHS, WEEE |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPv4, IPv6, NTP, FTP, DHCP |
| Remote Management Protocol | SNMP 3, SSH, HTTPS, SNMP 1, SNMP 2c, Telnet |
| Status Indicators | Alarm, status |
| Features | Firmware upgradable, modular design, SNTP support, Syslog support, DHCP client, FTP client |
| Encryption Algorithm | SHA, MD5 |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
