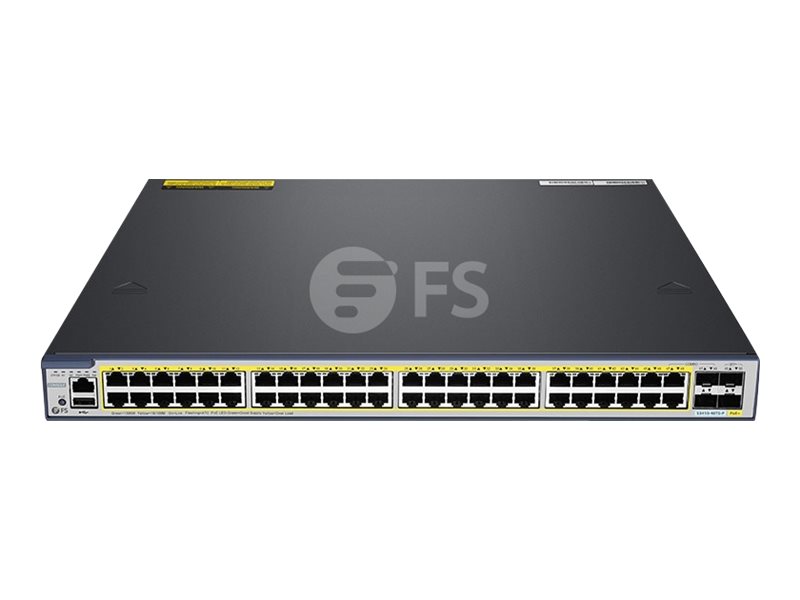

Switch - L2+ - managed - 46 x 10/100/1000 (PoE+) + 2 x combo Gigabit (PoE+) + 2 x 10 Gigabit SFP+ (uplink) - side to side airflow - rack-mountable - PoE+ (740 W)
| Main Specifications | |
|---|---|
| Product Description | FS S3410-48TS-P - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L2+ - managed - stackable |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 46 x 10/100/1000 (PoE+) + 2 x combo Gigabit (PoE+) + 2 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 136 Gbps ¦ Forwarding rate: 132 Mpps |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ IPv4 routes: 500 ¦ IPv6 routes: 500 ¦ ARP table: 1000 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IPv4 routing, static IPv6 routing, RIP, RIPng, OSPFv2, OSPFv3, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, RMON, HTTP, HTTPS, Telnet, CLI, NTP |
| Features | Port-based priority, port sleeping, cable connected detection, EEE, ERPS, DHCP server, DHCP client, DHCP snooping, DHCP relay, ACL support, GVRP, port-based VLAN, Private VLAN, Protocol-based VLANs support, Q-in-Q tunneling, QoS, SP, Voice VLAN, WRR, 1.5MB packet buffer, AAA, Syslog support, sFlow, 2 fans, store and forward |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1s, IEEE 802.1x, IEEE 802.3az, IEEE 802.1p, IEEE 802.1Q |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 14.2 in x 1.7 in |
| Weight | 14.99 lbs |
| General | |
| Device Type | Switch - 48 ports - L2+ - managed - stackable |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 46 x 10/100/1000 (PoE+) + 2 x combo Gigabit (PoE+) + 2 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 136 Gbps ¦ Forwarding rate: 132 Mpps |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ IPv4 routes: 500 ¦ IPv6 routes: 500 ¦ ARP table: 1000 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 4 |
| Routing Protocol | Static IPv4 routing, static IPv6 routing, RIP, RIPng, OSPFv2, OSPFv3, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, RMON, HTTP, HTTPS, Telnet, CLI, NTP |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Port-based priority, port sleeping, cable connected detection, EEE, ERPS, DHCP server, DHCP client, DHCP snooping, DHCP relay, ACL support, GVRP, port-based VLAN, Private VLAN, Protocol-based VLANs support, Q-in-Q tunneling, QoS, SP, Voice VLAN, WRR, 1.5MB packet buffer, AAA, Syslog support, sFlow, 2 fans, store and forward |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1s, IEEE 802.1x, IEEE 802.3az, IEEE 802.1p, IEEE 802.1Q |
| Processor | X Broadcom BCM56150: 1 GHz |
| RAM | 512 MB |
| Flash Memory | 512 MB |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ ¦ 2 x Gigabit LAN SFP ¦ 1 x console RJ-45 ¦ 2 x 10Gbit LAN SFP+ uplink |
| Expansion Slots | 2 (total) / 2 (free) x expansion slot |
| Miscellaneous | |
| Included Accessories | Grounding kit, 4 rubber pads, cable clamp, 6 x M4 screws |
| Rack Mounting Kit | Included |
| MTBF | 200,000 hours |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | FSOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 14.2 in |
| Height | 1.7 in |
| Weight | 14.99 lbs |
