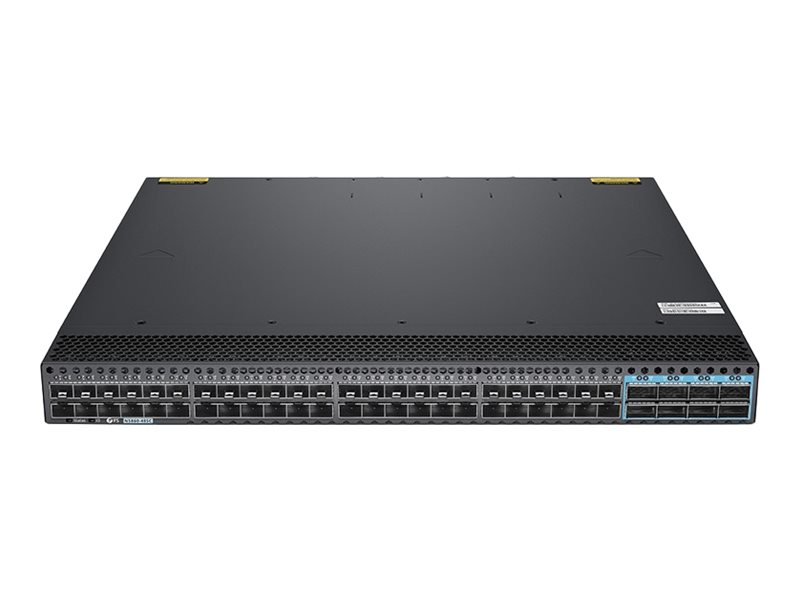

Switch - L3 - managed - 48 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 40/100 Gigabit QSFP28 - front to back airflow - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | FS N5860-48SC - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 40/100 Gigabit QSFP28 |
| Performance | Switching capacity: 2.56 Tbps ¦ Forwarding rate: 1.9 Bpps ¦ Latency: < 1 µs |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ ARP entries: 100000 ¦ IPv6 routes: 64000 ¦ IPv4 routes: 128000 ¦ Packet buffer size: 32 MB |
| MAC Address Table Size | 96K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | BGP-4, BGP-4+, Bidirectional Forwarding Detection (BFD), RIP, ECMP, IS-ISv4, IS-ISv6, OSPFv2, OSPFv3, RIPng, IGMP, VRRP, static IPv4 routing, MSTP, RSTP, STP |
| Remote Management Protocol | NETCONF, SNMP 1, SNMP 2c, SNMP 3, CLI, SSH, Telnet, RMON, gRPC, OAM, SSH-2, Syslog |
| Features | Hot swappable 3+1 fans, MLAG, OpenFlow support, EVPN, VXLAN, REUP, BFD, ECN, PFC, RoCE, zero packet loss, RSPAN, ERSPAN, SPAN, ACL support, RADIUS support, DHCP snooping, ToR, Broadcom BCM56770 switch chip, STP support, MSTP support, RSTP support, IPv4 support, IPv6 support, RLDP, VRRP support, IGMP snooping, IGMP support, MLD snooping, MSDP, PIM snooping, DHCP support, ARP support, VLAN support, High Availability, SNMP support, Link Aggregation |
| Compliant Standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Qbb |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.4 in x 15.2 in x 1.7 in |
| General | |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 40/100 Gigabit QSFP28 |
| Performance | Switching capacity: 2.56 Tbps ¦ Forwarding rate: 1.9 Bpps ¦ Latency: < 1 µs |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ ARP entries: 100000 ¦ IPv6 routes: 64000 ¦ IPv4 routes: 128000 ¦ Packet buffer size: 32 MB |
| MAC Address Table Size | 96K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | BGP-4, BGP-4+, Bidirectional Forwarding Detection (BFD), RIP, ECMP, IS-ISv4, IS-ISv6, OSPFv2, OSPFv3, RIPng, IGMP, VRRP, static IPv4 routing, MSTP, RSTP, STP |
| Remote Management Protocol | NETCONF, SNMP 1, SNMP 2c, SNMP 3, CLI, SSH, Telnet, RMON, gRPC, OAM, SSH-2, Syslog |
| Authentication Method | RADIUS, TACACS+, Secure Shell (SSH) |
| Features | Hot swappable 3+1 fans, MLAG, OpenFlow support, EVPN, VXLAN, REUP, BFD, ECN, PFC, RoCE, zero packet loss, RSPAN, ERSPAN, SPAN, ACL support, RADIUS support, DHCP snooping, ToR, Broadcom BCM56770 switch chip, STP support, MSTP support, RSTP support, IPv4 support, IPv6 support, RLDP, VRRP support, IGMP snooping, IGMP support, MLD snooping, MSDP, PIM snooping, DHCP support, ARP support, VLAN support, High Availability, SNMP support, Link Aggregation |
| Compliant Standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Qbb |
| Processor | 1 x Cavium CN7130: 1.2 GHz |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Expansion / Connectivity | |
| Interfaces | 8 x 40/100Gbit LAN QSFP28 ¦ 1 x management RJ-45 ¦ 1 x console RJ-45 ¦ 1 x USB Type A ¦ 48 x Gigabit / 10Gbit LAN SFP+ |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| MTBF | 330,000 hours |
| Compliant Standards | EAC, FCC, ISO 14001, ISO 9001, REACH, RoHS |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 550 Watt |
| Power Consumption Operational | 300 Watt |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 15.2 in |
| Height | 1.7 in |
