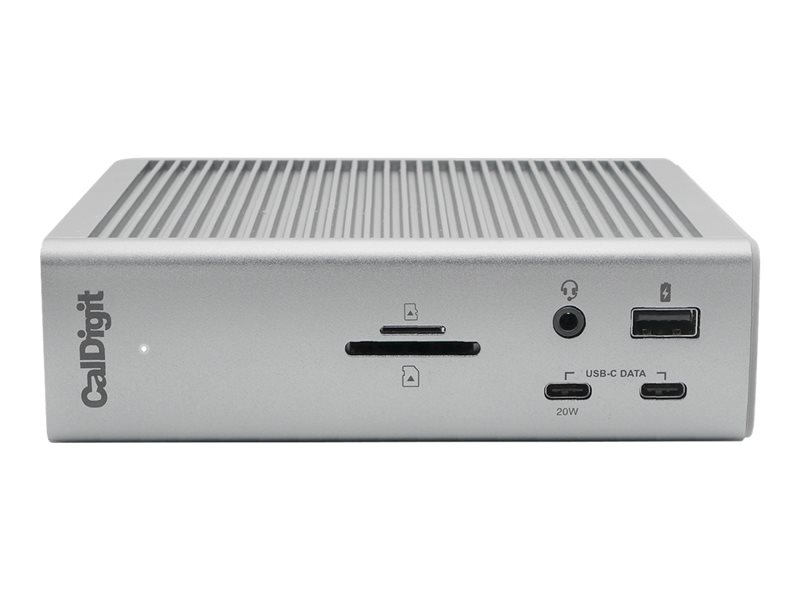

Docking station - Thunderbolt 4 - DP - 1GbE, 2.5GbE - 230 Watt - United States
| Main Specifications | |
|---|---|
| Product Description | Caldigit TS4 - docking station - Thunderbolt 4 - DP - 1GbE, 2.5GbE |
| Product Type | Docking station |
| Docking Interface | Thunderbolt 4 |
| Video Interfaces | DP |
| Dimensions (WxDxH) | 1.7 in x 4.4 in x 5.6 in |
| Weight | 22.57 oz |
| Localization | United States |
| Networking | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | Power adapter 230 Watt Power Provided |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Docking station |
| Width | 1.7 in |
| Depth | 4.4 in |
| Height | 5.6 in |
| Weight | 22.57 oz |
| Localization | United States |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SDXC UHS-II Memory Card ¦ 1 (total) / 1 (free) x microSDXC UHS-II |
| Interfaces | 3 x USB-C 3.2 Gen 2 with Power Delivery ¦ 2 x Thunderbolt 4/USB4 downstream with Power Delivery (15W) ¦ 3 x USB 3.2 Gen 2 with Power Delivery ¦ 2 x USB 3.2 Gen 2 (data only) ¦ 1 x audio / video - DisplayPort ¦ 1 x headphone/microphone combo jack - input / output - mini-phone stereo 3.5 mm ¦ 1 x network - 2.5GBase-T - RJ-45 ¦ 1 x headphones - output - mini-phone mono 3.5 mm ¦ 1 x microphone - input - mini-phone mono 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x Thunderbolt 4 cable - 2.6 ft |
| Included Accessories | 2 x rubber feet |
| Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Power Provided | 230 Watt |
| Video | |
| Max Resolution Details | 8K (Single Display) ¦ 6K (Dual Display) |
| System Requirements | |
| OS Required | Apple macOS Big Sur 11 or later, Windows 10 or later |
