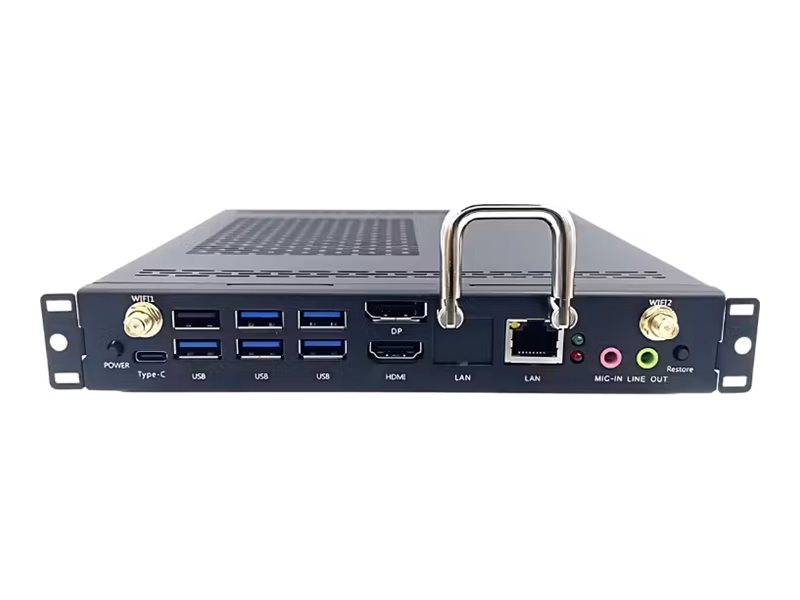

OPS Slot-in PC Core i7 12650H / up to 4.7 GHz - RAM 16 GB - SSD 512 GB - UHD Graphics - IEEE 802.11ax (Wi-Fi 6), Gigabit Ethernet - Win 11 Enterprise - monitor: none
| Main Specifications | |
|---|---|
| Product Description | InFocus INOPS4 - OPS Slot-in PC Core i7 12650H 2.4 GHz - 16 GB - SSD 512 GB |
| Type | Personal computer - OPS Slot-in PC |
| Processor | Intel Core i7 (12th Gen) 12650H / 2.4 GHz (up to 4.7 GHz, (10-core) |
| Processor Main Features | 16 Threads, Hyper-Threading Technology, Intel Smart Cache |
| Cache Memory | 24 MB |
| Cache Per Processor | 24 MB |
| RAM | 16 GB DDR4 SDRAM |
| Hard Drive | SSD 512 GB - M.2 2280 |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics |
| Networking | Bluetooth 4.2, Wi-Fi 6, 802.11a, 802.11b/g/n, Wi-Fi 5, 1GbE |
| OS Provided | Windows 11 Enterprise |
| Dimensions (WxDxH) | 7.7 in x 7.1 in x 1.2 in |
| Weight | 2.65 lbs |
| General | |
| Type | Personal computer |
| Product Form Factor | OPS Slot-in PC |
| Expansion / Connectivity | |
| Interfaces | 5 x USB 3.0 ¦ 1 x USB 2.0 ¦ 1 x USB-C 2.0 ¦ HDMI output ¦ 1 x DisplayPort 1.4 output ¦ 1 x audio line-out ¦ 1 x LAN (Gigabit Ethernet) ¦ Audio line-in |
| RAM | |
| Installed Size | 16 GB |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2666 MHz |
| Rated Memory Speed | 2666 MHz |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Bluetooth 4.2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Fast Ethernet, Gigabit Ethernet |
| Compliant Standards | Bluetooth 4.2, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
| Power | |
| Device Type | Power adapter |
| Voltage Required | DC 19 V |
| Power Consumption Operational | 89 watt |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Cache Memory | |
| Installed Size | 24 MB |
| Cache Per Processor | 24 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | DisplayPort, HDMI |
| Operating System / Software | |
| OS Provided | Windows 11 Enterprise |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 512 GB |
| Dimensions & Weight | |
| Width | 7.7 in |
| Depth | 7.1 in |
| Height | 1.2 in |
| Weight | 2.65 lbs |
| Processor / Chipset | |
| CPU | Intel Core i7 (12th Gen) 12650H |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 4.7 GHz (P-core) / 3.5 GHz (E-core) |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | 16 Threads, Hyper-Threading Technology, Intel Smart Cache |
