Security appliance - with 1 year FortiCare Premium Support + 1 year FortiGuard Enterprise Protection - 25GbE, 40GbE, 50GbE, 100GbE, 200GbE, 400GbE - Bluetooth - front to back airflow - 4U - cloud-managed - rack-mountable
| Main Specifications | |
|---|---|

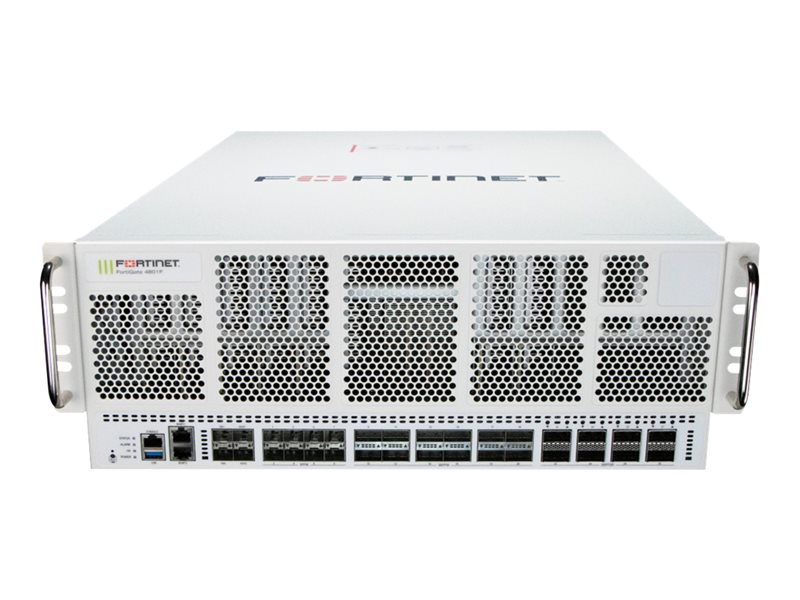

| Product Description | Fortinet FortiGate 4801F-NEBS - security appliance - Bluetooth - cloud-managed - with 1 year FortiCare Premium Support + 1 year FortiGuard Enterprise Protection |
| Device Type | Security appliance |
| Bundled Services | 1 year FortiCare Premium Support + 1 year FortiGuard Enterprise Protection |
| Form Factor | Front to back airflow rack-mountable - 4U |
| Processor | Fortinet FortiASIC CP9/NP7 |
| Hard Drive | 2 TB x 2 |
| Data Link Protocol | Ethernet, Gigabit Ethernet, Fast Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet, 400 Gigabit Ethernet, Bluetooth LE |
| Performance | IPS throughput (enterprise traffic mix): 87 Gbps ¦ NGFW throughput (enterprise traffic mix): 77 Gbps ¦ Threat protection throughput (enterprise traffic mix): 75 Gbps ¦ Firewall throughput (1518-byte UDP): 3.1 Tbps ¦ Firewall throughput (512-byte UDP): 3.1 Tbps ¦ Firewall throughput (64-byte UDP): 0.93 Tbps ¦ IPv6 firewall throughput (1518-byte UDP): 3.1 Tbps ¦ IPv6 firewall throughput (512-byte UDP): 3.1 Tbps ¦ IPv6 firewall throughput (86-byte UDP): 0.93 Tbps ¦ Firewall latency (64-byte UDP): 3.6 µs ¦ Firewall throughput: 1396 Mpps ¦ VPN throughput (512-bit IPSec): 800 Gbps ¦ VPN throughput (SSL): 18 Gbps ¦ SSL inspection throughput: 63 Gbps ¦ Application control throughput: 180 Gbps ¦ CAPWAP throughput: 112 Gbps |
| Capacity | Concurrent TCP sessions: 280000000 ¦ New TCP sessions per second: 950000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSec VPN Tunnels: 40000 ¦ Client to gateway IPSec VPN tunnels: 200000 ¦ Concurrent SSL VPN users: 30000 ¦ SSL inspection CPS: 60000 ¦ SSL inspection concurrent sessions: 30000000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 500 ¦ Number of FortiSwitches: 300 ¦ Number of FortiAP devices: 8192 ¦ Number of FortiAP devices (tunnel): 4096 ¦ Number of FortiToken devices: 20000 |
| Included Accessories | 2 x SR 10Gbps SFP+ transceivers |
| Power | AC 200-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.1 in x 26.1 in x 6.9 in |
| Weight | 90.83 lbs |
| General | |
| Device Type | Security appliance |
| Bundled Services | 1 year FortiCare Premium Support + 1 year FortiGuard Enterprise Protection |
| Height (Rack Units) | 4U |
| Width | 17.1 in |
| Depth | 26.1 in |
| Height | 6.9 in |
| Weight | 90.83 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x USB 3.0 - Type A ¦ 1 x console - RJ-45 ¦ 2 x 1 Gigabit Ethernet/10Gb Ethernet (management) - RJ-45 ¦ 4 x 1Gb Ethernet/10Gb Ethernet/25Gb Ethernet/50Gb Ethernet (High Availability and Auxiliary) - SFP/SFP+/SFP28/SFP56 ¦ 8 x 1Gb Ethernet/10Gb Ethernet/25Gb Ethernet/50Gb Ethernet - SFP/SFP+/SFP28/SFP56 ¦ 12 x 40Gb Ethernet/100Gb Ethernet/200Gb Ethernet - QSFP+/QSFP28/QSFP56 ¦ 8 x 40Gb Ethernet/100Gb Ethernet/200Gb Ethernet/400Gb Ethernet - QSFP+/QSFP28/QSFP56/QSFP-DD |
| Miscellaneous | |
| Included Accessories | 2 x SR 10Gbps SFP+ transceivers |
| Compliant Standards | FCC Part 15 A, RCM, VCCI, UL, cUL, CB, USGv6, NEBS |
| Networking | |
| Form Factor | Rack-mountable |
| Airflow Direction | Front to back airflow |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Gigabit Ethernet, Fast Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet, 400 Gigabit Ethernet, Bluetooth LE |
| Network / Transport Protocol | IPv4, IPv6, HTTPs, HTTP, IPSec, TCP/IP, UDP/IP |
| Remote Management Protocol | HTTPS, HTTP |
| Cloud-Managed | Yes |
| Performance | IPS throughput (enterprise traffic mix): 87 Gbps ¦ NGFW throughput (enterprise traffic mix): 77 Gbps ¦ Threat protection throughput (enterprise traffic mix): 75 Gbps ¦ Firewall throughput (1518-byte UDP): 3.1 Tbps ¦ Firewall throughput (512-byte UDP): 3.1 Tbps ¦ Firewall throughput (64-byte UDP): 0.93 Tbps ¦ IPv6 firewall throughput (1518-byte UDP): 3.1 Tbps ¦ IPv6 firewall throughput (512-byte UDP): 3.1 Tbps ¦ IPv6 firewall throughput (86-byte UDP): 0.93 Tbps ¦ Firewall latency (64-byte UDP): 3.6 µs ¦ Firewall throughput: 1396 Mpps ¦ VPN throughput (512-bit IPSec): 800 Gbps ¦ VPN throughput (SSL): 18 Gbps ¦ SSL inspection throughput: 63 Gbps ¦ Application control throughput: 180 Gbps ¦ CAPWAP throughput: 112 Gbps |
| Capacity | Concurrent TCP sessions: 280000000 ¦ New TCP sessions per second: 950000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSec VPN Tunnels: 40000 ¦ Client to gateway IPSec VPN tunnels: 200000 ¦ Concurrent SSL VPN users: 30000 ¦ SSL inspection CPS: 60000 ¦ SSL inspection concurrent sessions: 30000000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 500 ¦ Number of FortiSwitches: 300 ¦ Number of FortiAP devices: 8192 ¦ Number of FortiAP devices (tunnel): 4096 ¦ Number of FortiToken devices: 20000 |
| Status Indicators | Bluetooth Low Energy (BLE), status, HA, alarm, power, link/activity, speed |
| Features | Firewall protection, SD-WAN support, AI/ML powered, Zero Trust Network Access (ZTNA), SSL inspection, VPN support, CAPWAP support, Virtual Extensible LAN (VXLAN), DDoS Protection, Trusted Platform Module (TPM), High Availability, NGFW appliance, self-healing network, Intrusion Prevention System (IPS), anti-malware protection, URL protection, DNS filtering, Data Loss Prevention (DLP), DDos attack prevention |
| Encryption Algorithm | SSL, TLS 1.3, 256-bit AES, 256-bit SHA |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 4 |
| Max Supported Qty | 4 |
| Power Redundancy | Yes |
| Voltage Required | AC 200-240 V (50/60 Hz) |
| Power Consumption Operational | 1528.8 Watt |
| 80 PLUS Certification | 80 PLUS |
| Software / System Requirements | |
| OS Provided | FortiOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | Fortinet FortiASIC CP9/NP7 |
| Hard Drive | SSD 2 TB x 2 |
