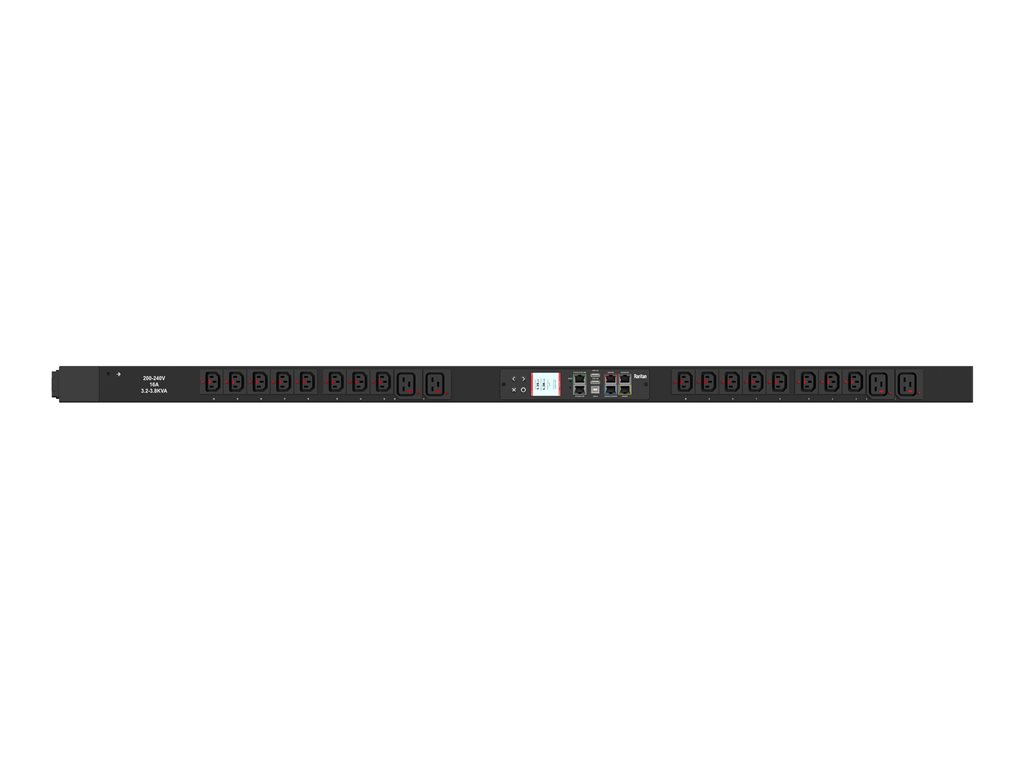

Power distribution unit (rack-mountable) - AC 208 V - 3800 VA - 1-phase - Ethernet 10/100/1000, RS-232, USB - input: NEMA L6-20P - output connectors: 20 (16 x IEC 60320 C13, 4 x IEC 60320 C19) - 0U - 10 ft cord - black
| Main Specifications | |
|---|---|
| Product Description | Raritan PX3-4433V-E2 - power distribution unit - 3800 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 0U |
| Weight | 7.74 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 208 V |
| Output Voltage | AC 208 V |
| Power Capacity | 3800 VA |
| Power Capacity Details | 3.2 kVA at 200 V, 3.8 kVA at 240 V |
| Input Connectors | 1 x power NEMA L6-20P |
| Output connectors | 16 x power IEC 60320 C13 12 A ¦ 4 x power IEC 60320 C19 16 A |
| Networking | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | SSH, Telnet, JSON-RPC, Modbus TCP, SNMP 3, CLI, DHCP, TFTP |
| Color | Black |
| Dimensions (WxDxH) | 2 in x 2.6 in x 51.1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 ¦ 1 x LAN - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x feature - RJ-45 ¦ 1 x console/modem - RJ-45 ¦ 1 x expansion - RJ-45 ¦ 1 x sensor - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Rack Mounting Kit | Included |
| Features | Powder coated, bottom-bottom feed cord entry, Raritan SecureLock Ready, locking C13 connector, locking C19 connector, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per output receptacle, environmental sensor ready, cascadable, LCD display, Auto-Flip Current Display, 16MB SPI Flash, 64MB DDR2 RAM |
| Compliant Standards | IP44, UL, ICES-003, FCC Part 15 A, RoHS, ISO 62053-21, IEC 62053-21 |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | SSH, Telnet, JSON-RPC, Modbus TCP, SNMP 3, CLI, DHCP, TFTP |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% RH |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-20P |
| Power Output Connectors Details | 16 x power IEC 60320 C13 12 A ¦ 4 x power IEC 60320 C19 16 A |
| Output Voltage | AC 208 V |
| Max Electric Current | 20 A |
| Power Capacity | 3800 VA |
| Power Capacity Details | 3.2 kVA at 200 V, 3.8 kVA at 240 V |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 2.6 in |
| Height | 51.1 in |
| Weight | 7.74 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.1 in |
| Shipping Depth | 4.6 in |
| Shipping Height | 62.1 in |
| Shipping Weight | 12.39 lbs |
