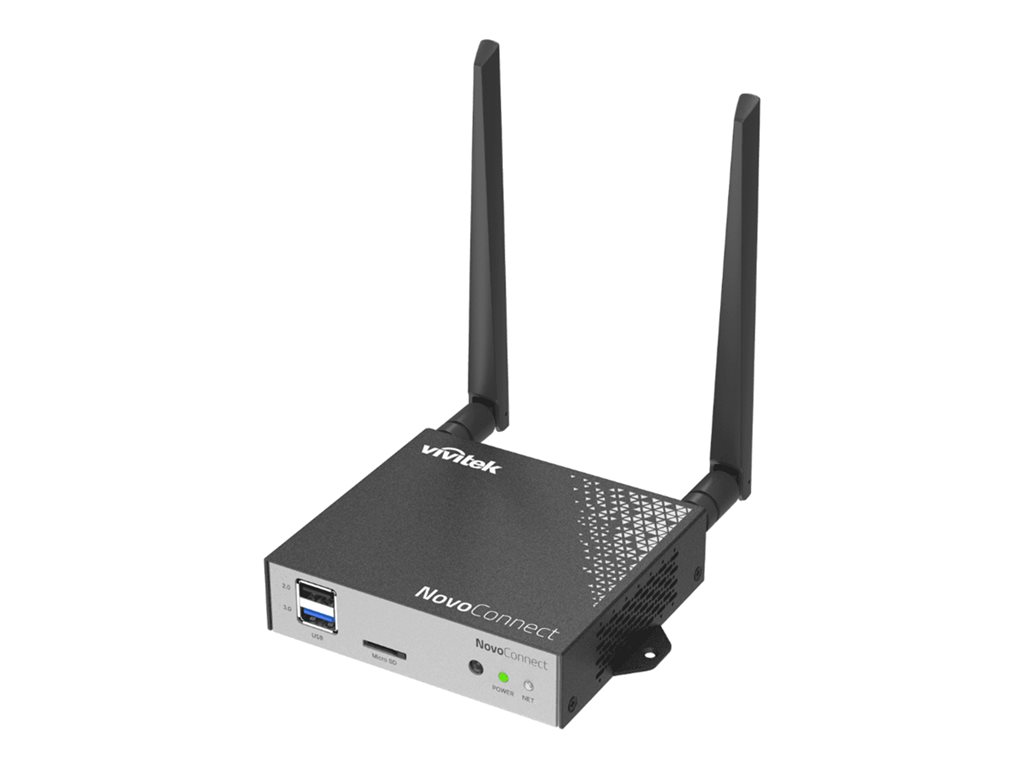

Presentation server - 1GbE - Wi-Fi 5 - Bluetooth - 2.4 GHz, 5 GHz
| Main Specifications | |
|---|---|
| Product Description | Vivitek NovoConnect NC-X500 - presentation server - Wi-Fi 5, Bluetooth |
| Device Type | Presentation server |
| Form Factor | External |
| Flash Memory | 16 GB |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Desktop streaming: 60 fps |
| Included Accessories | Remote control, wall mounting kit |
| OS Required | Microsoft Windows 10 or later, Apple MacOS 10.11 or later, Android 5.0 or later, Apple iOS 9 or later |
| Power | 5 V |
| Dimensions (WxDxH) | 3.8 in x 4.1 in x 1.1 in |
| Weight | 11.15 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Presentation server |
| Width | 3.8 in |
| Depth | 4.1 in |
| Height | 1.1 in |
| Weight | 11.15 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI output ¦ 1 x USB 2.0 - Type A ¦ 1 x USB 3.0 - Type A ¦ 1 x USB-C ¦ 1 x network - RJ-45 ¦ 1 x audio line-out - mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Remote control, wall mounting kit |
| Cables Included | 1 x HDMI cable ¦ 1 x USB power cable |
| Compliant Standards | ISO 27001 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Desktop streaming: 60 fps |
| Features | 2T2R MIMO technology, 4K resolution support, Wi-Fi Miracast ready, Apple AirPlay, 1080p resolution support, 4 to 1 split-screen function, screen mirroring, Google Cast, security slot (Kensington security lock compatible) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Power | |
| Power Device | External power adapter |
| Voltage Required | 5 V |
| Software / System Requirements | |
| OS Required | Microsoft Windows 10 or later, Apple MacOS 10.11 or later, Android 5.0 or later, Apple iOS 9 or later |
| Communications | |
| Supported Flash Memory Cards | microSD |
| Processor / Memory / Storage | |
| Flash Memory | 16 GB |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
