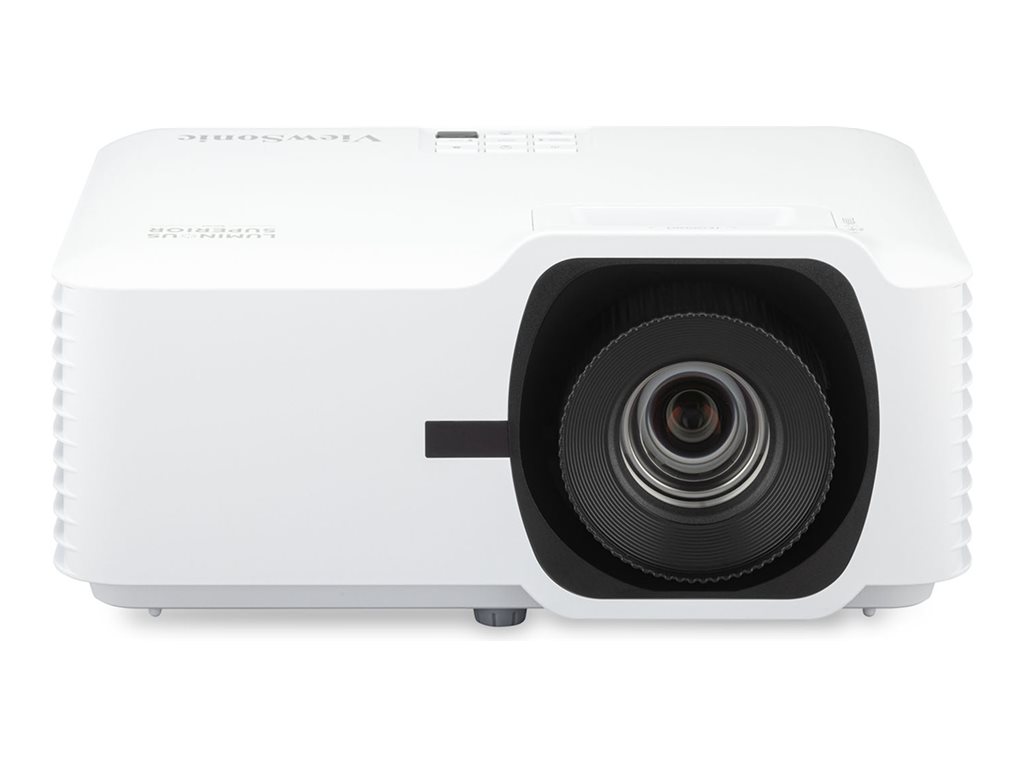

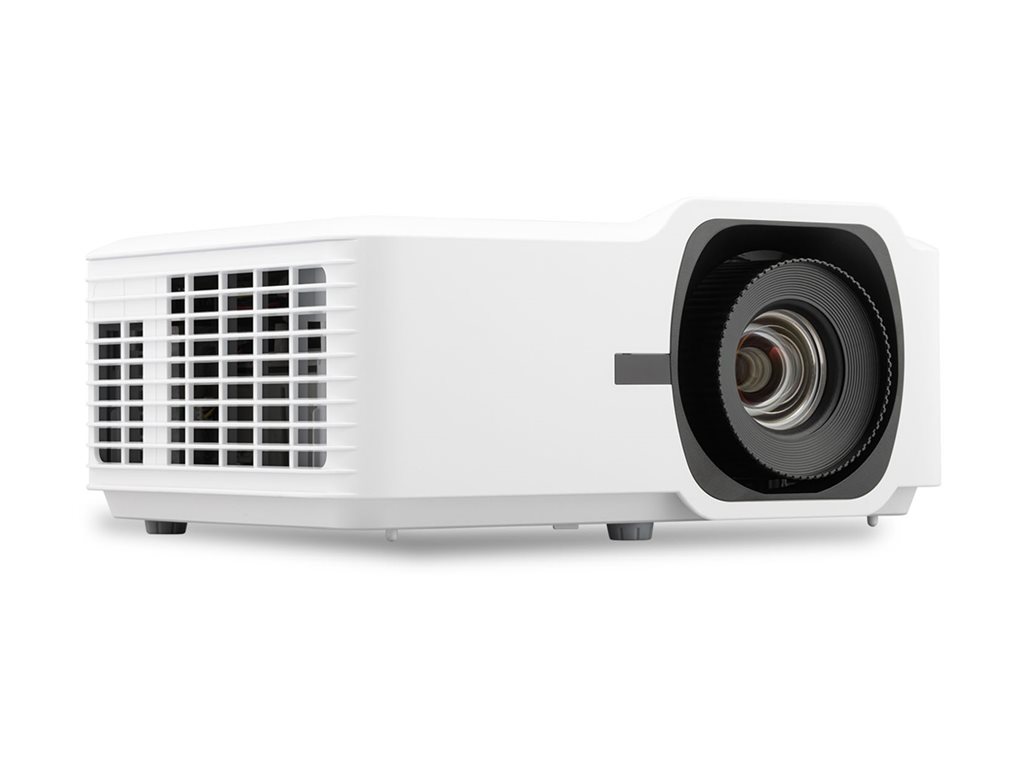

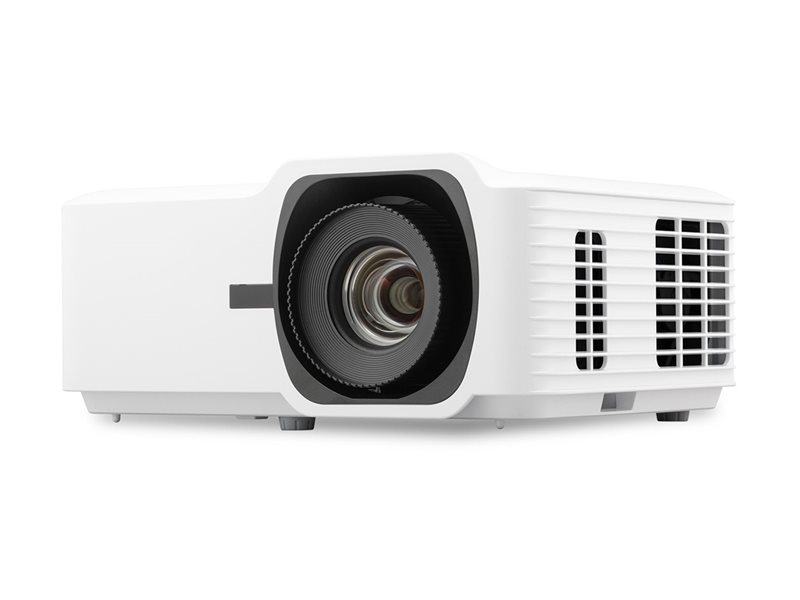

DLP projector - laser/phosphor - 5000 ANSI lumens - Full HD (1920 x 1080) - 16:9 - 1080p - zoom lens - with 1 year Express Exchange Service
| Main Specifications | |
|---|---|
| Product Description | ViewSonic LS741HD - DLP projector - zoom lens |
| Device Type | DLP projector - 1080p |
| Bundled Services | 1 year Express Exchange Service |
| Microdisplay | DMD Chip |
| Brightness | 5000 ANSI lumens |
| Contrast Ratio | 3000000:1 (dynamic) |
| Resolution | Full HD (1920 x 1080) |
| Native Aspect Ratio | 16:9 |
| Color Support | 1.07 billion colors |
| Lens | Zoom lens |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hours - normal mode ¦ Up to 30000 hours - economic mode |
| Video Modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Speakers | Speaker(s) - internal |
| Power | AC 100-240 V |
| Power Consumption Operational | 210 Watt |
| Dimensions (WxDxH) | 11.3 in x 8.5 in x 5.1 in |
| Weight | 6.61 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | DLP projector - 1080p |
| Bundled Services | 1 year Express Exchange Service |
| Expansion / Connectivity | |
| Interfaces | 1 x USB (power only) - 4 pin USB Type A ¦ 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x USB (service) - 4 pin USB Type A ¦ 1 x serial RS-232 ¦ 1 x network - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Included Accessories | Remote control |
| Compliant Standards | cTUVus |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 210 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video Input | |
| Video Interfaces | HDMI |
| Video Modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Dimensions & Weight | |
| Width | 11.3 in |
| Depth | 8.5 in |
| Height | 5.1 in |
| Weight | 6.61 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 15.7 in |
| Shipping Depth | 11 in |
| Shipping Height | 6.1 in |
| Shipping Weight | 10.36 lbs |
| Projector | |
| Microdisplay | DMD Chip |
| Brightness | 5000 ANSI lumens |
| Contrast Ratio | 3000000:1 (dynamic) |
| Image Size | 30 in - 300 in |
| Projection Distance | 3 ft - 49 ft |
| Throw Ratio | 1.4 - 2.24:1 |
| Resolution | Full HD - Full HD (1920 x 1080) (native) / 1920 x 1200 (resized) |
| Native Aspect Ratio | 16:9 |
| Color Support | 1.07 billion colors |
| Max Sync Rate (V x H) | 120 Hz x 102 kHz |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hours - normal mode ¦ Up to 30000 hours - economic mode |
| Controls & Adjustments | Keystone correction |
| OSD Languages | English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, Chinese (simplified), Chinese (traditional), Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Nordic |
| Features | 24/7 operation, 360° projection, 90° portrait mode, 4 Corner Correction, LAN control, PJlink, AMX Control System, Crestron Connected |
| Lens | |
| Type | Zoom lens |
| Zoom Type | Manual |
| Zoom Factor | 1.6x |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -30 / +30 |
| Horizontal Keystone Correction | -30 / +30 |
| Speakers | |
| Type | Internal |
| Output Power / Channel | 15 Watt |
