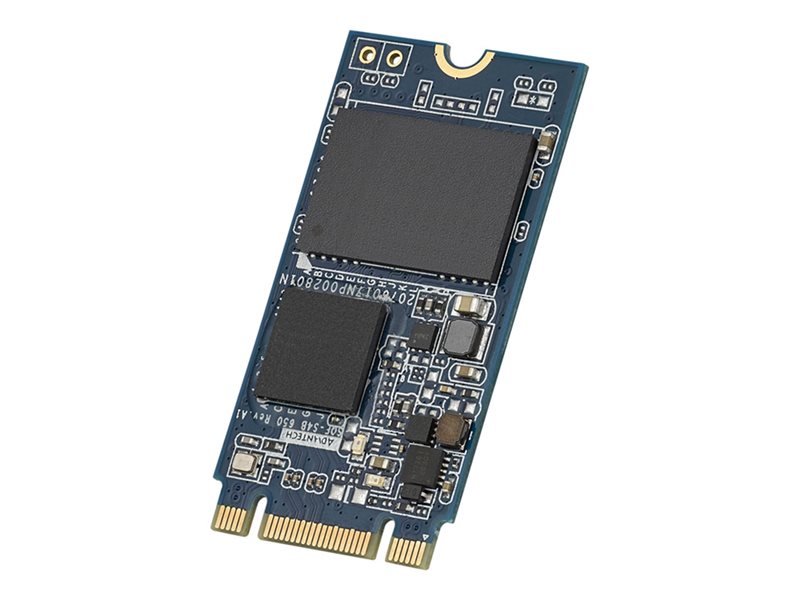

SSD - encrypted - 128 GB - internal - M.2 2242 - SATA 6Gb/s - 256-bit AES - TCG Opal Encryption
| Main Specifications | |
|---|---|
| Product Description | Advantech SQF-S4B 650 - SSD - 128 GB - SATA 6Gb/s |
| Type | Solid state drive - internal |
| Capacity | 128 GB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2242 |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Features | BiCS5 flash, Write Protection |
| Dimensions (WxDxH) | 0.9 in x 1.7 in x 0.1 in |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 128 GB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2242 |
| Interface | SATA 6Gb/s |
| Features | BiCS5 flash, Write Protection |
| Width | 0.9 in |
| Depth | 1.7 in |
| Height | 0.1 in |
| Miscellaneous | |
| Compliant Standards | KCC, RoHS, FCC |
| Power | |
| Power Consumption | 1.35 Watt (read) ¦ 1.75 Watt (write) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 20 g @ 80-2000 Hz |
| Performance | |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 550 MBps (read) / 520 MBps (write) |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | M.2 2242 |
