Video/audio/infrared/serial extender - receiver - RS-232, HDBaseT - up to 328 ft
| Main Specifications | |
|---|---|

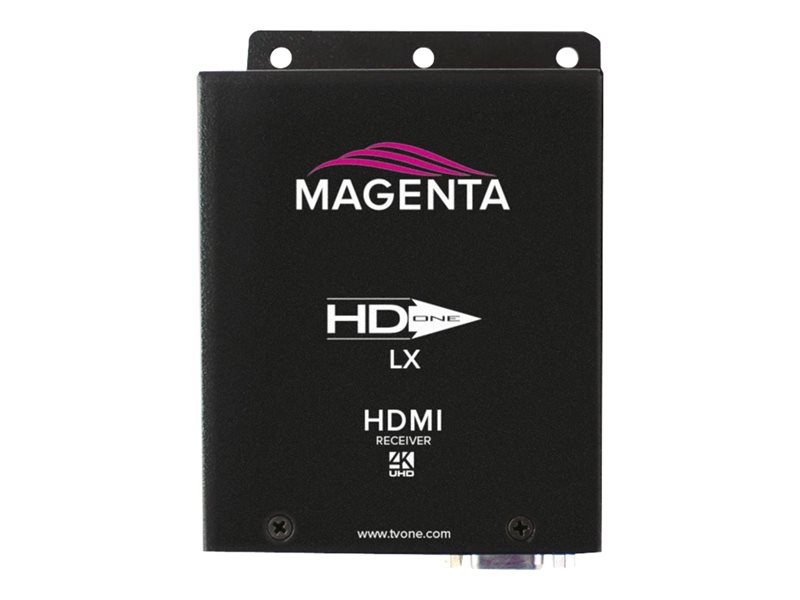

| Product Description | Magenta HD-One LX Receiver - video/audio/infrared/serial extender - RS-232, HDBaseT |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | External |
| Data Link Protocol | RS-232, HDBaseT |
| Max Transfer Distance | 328 ft |
| Dimensions (WxDxH) | 5.1 in x 3.5 in x 1.2 in |
| Weight | 9.88 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 2 x IrDA - mini jack female ¦ 1 x RS-232 - DB-9 female ¦ 1 x HDBaseT - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, HDBaseT |
| Max Transfer Distance | 328 ft |
| Status Indicators | Power, link/activity, video, infrared |
| Features | HDCP compliant, 4K resolution support, HDBaseT technology |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 5.1 in |
| Depth | 3.5 in |
| Height | 1.2 in |
| Weight | 9.88 oz |
