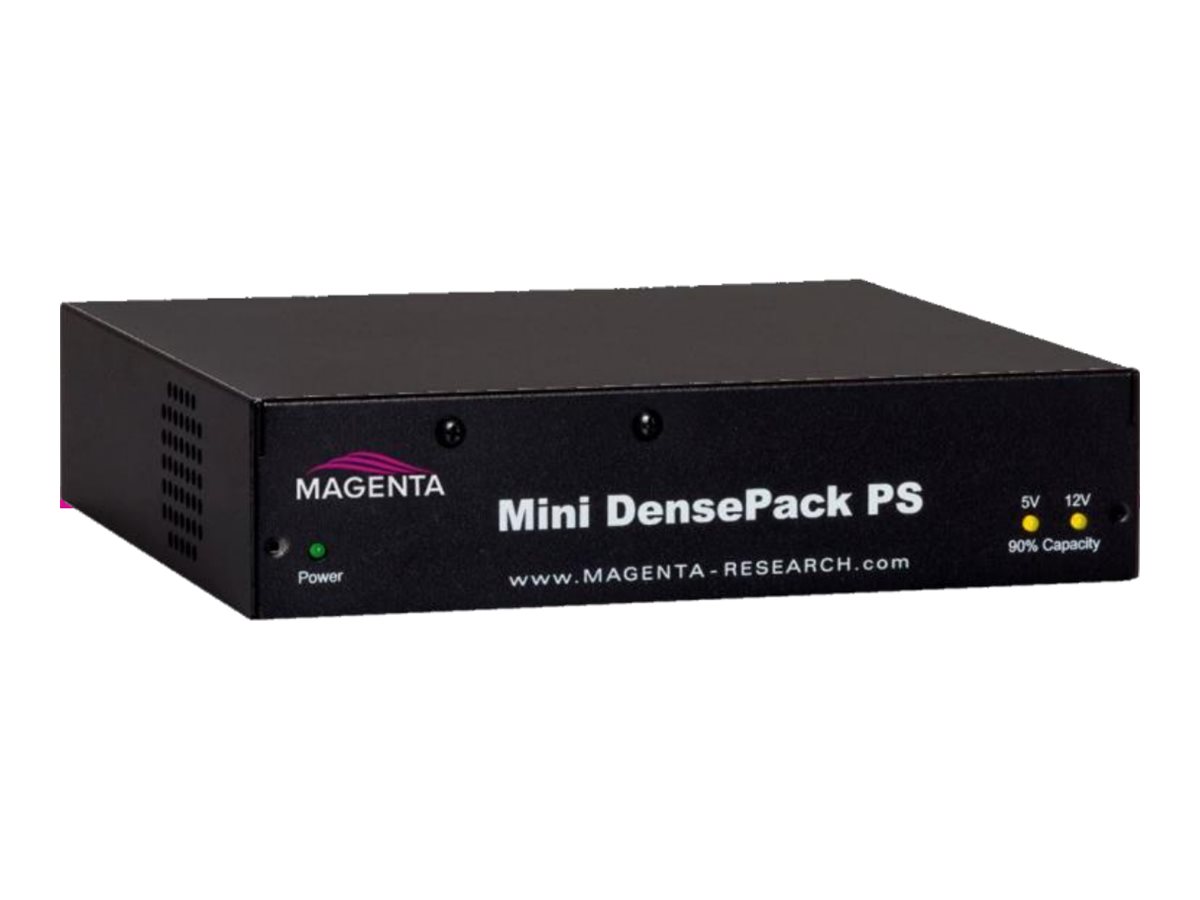

Power adapter - AC 100-240 V - 100 watt - output connectors: 6 - 1U
| Main Specifications | |
|---|---|
| Product Description | Magenta MultiView Series Mini Dense - power adapter - 100 watt |
| Device Type | Power adapter - external |
| Rack Size | 1U |
| Weight | 3 lbs |
| Input Voltage | AC 100-240 V |
| Output Voltage | DC 5 / 12 V |
| Power Capacity | 100 watt |
| Input Connectors | 1 x power IEC 60320 C14 |
| Output connectors | 6 x 3 pin Phoenix |
| Dimensions (WxDxH) | 7.2 in x 6.7 in x 1.8 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Power adapter - external |
| Height (Rack Units) | 1U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | Coax cable |
| Features | Powder-coated, steel housing, 2 fuses, LED indicators |
| Compliant Standards | FCC Class A certified, ICES-003, Directive 89/336/EEC, EMC, LVD, Directive 2006/95/EC, FCC Part 15 A, RoHS, cTUVus |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | Up to 80% (non-condensing) |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 6 x 3 pin Phoenix |
| Output Voltage | DC 5 / 12 V |
| Max Electric Current | 10 A |
| Power Capacity | 100 watt |
| Circuit Protection | Fuse |
| Dimensions & Weight | |
| Width | 7.2 in |
| Depth | 6.7 in |
| Height | 1.8 in |
| Weight | 3 lbs |
