Video/audio switch - 4 x HDMI - desktop
| Main Specifications | |
|---|---|

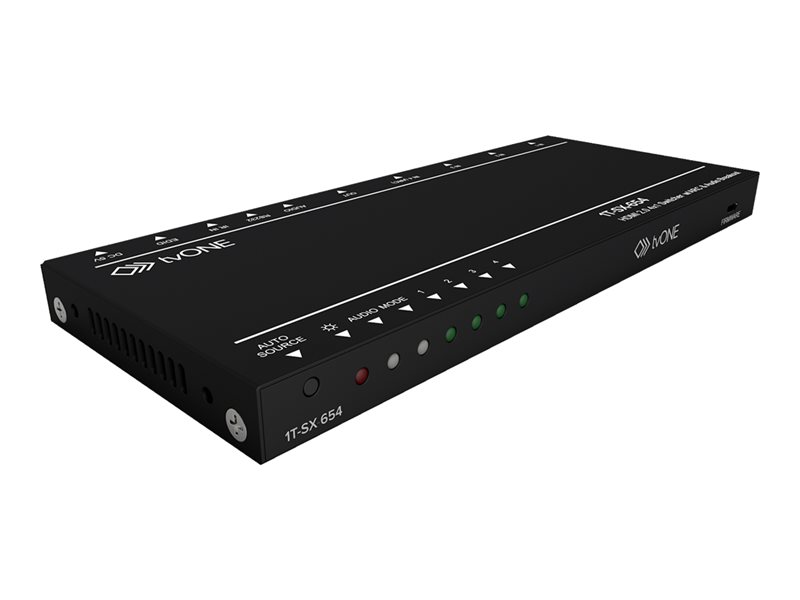

| Product Description | TV One-Task 1T-SX-654 4x1 HDMI 2.0 Switcher - video/audio switch - 4 ports |
| Device Type | Video/audio switch - 4 ports |
| Subtype | HDMI |
| Ports | 4 x HDMI |
| Performance | Bandwidth: 18 Gbps |
| Features | HDCP compliant, input selection buttons, ARC, 4K resolution support, Advanced EDID Management, built-in audio de-embedder, audio breakaway switching, HDR 4K60 4:4:4 compatible, auto-switching |
| Compliant Standards | HDCP 2.2 |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 7.6 in x 3.2 in x 0.5 in |
| Weight | 6.35 oz |
| General | |
| Device Type | Video/audio switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Ports | 4 x HDMI |
| Performance | Bandwidth: 18 Gbps |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Features | HDCP compliant, input selection buttons, ARC, 4K resolution support, Advanced EDID Management, built-in audio de-embedder, audio breakaway switching, HDR 4K60 4:4:4 compatible, auto-switching |
| Compliant Standards | HDCP 2.2 |
| Status Indicators | Port status, power, auto, operation mode, audio |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input ¦ 1 x HDMI output ¦ 1 x serial (RS-232) mini-jack management ¦ 1 x audio input mini-jack ¦ 1 x IrDA input mini-jack ¦ 1 x micro-USB output management |
| Miscellaneous | |
| Included Accessories | Remote control |
| Compliant Standards | CEC |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 7.6 in |
| Depth | 3.2 in |
| Height | 0.5 in |
| Weight | 6.35 oz |
