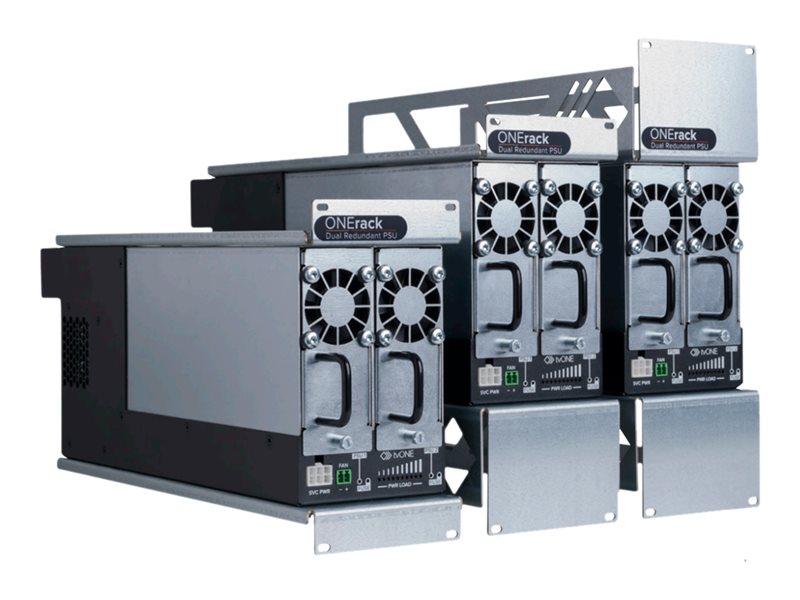

Power supply - hot-plug / redundant (rack-mountable) - AC 120/230 V - 450 Watt - 6U
| Main Specifications | |
|---|---|
| Product Description | TV One ONErack - power supply - hot-plug / redundant - 450 Watt |
| Device Type | Power supply - hot-plug / redundant - rack-mountable |
| Rack Size | 6U |
| Weight | 9.57 lbs |
| Input Voltage | AC 120/230 V |
| Output Voltage | 28 V |
| Power Capacity | 450 Watt |
| Input Connectors | 2 |
| Dimensions (WxDxH) | 3.7 in x 13.8 in x 10.4 in |
| General | |
| Device Type | Power supply - hot-plug / redundant - rack-mountable |
| Height (Rack Units) | 6U |
| Miscellaneous | |
| Compliant Standards | RoHS, UL, FCC Class A certified |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Power Device | |
| Installed Power Modules | 2 |
| Input Voltage | AC 120/230 V |
| Input Voltage Range | AC 90 - 264 V |
| Input Connectors | 2 |
| Output Voltage | 28 V |
| Power Capacity | 450 Watt |
| Dimensions & Weight | |
| Width | 3.7 in |
| Depth | 13.8 in |
| Height | 10.4 in |
| Weight | 9.57 lbs |
