Video/audio/infrared/serial extender - receiver - DM Essentials - over CATx - up to 230 ft
| Main Specifications | |
|---|---|

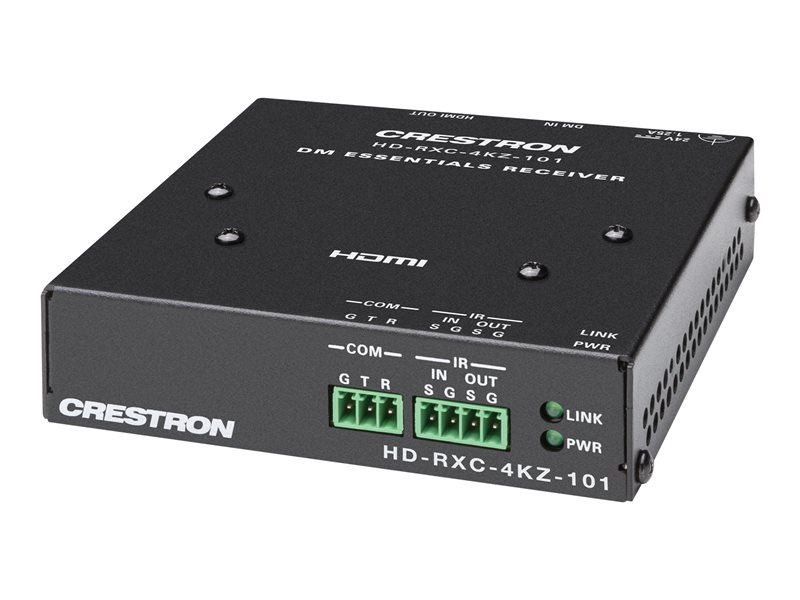

| Product Description | Crestron HD-RXC-4KZ-101 - video/audio/infrared/serial extender - DM Essentials |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | Desktop / surface-mountable / rack mountable |
| Data Link Protocol | DM Essentials |
| Transmission Medium | CATx |
| Max Transfer Distance | 230 ft |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 4.2 in x 1.1 in x 4.1 in |
| Weight | 11.82 oz |
| General | |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | Desktop / surface-mountable / rack mountable |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 1 x DM Essentials - RJ-45 female ¦ 1 x IR (input / output) - 4 pin terminal block ¦ 1 x RS-232 - 3 pin terminal block |
| Miscellaneous | |
| Included Accessories | 2 mounting brackets |
| Compliant Standards | Intertek, IC, FCC Part 15 B |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | DM Essentials |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Max Video Bandwidth | 600 MHz |
| Max Transfer Distance | 230 ft |
| Status Indicators | Link, power, HDMI output, DM input |
| Features | HDR10+ support, HDR10 support, Dolby Vision HDR support, Deep Color support, Dolby Digital support, Dolby Digital EX support, Dolby Digital Plus support, Dolby TrueHD support, Dolby Atmos support, DTS support, DTS ES support, DTS-HD support, DTS-HD Master Audio support, DTS:X support, LPCM support, EDID Pass-Through, CEC passthrough, metal housing, 4K60 8-bit 4:4:4 compatible, Point-to-Point Protocol (PPP), 8-bit Deep Color support, 12-bit Deep Color support |
| Compliant Standards | HDCP 2.3 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 4.2 in |
| Depth | 1.1 in |
| Height | 4.1 in |
| Weight | 11.82 oz |
